Product Details:
|
| Frequency Range: | High Frequency | Control: | Semi-Automatic |
|---|---|---|---|
| Electric Current: | AC | Product Name: | Ultrasonic Plastic Welder For Meterbox Welding |
| Application: | Household Appliances, Auto Part, Electronic, Stationery | Cooling Way: | Air Cooling |
| Welding Area: | Depend The Products Size | After-sales Service Provided: | Video Technical Support,Online Support |
| For Suitable Materials: | Plastics,PP PVC PE ABS Etc | Welding Time: | 0-9.99s Adjustable |
| High Light: | 15Khz 2600W Ultrasonic Plastic Welder,AC380V Ultrasonic Plastic Welder,2600W Meterbox Welding Ultrasonic Welder |
||
Ultrasonic Plastic Welding Machine for Meterbox Welding
Ultrasonic welding uses ultrasonic vibration frequency to generate heat energy from contact friction to make two plastic parts fused at the welding interface and fixed together. Ultrasonic welding is a fast, clean and effective assembly process, used to meet the high strength assembly requirements of plastic parts. It is a widely used advanced assembly technology, suitable for the assembly of various types of plastic parts. Under normal circumstances, ultrasonic welding has high tensile strength, can replace solvent adhesive and mechanical fastening assembly methods, but also can have a waterproof, moisture-proof sealing effect.

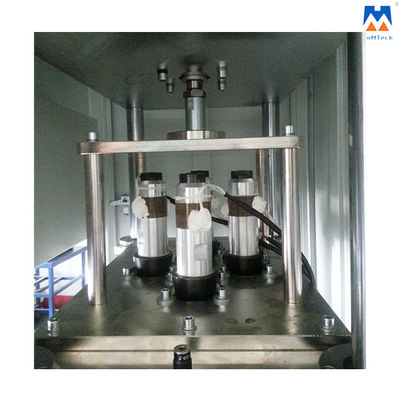

This machine is customized for meter box back case welding. We use 4-horn and 4-generator for welding the four sides of the 3-phase meter box cases. An extra welding mold is prepared to weld a single-phase meter box, which can be installed on the same machine after dismantling the 3-phase meter box welding molds.
Basic Specifications:
| Product Name: | 2600W Ultrasonic Plastic Welder |
| Ultrasonic systems : | 15Khz, 2600W |
| Control : | HMI+PLC |
| Input power : | R+S+T+N+PE AC380V |
| Input current : | 16A |
| Control power : | DC24V |
| Depth control : | cylinder |
| limitation bolt | |
| Size : | L1120mm*W8600mm*H2060mm |
| Weight : | 650KG |
Advantages:
* High-quality ultrasonic systems are used for stable and durable operation.
* A safety curtain is installed to guarantee the safety of the operator.
* The fixture goes in and out automatically to facilitate easy loading before welding and unloading after welding.
* Proved stability and durability in past years.
Application:
This machine is designed for 3-phase PVC power meter boxes. Ultrasonic Plastic Welding Machine for Meterbox Back Plate Welding.
FAQ:
1. What's the warranty of your ultrasonic welding machines?
One-year Warranty with none human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
2. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
3. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.

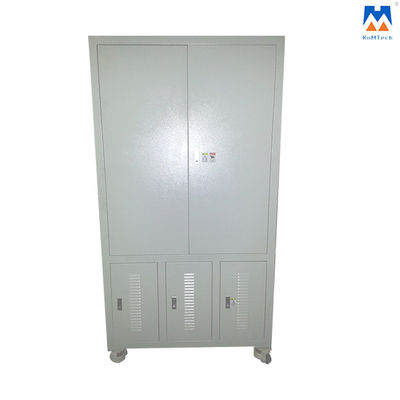

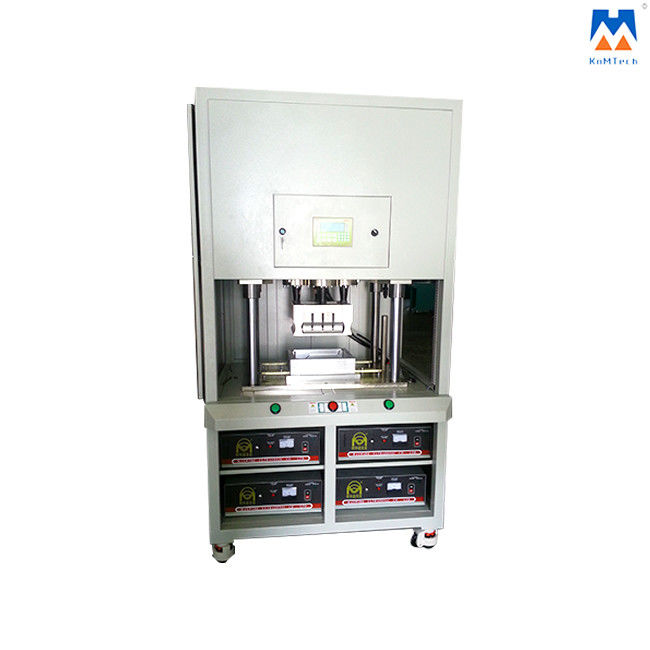

Detailed Photos:
