Product Details:
|
| Product Name: | 15KHz 2600W Digital Ultrasonic Welding Set For Plastic Welding | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Voltage: | 220V |
| Specification(L*W*H): | 400mm*195mm*98mm | Weight: | 14kg For The Whole Set |
| Electric Current: | AC | Cooling Way: | Air Cooling |
| High Light: | 20nf Transducer Ultrasonic Welding Set,2600W ultrasonic generator transducer,15KHz ultrasonic welding system |
||
15KHz 2600W Digital Ultrasonic Welding Set for Plastic Welding
The digital ultrasonic welding generator or power supply has four working modes: continuous mode, time mode, energy mode and grounding mode; The generator can automatically track the working frequency, the welding amplitude range can reach 10-100 (1% accuracy). There is also amplitude compensation to control your welding quality during welding. Powerful, excellent quality and high welding stability.
According to applications, continuous fabric welding and cutting and intermittent plastic welding are available, and different powers are available. This product has been proved in the past 3 years the best quality of China make in this industry.
Technical parameters:
Generator
| Dimension | Length 400mm×Width 195mm×Height 98mm |
| Net weight Of Main Body | 7 Kg |
| Frequency Range | 14.40-15.20KHz |
| Output Power | 2600w/3000w/4000w |
| Voltage | 220V+-10% |
| Welding Mode | Pause/Continuous Welding |
| Fuction | Real-time frequency automatic tracking function |
| Amplitude compensation | |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Welding Time | adjustable |
| Working Frequency (options) | 15KHZ |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
Transducer
| Resonant Frequency | 15KHz |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | 13-~14nf |
| Maximum Power | P:2600W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode | Pause/continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster |
| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 60mm |
| Quantity of Ceramic discs | 4 pcs |
Horn
| Dimension | Customized |
| Frequency | 15KHz |
| Net weight of main body | Customized |
| Material | steel/Aluminium Alloy/Titanium Alloy |
Flange
| Frequency | 15KHz |
| Inner Diameter | 65mm |
| External Diameter | 115mm |
| Thickness | 40mm |
| Material | Steel |
| Net weight of main body | 1.4KG |
Features:
| * Real time-frequency automatic tracking function. |
| * Welding time is adjustable |
| * Cooling time is adjustable |
| * Welding amplitude adjustable 10%-100% (1% accuracy) |
| * Amplitude compensation |
| * Welding electrode impedance analysis +protection |
| * Overload protection |
| * Voltage protection |
| * Transducer voltage protection |
| * flat and vertical types are available. |

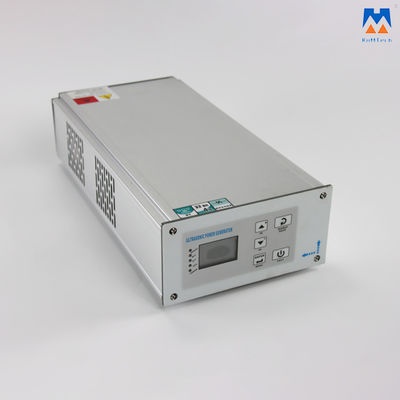

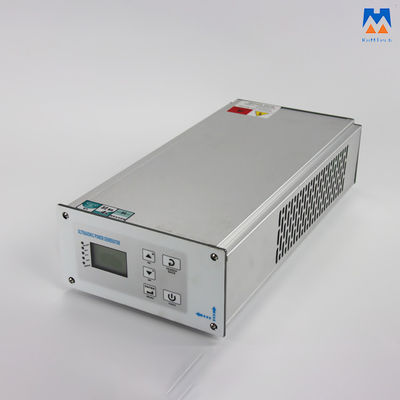

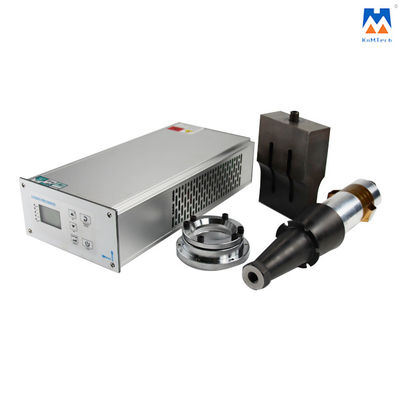

Detailed Photos:
