Product Details:
|
| Product Name: | 3000W Ultrasonic Welding Press | Frequency: | 20Khz |
|---|---|---|---|
| Air Pressure Rate[MPa: | 0.2-0.7Mpa | Welding Amplitude: | 10~100% Adjustable (1% Accuracy) |
| Welding Mode: | Time, Energy, Contact Shut-off, Absolute Depth, Relative Depth | Trigger Mode: | Delay, Pressure, Depth,Air-pressure Mode |
| Communications: | 485 Communications | Voltage: | 200-240VAC Stable Output |
| High Light: | Digital Ultrasonic Plastic Welding Machine,3000W Ultrasonic Plastic Welding Machine,Ultrasound Welder 20KHz |
||
Super Precision 20KHz 3000W Ultrasonic Plastic Welding Machine With Mutiple Functions
20KHz 3000W Ultrasonic Welding Press or Welding Machine with Multiple-Function(Super Precision)
Integrated Time, Energy, Distance control modes with multiple trigger modes and more functions in this model KM-FU2025, the upgraded version based on previous experiences in the past years, this machine can compete with internationally famous brands in quality, and the price is very much competitive compared with other famous brands in the world.
The K&M TECH has various operating modes and monitoring functions, which make it a reliable all-rounder amongst pneumatic welding machines.
Technical parameters:
| Product Name | 3000W Ultrasonic Plastic Welding Machine | |
| Frequency | 20kHz | |
| Power | 1200~3000W | |
| Work Stroke | 100mm | |
| Voltage | 200-240VAC stable output | |
| Welding amplitude | 10~100% adjustable (1% accuracy) | |
| Standardized configuration for this model | Pressure-trigger mode | |
| Standardized configuration for this model |
Depth Check (0.01mm precision) Reinforced Steel Profile for Press Structure |
|
| Linear guide blocks are used for welding movement and horn adjustment | ||
| Ports | Enough connection terminal ports for easy automation control | |
| Interface | 10-inch Human-machine interface | |
| Mode | Welding mode: | Time, Energy, Contact shut-off, Absolute Depth, Relative Depth |
| Trigger mode: | Delay, Pressure, Depth | |
| Air-pressure mode | ||
| No-fault power | ||
| 4-core 32-bit processor | ||
| 485 communications | ||
Features:
|
Function
|
Segmented amplitude |
| Shake-off function | |
| Air-pressure mode | |
| Auxiliary functions(start, end, double workstation) | |
|
Compensation
|
Amplitude compensation |
| Frequency compensation | |
|
Protection
|
Welding horn resistance analysis + protection |
| Over-load protection | |
| Voltage protection (input) | |
| Transducer voltage protection | |
| Quality control (interactive check between time, energy, absolute depth, relative depth) | |
| Welding record | |
| Date | Data collection |
| Data export | |
| Scanned data import | |
| Power curves (profiles) | |
| Speed inspection | |
| Pressure verification | |
| 10 groups of mould numbers can be selected and named freely | |
| Real-time frequency auto-tuning function | |
| Auto-switching between resistance analysis and pressure verification | |
| It features in a higher power, good quality and stable welding results. | |
Different models of this series are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 3200w | 100MM | 220V+-10% | 0.2-0.7Mpa |
| 20kHz | 3000w | 100MM | 220V+-10% | |
| 35kHz | 1200w | 100MM | 220V+-10% |
Application:
1. Automative: instrument cluster, Inner door panels, and door trims, tail lights, central console
HVAC staking ,glove boxes ,spoilers ,front /rear bumpers
2. House Appliances: refrigerator, hot plates, electric appliances
3. Novelties: plastic toys, sports accessories
4. Medica: disposables, catheters, containers
5. Computers/Electricals : housing ,connectors ,switches ,flash cards ,batteries ,charger recharger
6. Packaging: handle bag, toothpick box
FAQ:
1. What's your MOQ of the High Precision Ultrasonic Welding Machine?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. What's the warranty of your ultrasonic welding machines?
One-year Warranty with none human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
3. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
4. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
8. could you make the ultrasonic welding machine according to our special needs?
Of course, we can do that. Please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.

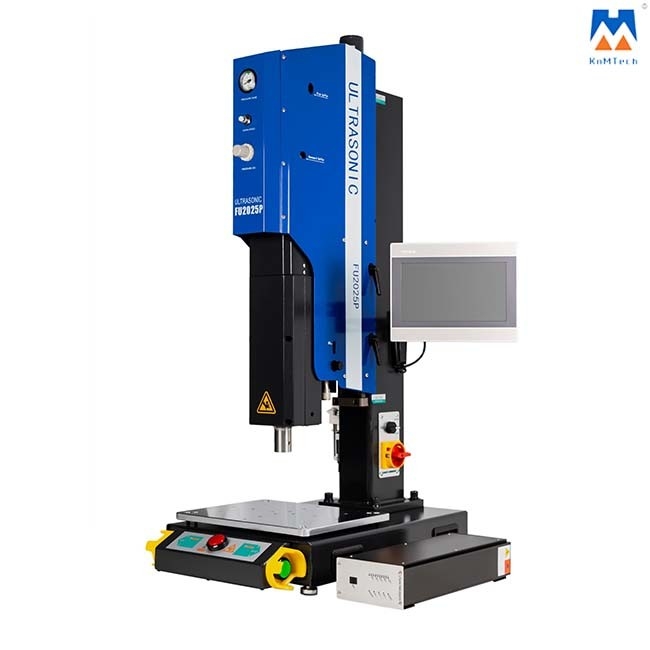

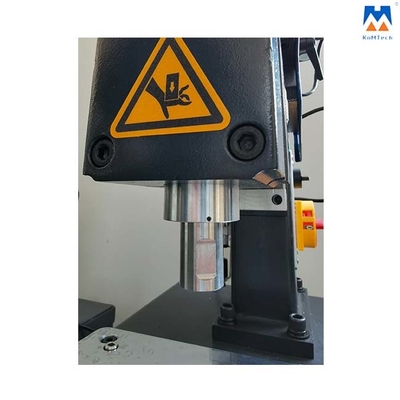

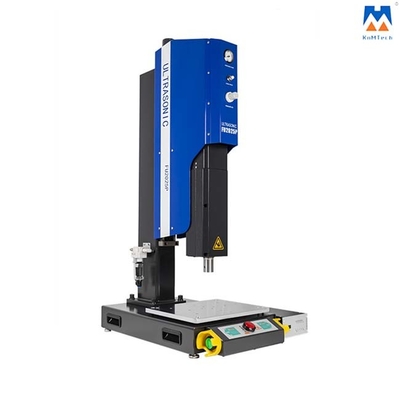

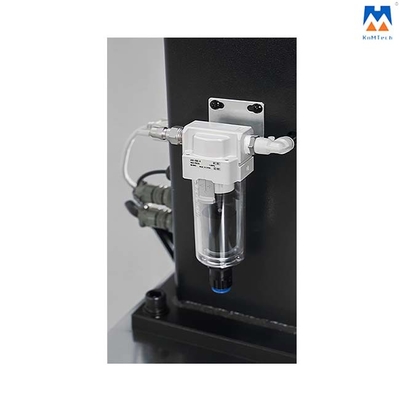

Detailed Photos:

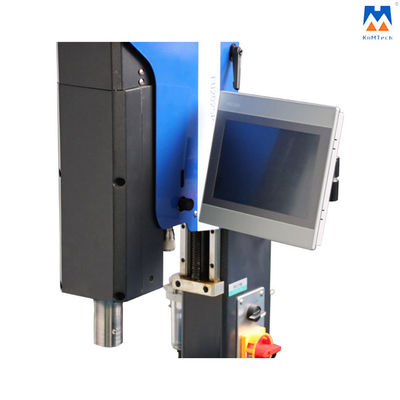

Operation Panel Display:
