Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Elding Time: | 0.1-9s Adjustable |
|---|---|---|---|
| Working Frequency: | 15KHZ/20KHZ | Power Supply Voltage: | 220V± 10V 50-60HZ |
| Input Current: | 10A | Output Power: | 1500W/2600W/3200W/4200W |
| Working Stroke: | 75cm | Welding Material: | PP/PVC/PE Or Other Plastic |
| Frequency: | 15KHz/20KHz | ||
| High Light: | 20pcs / Minute Ultrasonic Plastic Welder,80kg Ultrasonic Welding Press,Analog Type Ultrasonic Plastic Welder |
||
Standard Ultrasonic Plastic Welding Machine
The traditional products with over 20 years of history in the market, and have been improved stable quality. It is still in the market and many clients still like it because of the low price and high quality.
Technical parameters:
| Product Name | Ultrasonic Plastic Welder |
| Voltage | AC 220V 50/60HZ |
| Dimensions (WxHxD) [mm] | 600*450*980mm |
| Weight [kg] | 55kg |
| operating frequencies | 15KHZ/20KHZ |
| Welding time | 0.01-9.99s adjustable |
| Welding material | PP/PVC/PE or other plastic |
| Driven Mode | Electric & pneumatic |
| Power [W] | 1500W/2600W/3200W/4200W |
| Welding Area | diameter 75mm |
| Hold time | 0.00s-9.99s |
| Usage | plastic welding |
| Working speed | 10-200pcs/minute |
| Warranty | One year |
| Any place with an electric source, need to connect an air compressor | |
Operation mode:
Multiple welding modes are available, but the standard machine adopts Time mode.
Resonate system protection, the protection against:
1) Excessive deviation in frequency
2) Over-current
3) Over-loaded
4) Abnormal temperature
In the generator, the electrical circuit system can effectively avoid malfunction. During the operation, thus having enhanced the welding precision and reduced reject rate.
Mechanical structure: Round guiding column is adopted in this machine, which decreases the reject rate of the welding.
FAQ:
1. What's the warranty of your ultrasonic plastic welders?
One-year Warranty with no human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
2. Can we agent your ultrasonic plastic welders in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
3. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
4. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
5.Can I add my logo to the ultrasonic welding machine?
Yes, OEM is available for us, please send us the artwork.

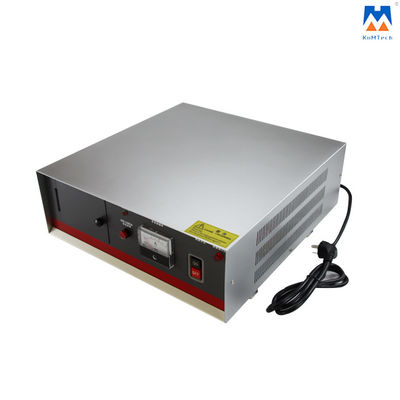

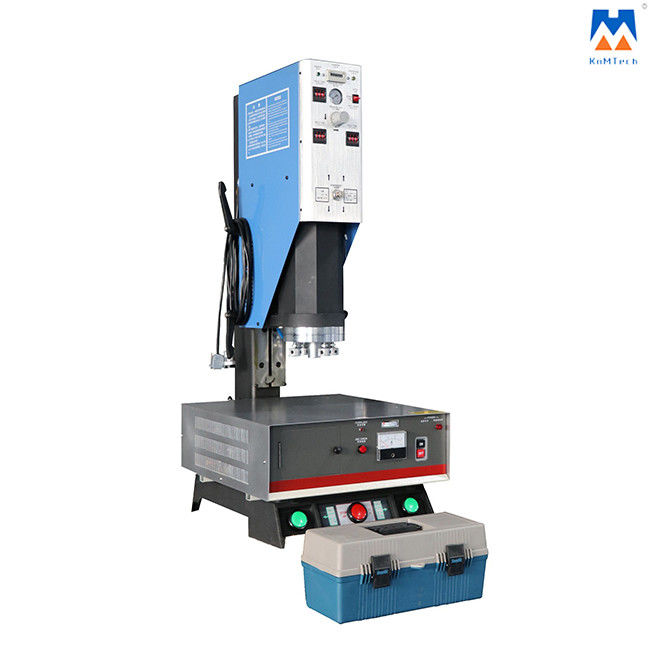

Detailed Photos:
