Product Details:
|
| Product Name: | Plastic Welding Machine For Filter Bag Welding | Power Supply Voltage: | 220V± 10V 50-60HZ |
|---|---|---|---|
| Input Current: | 10A | Output Power: | 1500W--2600W |
| Max. Pressure: | 145kgf(7kgf/cm2) | Air Source: | Purified Air With Particle Diameter |
| Working Stroke: | 75cm | Weight: | 55kg |
| Hold Time: | 0.00s-9.99s | Working Frequency: | 15KHZ/20KHZ |
| High Light: | 55kg Ultrasonic Welding Machines,20KHZ Ultrasonic Welding Machines,Analog ultrasonic plastic welding machine |
||

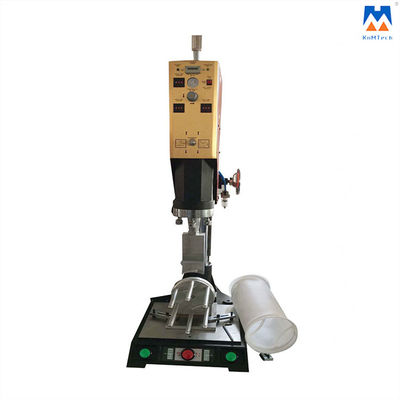

Analog Type Plastic Welding Machine For Filter Bag Welding
The ultrasonic welding machine has the advantages of simple operation process, no pollution, fast speed, cost-saving, and so on. It completely replaces the traditional glue bonding method as soon as it appears. It has been favored and praised by plastic processing enterprises and has become the best choice for plastic welding with overwhelming advantages.
Ultrasonic Plastic Welding Machine :
* Fast, the welding is usually done in less than a second
* Cleaning. The risk of contamination is greatly reduced due to the absence of flux, thus improving the product grade.
* Eliminate the cost caused by the use of flux, low scrap rate, and repeatable processing;
* Ultrasonic welding equipment is suitable for mass production and automated production environment
Technical parameters:
| Product Name: | 20KHZ Filter Bag Ultrasonic Welding Machines |
| Power supply voltage: | 220V± 10V 50-60HZ |
| Input current: | 10A |
| Output power: | 1500W--2600WDelay time, weld time and 5μm, 7kgf/cm2 |
| Max. Pressure: | 145kgf(7kgf/cm2) |
| Working stroke: | 75cm |
| Weight: | 55kg |
| Hold time | 0.00s-9.99s |
| Working frequency | 15KHZ/20KHZ |
| Air source | Purified air with a particle diameter of less than |
| Voltage | Power supply adaptability |
| When the power supply voltage fluctuates within the range of ± 10%, the amplitude deviation of this machine will not excess 5um due to its unique design in the electrical circuit, which makes a more stable weld. | |
Features:
| Multiple welding modes are available, but the standard machine adopts Time mode. |
| Resonate system protection: |
| The protection against:1) Excessive deviation in frequency 2) Over-current 3)Over-loaded 4) Abnormal temperature in the generator |
| The electrical circuit system can effectively avoid the malfunction |
| During the operation, thus having enhanced the welding |
| Precision and reduced the reject rate. |
| Mechanical structure: Round guiding column is adopted in this machine, which Decreased the reject rate of the welding. |
Operation mode:
(1) Multiple welding modes are available, but the standard machine adopts Time mode.
Resonate system protection.
(2) The protection against:1) Excessive deviation in frequency 2) Over-current 3)Over-loaded 4) Abnormal temperature in the generator.
(3) The electrical circuit system can effectively avoid malfunction.
(4) During the operation, thus having enhanced the welding.
(5) Precision and reduced the reject rate.
(6) Mechanical structure: Round guiding column is adopted in this machine, which Decreased the reject rate of the welding.
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 8 days, while, 15-25 days for large order and customized production lines.
1-2 units we could send by EXPRESS(DHL, UPS, FedEx, TNT, EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welding machines?
One-year Warranty with none human damage.
4. How do I know your machine can weld my products?
A: our company set up a special ultrasonic mold manufacturing sector. General buying machine process is: send a product sample and the 3D drawings, we can help to make the mold, make the good product sample, sample sent to the customer, confirm OK, then send the machine to you ( the mold can be installed for small products first).
5. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.

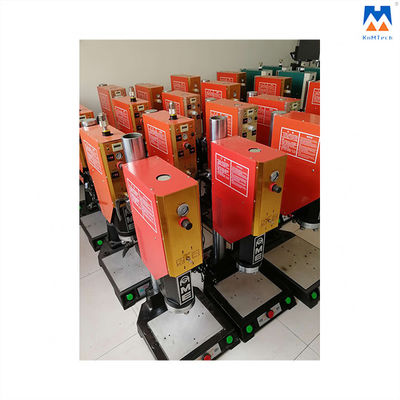

Detailed Photos:
