Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine 35KHz | Frequency: | 35KHz,15KHz,20KHz,30KHz,40KHz Available |
|---|---|---|---|
| Power: | 1200W,3000W,2000W,1500W,1200W,800W Available | Welding Method: | Weld Time/Weld Energy/Grounding Detect |
| Air Pressure Control: | Proportional Valve | Operating Air Method: | Standard |
| Max Working Stroke(mm): | 80mm±1mm | Max Welding Time: | 5 Seconds |
| High Light: | Ultrasonic Plastic Welding Machine 35KHz,35KHz Ultrasonic PP Welding Machine,Plastic 35khz Ultrasonic Welding Machine |
||
Ultrasonic Plastic Welding Machine 35KHz High Precision For Plastic Welding ABS PP PVC PETG

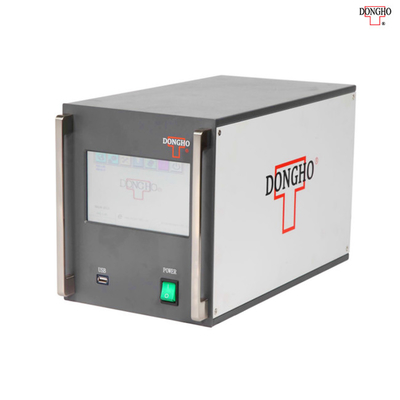

The iBA series ultrasonic welding machine is the high precision plastic welder, which is equipped with a digital ultrasonic generator, and controller. The ultrasonic generator can be set with many welding modes, with multi-level password protection for hierarchical authorization. Each welder is with Dongho-certified Proportion Valve technology. The iBA series is also installed with accurate guide rails and mature driving components to its rigid machine to ensure high-quality and repetitive welding.
Technical Specification:
| Model | iBA-F1530e | iBA-F2020e | iBA-F2025e | iBA-F3015e | iBA-F3512e | iBA-F4008e |
| Specification | ||||||
| Frequency | 15KHz | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 3000W | 2000W | 2500W | 1500W | 1200W | 800W |
| Triggering Method | Time | |||||
| Welding Method | Weld time/Weld energy/Grounding detect | |||||
| Air pressure control | proportional valve | |||||
| Operating air method | Standard | |||||
| Amplitude control | Single-stage amplitude | |||||
| Pre-press vibration | 1) OFF, 2) pre-vibration time | |||||
| Max Working Stroke(mm) | 80mm±1mm | |||||
| Max Welding Time | 5 seconds | |||||
| Voltage(V) | AC220V±5% 50/60Hz | |||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection
|
|||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | ||||
| Weight(kg) | 106kg | 75kg | ||||
Features:

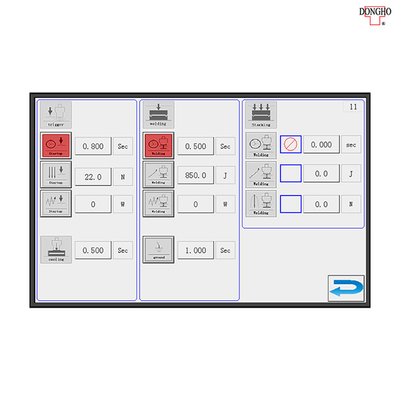

The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
New type electronic pressure-measuring device
Welding parameters saving in USB, QA quality diagnosis, and control
Digital amplitude setting and amplitude segmentation
Clearance offset function, and double-feedback control structure
PropControl (Proportion Valve Technology)
UTC220 high-speed control for enhancement of track precision, real-time data application with MES system
Fully digital and auto-tuning functions with saving function
A built-in scanning gun port ( supporting four brands) is equipped for data acquisition.
Advantages of Ultrasonic Welder for Plastic Welding:
The ultrasonic welding machine is widely used in medical, electronics, electrical appliances, consumables, auto parts, office supplies, and toy industries on a variety of plastic products. Due to the influence of the plastic bonding process of too many factors, there are many complex plastic products that can not be formed at a time, but also need plastic bonding and thermal bonding process. However, the efficiency of the process itself is low, some of which also need to add adhesive, resulting in ugly welding products, low bonding fastness, but also easy to produce environmental pollution and other problems. But the use of ultrasonic welding machines will not appear this problem, ultrasonic welding can not only improve production efficiency, with low cost but also improve product quality and production safety.

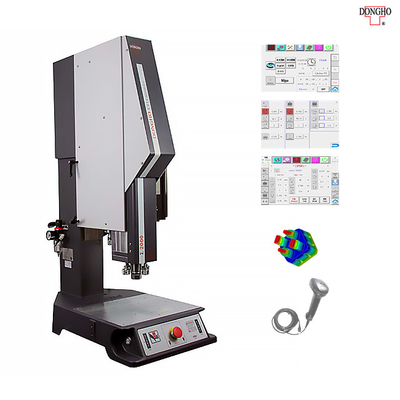

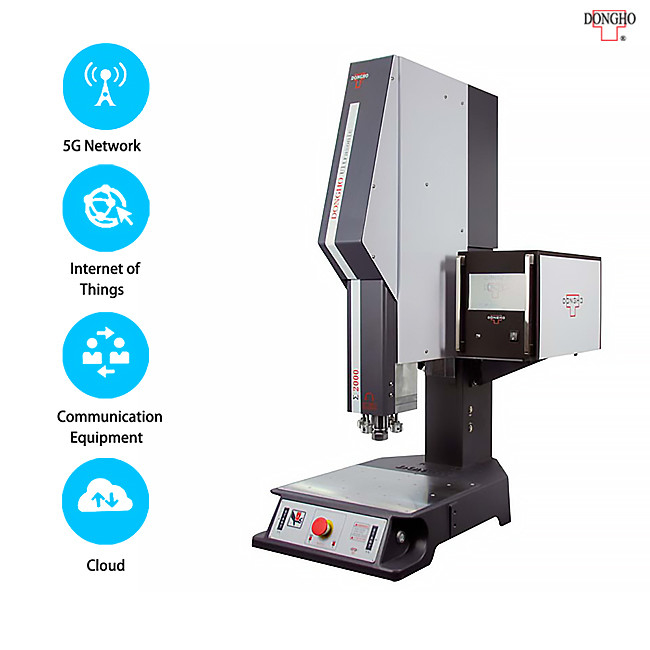

Detailed Photos:
