Product Details:
|
| Product Name: | Air Filtration Board Hot Plate Welder | Voltage: | 380V 50/60HZ 3-Phrase |
|---|---|---|---|
| Air Pressure Flow: | 110L/MIN | Power: | 10KW |
| Usage: | Plastic Hot Plate Welding Device | After-sales Service Provided: | Video Technical Support,Online Support |
| Weight: | 950kg | Warranty: | 1 Year |
| High Light: | 10KW Hot Plate Welding Machine,110L/MIN Hot Plate Welding Machine,950KG Hot Plate Welder |
||

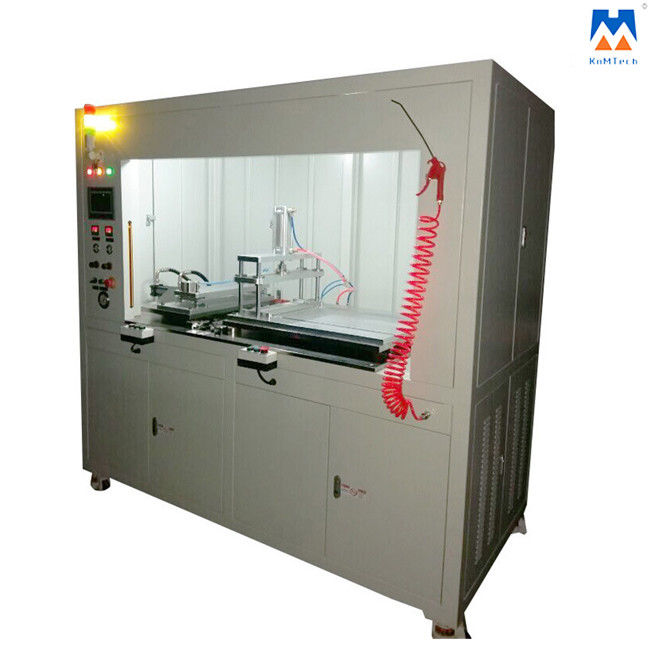

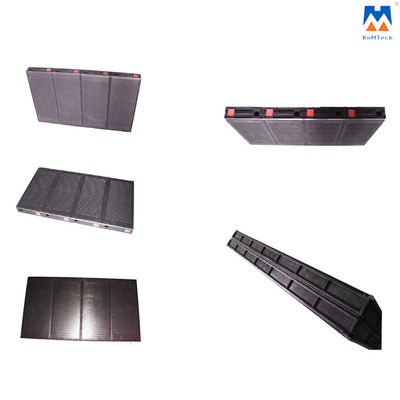

This machine is designed to join the two parts of the air filter board with hot plate electrical heating method. It is hydraulic controlled for the big sized air filter plate welding movement.
Machine Sketch:
Structure Design:
Machine Structure
Machine Dimension(L)1200×(W)800×(H)1500(MM) (for reference)
It is top quality steel welded construction.
Its color is sprayed per to the customer's requirements.
Hot mould unit
It is consisted of hot plate, hot molds, heating pipes, thermo-couple and hot plate holder.
The work principle is an up-and-down lift.
The mould unit is consisted of left-and-right hot molds and standard holder. They are connected by fine adjustment screws. The hot molds are copper or aluminium alloy.
Electronic control parts
| S/N | Part Name | Part Brand |
| 1 | PLC | Siemens |
| 2 | Touch screen 5.7 | Siemens |
| 3 | contacts | Siemens |
| 4 | Temperature controller | Omron |
| 5 | Safety curtains | Shanghai Sensor |
| 6 | relay | Weldmuller (German brand) |
| 7 | Press button switch | Izumi |
| 8 | Solid state relay | Shimanden |
| S/N | Part name | Part brand |
| 1 | Cylinder | Festo |
| 2 | Solenoid valve | Festo |
| 3 | Filter cup | Festo |
| S/N | Part Name | Part brand |
| 2 | Fuel pump | YuciYuken |
| 3 | Motor | YuciYuken |
| 4 | Hydraulic Cylinder | YuciYuken |
| 5 | Solenoid valve | YuciYuken |
| 6 | Flood valve | YuciYuken |
| 7 | Speed regulation valve | YuciYuken |
| 8 | One-way valve for hydraulic control | YuciYuken |
| 9 | One-way valve | YuciYuken |
| 10 | Cooler | YuciYuken |
| 11 | Hydraulic fittings | SKON |
| 13 | Oil tank | KNM |
| S/N | Part Name | Part Brand |
| 1 | Linear guider | Hiwin |
| 2 | Linear block | Hiwin |
| 3 | Linear bearing | Hiwin |
| 4 | Guide rod | Hiwin |
| S/N | Part name | Material | Process unit |
| 1 | mould holder | 45# steel | KNM |
| 2 | cold mould | 6061 aluminium | KNM |
| 3 | hot mould | steel H13 | KNM |
| 4 | Guide rod, guide cover, stop limit | Mould Steel | KNM |
Mechanical parts
| S/N | Part name | Part brand |
| 1 | Mainframe | Top quality steel square tube Made in China |
| 2 | covering | high-class cold-rolled sheets |
| 3 | Supporting parts | High-quality steel made in China |
| 4 | motion parts | High-quality steel made in China |
Machine Parameters
| Dimension: | (L)1200×(W)800×(H)1500(MM) |
| Weight: | 950kg |
| Machine power: | 10KW |
| Pressure: | 380V 50/60HZ 3-Phrase |
| Air pressure flow: | 110L/MIN |
| Electric parts: | PLC & Touch screen display in Chinese |
