Product Details:
|
| Product Name: | Hot Plate Welding Machine | Power: | 3000W |
|---|---|---|---|
| Power Supply: | 380V 50HZ | Temperature Scope: | Room Temperature ~ 400ºC |
| Welding Speed: | 2pcs/min | Filter Fixture: | 6061 Aluminum Sheet (anodized With Original Color) |
| After-sales Service Provided: | Video Technical Support,Online Support | Air Pressure: | 0.2-0.6MPa Adjustable |
| Heating Mode: | Electric Heating Tubes | ||
| High Light: | 2pcs/ min Hot Plate Welder,0.6MPa hot plate welding equipment,3000W Hot Plate Welder |
||
Pleated Water Filter Core End Cap Hot Plate Welding Machine
This machine is designed for welding the end caps of the pleated microporous membrane filters, one of the machines in the pleated filter production line. It is hot plate-type welding for the two caps on the two ends of the filter. After welding, the filter will have very good water-tightness.
The function of the hot plate welder:
1. It is a pleated microporous membrane filter connector welder, one of the machines in the production line for pleated filters.
2. It is used to weld the connectors/spears on both ends of the filter, and after welding, the filter gets good water-tightness.
3. Normally there are triangle connectors, fin connectors,s 222 sealing ring type connectors, 226 sealing ring type connectors, etc.
4. This machine can be used to weld two kinds of connectors at the same time to increase productivity.
| Touch screen +PLC: | Delta from Taiwan |
| Electrical components: | LG from Korea |
| Temperature controller: | Omron from Japan |
| Solid-state relay: | Shimaden from Japan |
| Guide rail, guide block: | Hiwin from Taiwan |
| Auxiliary electrical components: | IDEC from Taiwan or Schneider |
| Pneumatic components: | Airtac from Taiwan |
| Protection case: | Europe standard aluminum profile+transparent organic glass |
| Spare parts: | 45# steel (nickel plated) |
| Filter fixture: | 6061 aluminum sheet (anodized with original color) |
Our History:
K&M Technologies Ltd has been in the ultrasonic welding business since 2009.especially in ultrasonic plastic welding, ultrasonic non-woven fabric sealing, and cutting, hot plate welding, water filter production lines........ We have the best sources for the design of the equipment based on over 10 years experience of the main staff in this industry. We, as the one-stop solution provider, are working closely with new technology R&D staff and mould designers, aiming at providing timely and qualified services to our precious clients around the world.
Welcome to contact us, we are looking forward to doing business with you.

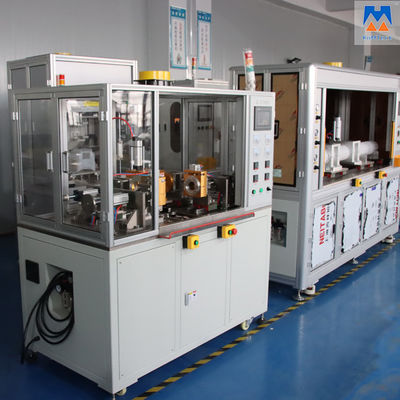

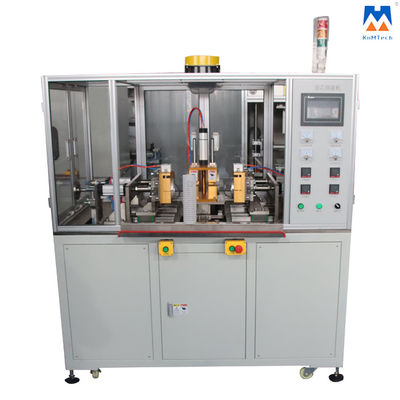

Detailed Photos:
