Product Details:
|
| Product Name: | High Frequency Ultraound Plastic Welder | Frequency: | 15KHz |
|---|---|---|---|
| Power: | 2600W | Welding Stroke: | 75mm |
| Cooling Way: | Air Cooling | Working Voltage: | 220V ± 10%/0.2-0.7Mpa |
| High Light: | 15KHz Ultrasound Plastic Welder,2600W Ultrasound Plastic Welder,Ultrasound Plastic Welder High Efficiency |
||

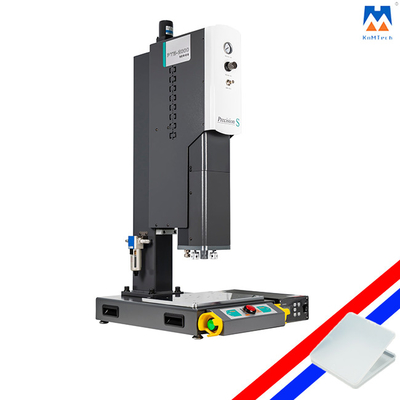

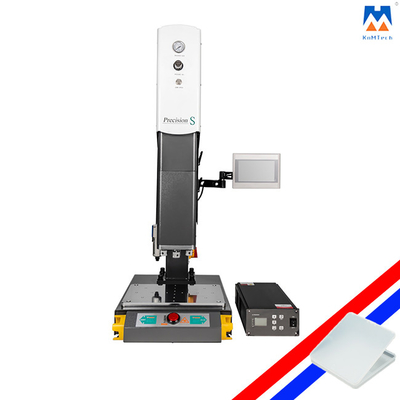

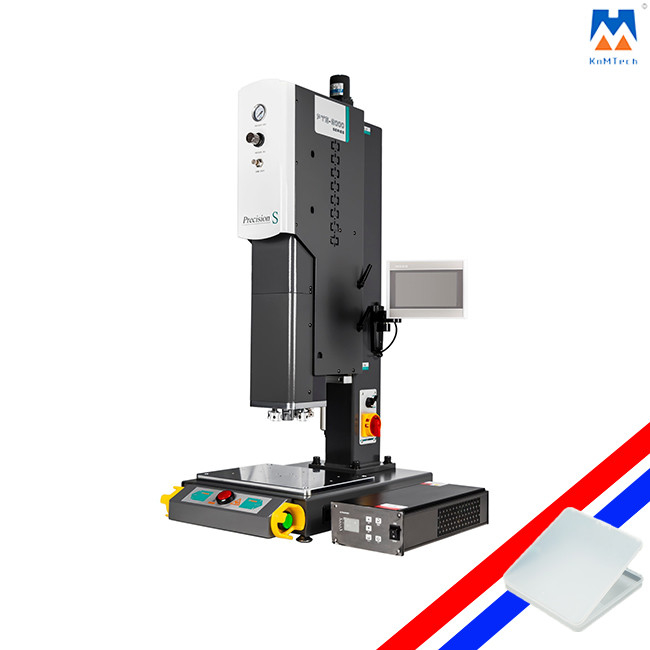

15KHz 2600W Ultrasound Plastic Welder High Efficiency For Plastic Boxes
Ultrasonic welding machines need to be adjusted to meet the diverse needs of customers according to their different applications. Our PTS2000 series ultrasonic plastic welder is designed with a variety of precision control systems:welding balancing system, horizontal adjustment system, linear slide rail lifting system, micrometer positioning system, mechanical pressure sensors, etc.
Applicable welding materials are: stryrene acrylic,acetal resin,cellulose,polyphenylene oxide,polystyrene ethanol PS,polysulfone,polyester resin,polypropylene acrylic acid,etc.
| Product Name | 15KHz 2600W Ultrasound Plastic Welder PTS2000 |
|
Voltage |
AC 220V 50/60HZ |
|
Dimensions (WxHxD) [mm] |
420*680*1260 |
|
Weight [kg] |
<=100KG |
|
Welding head operating stroke [mm] |
75mm |
|
Air pressure rate[MPa] |
0.2-0.7MPa |
|
Processor |
4-core, 32-bit processor |
|
Time Mode |
0.001-9.999 Seconds |
|
Welding amplitude |
10%-100% adjustable(1% accuracy) |
|
Welding mode |
Time, Energy, Grounding |
|
Energy Mode |
Integrated |
|
Temperature |
-10ºC--40ºC |
Features:
|
Linear guide rail block for up and down of the ultrasonic welding machine |
|
Real-time frequency auto-tuning function |
|
Welding mode: Time, Energy, grounding |
|
Amplitude can be segmented. |
|
Welding amplitude: 10%-100%adjustable(1% accuracy) |
|
200V-240V stable output amplitude compensation function |
|
Welding horn impedance analysis+protection function |
|
Over-load protection Voltage protection(input) |
|
Transducer voltage protection |
|
QC(time and energy, mutual check) |
|
Welding records(operation calculation) |
|
No fake power for the machine |
|
4-core, 32-bit processor |
|
485 communication |
