3200W ultrasonic transducer with converter and booster low impedance

3200W ultrasonic transducer with converter and booster low impedance
3200W ultrasonic transducer with converter and booster low impedance 3200W ultrasonic transducer with converter and booster low impedance 3200W ultrasonic transducer with converter and booster low impedance 3200W ultrasonic transducer with converter and booster low impedance

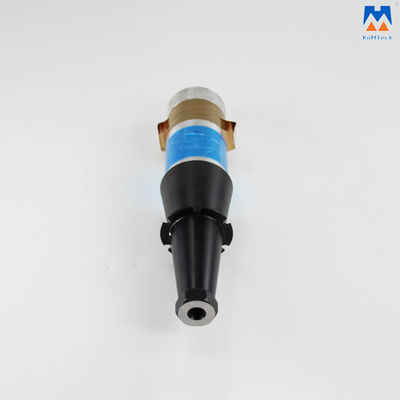

Large Image :  3200W ultrasonic transducer with converter and booster low impedance

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-CGT1532
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/Month

3200W ultrasonic transducer with converter and booster low impedance

Description
Product Name: 15KHz 3200W Ultrasonic Transducer Ultrasonic Plastic Welding Transducer Frequency: 15KHz
Input Power: 3200W Ultrasonic Timer: 0.01-9.99 Seconds
Weight: 8kg Warranty: 1 Year
High Light:

15KHz High Frequency Piezoelectric Transducer

,

3200W Ultrasonic Welding Converter

,

8kg ultrasonic piezo transducer



3200W ultrasonic transducer with converter and booster low impedance



ultrasonic transducer, also called ultrasonic vibrator, is a device that converts electrical energy to mechanical energy by the piezoelectric effect of piezoelectric ceramics. In the process of ultrasonic welding in various applications, the matching between each ultrasonic unit is extremely important, the unit such as ultrasonic generator, transducer, welding horn to form a complete ultrasonic system which can be referred to as a match.



Frequency matching between the ultrasonic transducer and generator is one factor that affects the welding performance. First of all, because the ultrasonic transducer can only work at its own resonant frequency, so the ultrasonic generator, booster and the mold (welding head) should all work at this frequency. In general, this difference is no more than ±0.1kHz, the smaller, the better. It is strongly recommended that the frequency of the supporting welding head be lower than the transducer's frequency about 0.1KHz(small-signal frequency). That is to say, if the frequency measured by the small signal of the original transducer is 14.85KHz, then the ideal frequency after connecting to the welding head is 14.75KHz. At the same time, it should be taken into account that after the transducer is connected to the welding horn, the resonant frequency summit of the system should become very sharp, that is, the bandwidth is very narrow, while the mechanical quality factor is very large, a small shift in frequency can cause a large increase in impedance, which could lead to the ultrasonic generator's overload protection or broken ceramics, etc. Therefore, the importance of frequency matches can not be over-emphasized.







Technical parameters:



Product Name: 3200W High-Frequency Piezoelectric Transducer
Resonant Frequency: 15KHz
Maximum Amplitude: This parameter is related to the power of the transducer, the shape of the horn, and the tool head;
Working Mode: continuous working or pause working.
Humidity Of Working Environment: relative humidity ≤85% (non-condensing)
Working Environment Temperature: -10 ~ 60 ºC
Material: aluminum alloy, stainless steel, and titanium alloy can be customized according to user requirements.
Dimensions: It depends on the customer's application environment and actual needs.
Weight: 8kg





FAQ:



Q: What is the structure of the PZT transducer?
A: The transducer consists of a housing, a matching layer, a piezoceramic disc transducer, a backing, an outgoing cable, and a Cymbal array receiver.

Q: What is the lifetime of the transducer?
A: General speaking, it depends on the quality of the transducer. All of our transducers are highly processed and adopt superior PZT ceramics. The lifetime will be more than 5years.

Q: What are 1/2-20UNF means?
A: It is a kind of American thread code, 1/2 means 1/2 inch of the diameter, and 20 means there are 20 threads per inch.



Q: Do you have a parameter sheet for every transducer you ship?

A: Yes, we do, each transducer we supply comes with a specific parameter sheet and its own serial no.



Detailed Photos:

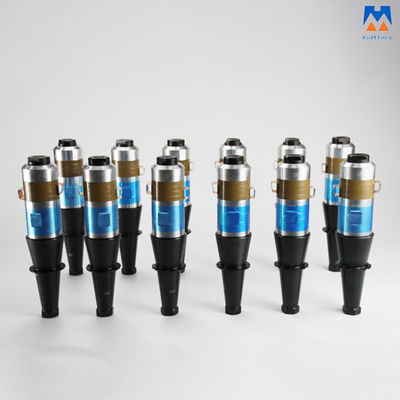

3200W ultrasonic transducer with converter and booster low impedance 0

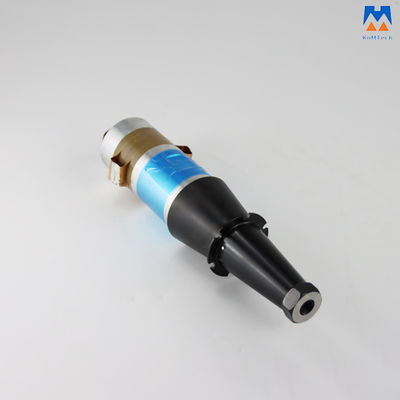

3200W ultrasonic transducer with converter and booster low impedance 1

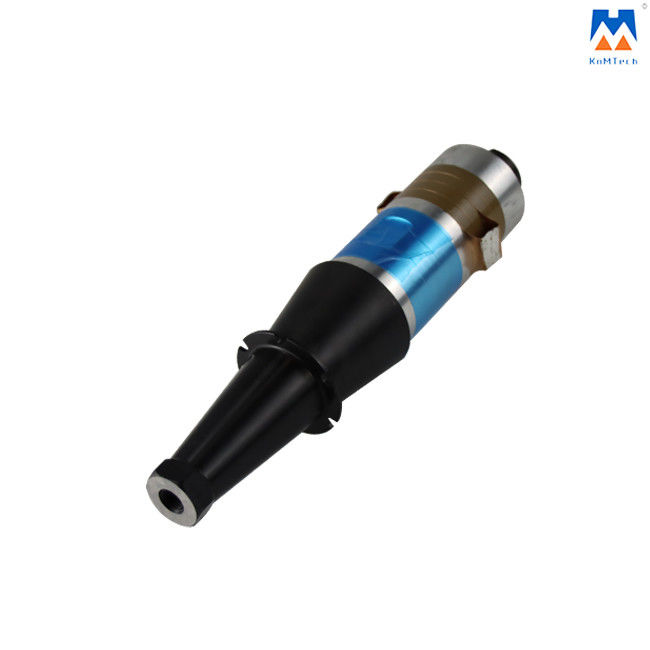

3200W ultrasonic transducer with converter and booster low impedance 2
