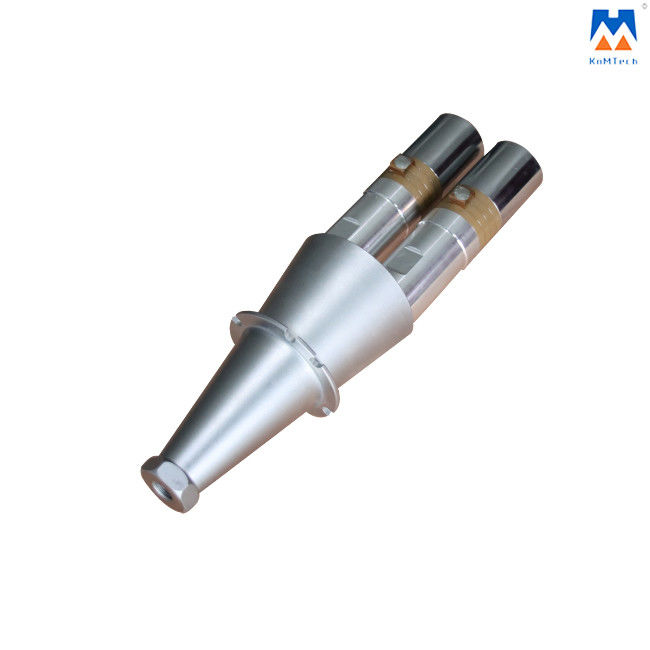

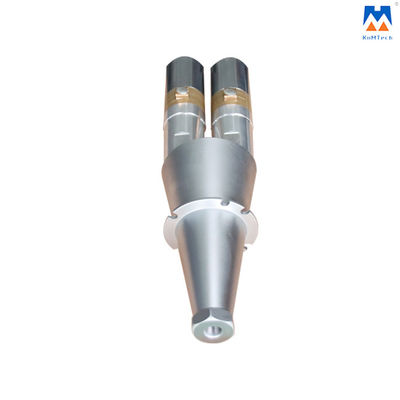

3200W ultrasonic transducer dual vibrator for plastic welding

3200W ultrasonic transducer dual vibrator for plastic welding
3200W ultrasonic transducer dual vibrator for plastic welding 3200W ultrasonic transducer dual vibrator for plastic welding 3200W ultrasonic transducer dual vibrator for plastic welding

Large Image :  3200W ultrasonic transducer dual vibrator for plastic welding

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-QD1532C
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 3000sets/Month

3200W ultrasonic transducer dual vibrator for plastic welding

Description
Product Name: 15Khz Ultrasonic Transducer Frequency: 15KHz
Input Power: 3200W Material: Steel
Qty Of Ceramic: 8 Color: Sliver
Usage: Plastic Welding,match Welding Machine After-sales Service Provided: Video Technical Support
High Light:

Stainless Steel 15Khz Ultrasonic Transducer

,

3200W 15Khz Ultrasonic Transducer

,

3.2KW Ultrasonic Welding Converter

3200W ultrasonic transducer dual vibrator for plastic welding



Ultrasonic transducer transfers the industrial electricity coming out from the ultrasonic generator into mechanical vibration via the inverse piezoelectric effect, the mechanical vibration is then boosted again by the welding horn, adding some pressure by the machine, the vibration will act on the working pieces of plastics.



During the use of the ultrasonic transducer, there are some problematic occasions that might appear, see the corresponding solutions as well as below:



1 If the ultrasonic transducer gets wet, check its connector first with the megameter, the insulation resistance value could basically judge the situation of the transducer. Insulation resistance is generally required to be more than 5 megohms, If this value is not reached, the transducer is generally in a damp situation. Put the whole transducer (except the plastic housing) into the oven and dry it for three hours at the temperature of 100 degrees centigrade or use a hairdryer to blow off the water until the impedance value reaches the normal status.



2. Ultrasonic transducer broken or burnt, under this situation, it is normally suggested to replace a new one or ask help from the professional ultrasonic supplier for repairment.



3.The transducer is degummed. Our transducer adopts the high-quality gel with our professional workers, so this rarely happens.



4.Stainless steel vibration surface perforation, which generally appears in a situation that a transducer has been used in full load for more than 10 years.







Technical parameters:



Product Name: 3200W 15KHz Ultrasonic Transducer
Original: China
High efficiency low consumption
Qty of ceramic 8
Frequency 15KHz
Output Power 3200W
Color Metal color
Application Welding Machine
Amplitude 50-60um
Capacitance 19-21NF







Features:


1. Low calorific value
2. Large output power
3. Small resonance impedance
4. Long working hours
5. High conversion efficiency





FAQ:





1. Do you have it in stock?

Yes, we have this kind of transducer in stock, it is regular size, for customized products, it will normally take longer time
2. What is your payment method?
T/T or Paypal with 100% prepayment. In some special cases, we accept L/C also.
3. Can we agent your transducers in our country or city?
Of course. We welcome customers all over the world for such cooperation.
4. What is your terms of delivery
EXW, FOB, CFR, CIF

5. What is your MOQ?

We do not limit the quantity, it is up to you.




Detailed Photos:

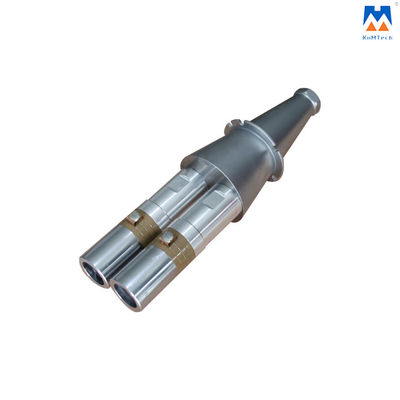

3200W ultrasonic transducer dual vibrator for plastic welding 0
