Product Details:
|
| Product Name: | Welding Horn With 77mm Diameter | Frequency: | 20KHz |
|---|---|---|---|
| Diameter: | 77mm | Material: | Stainless Steel |
| Weight: | 2.5kg | Usage: | Non Woven Fabric Welding,Ultrasonic Welding |
| High Light: | 20KHz Ultrasonic Welding Horn,77mm Ultrasonic Welding Horn,2.5kg Ultrasonic Tooling |
||
20KHz Ultrasonic Welding Horn With 77mm Diameter For Fabric Welding Machine
Ultrasonic lace machine welding horn is a general term for all ultrasonic transmitting ends, which is used to couple the ultrasonic wave generated by the ultrasonic welding transducer to the processed object. Because it transmits ultrasonic waves, the welding horn must also work in the resonant state, that is, the welding horn's natural resonant frequency must match the transducer vibrator. Secondly, the amplitude should be uniform, and the end face shape of the welding horn should adapt to the shape of the welding object.
Ultrasonic lace machine welding horn/mold working characteristics:
The frequency range of ultrasonic lace machine welding horn/mold: 15KHz - 100KHz
Material of Ultrasonic lace machine welding horn/mold: alloy steel, aluminum alloy, titanium alloy, stainless steel.
The hardness of welding horn of ultrasonic lace machine: HRC62° maximum
Working medium: solid, liquid, liquid metal, etc.
Ultrasonic lace machine welding horn/mold surface treatment: blackening, polishing, chrome plating.
This is the standard ultrasonic horn 20KHz is used for lace sewing machines with super hardness and super wear resistance.
Technical parameters:
| Product Name | 20KHz Ultrasonic Welding Horn |
| Voltage | 220V 50Hz |
| Diameter | 77mm |
| Welding Area | 0~77mm |
| Weight | 3.5kg |
| Function | for ultrasonic welding, sealing |
| Color | Metal Color |
| Usage | Ultrasonic Horn Sonotrode |
The main parameters for the horn's quality judgment:
1. amplitude,
2. frequency,
3. head nodes,
4. material
Our services:
1. Reliable Production Line
Our production line is stable and trustworthy.
2. Well-experienced R&D Engineer
If you have any technical questions, please don't hesitate to contact us.
3. Efficient Working Team
We have a mature, efficient, and well-cooperated team.
4. Competitive Price
We promise to give our clients the most competitive price
5. Constantly Updated Products
New products will be launched from time to time, According to the development schedule
6. Customized Product Service
If you have other customized requirements, please communicate with us for further details.

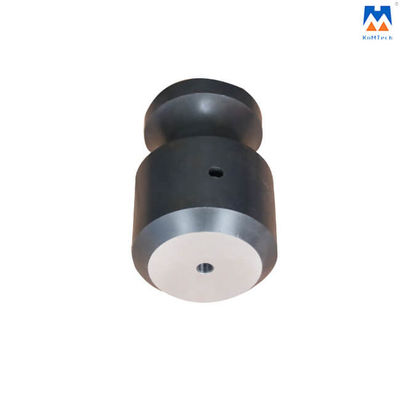

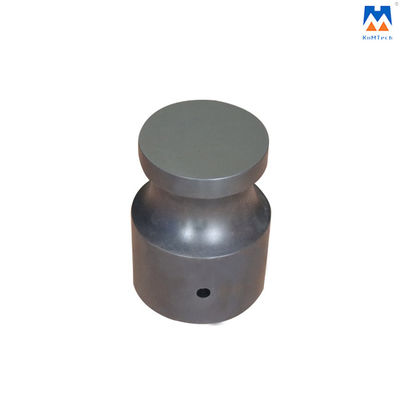

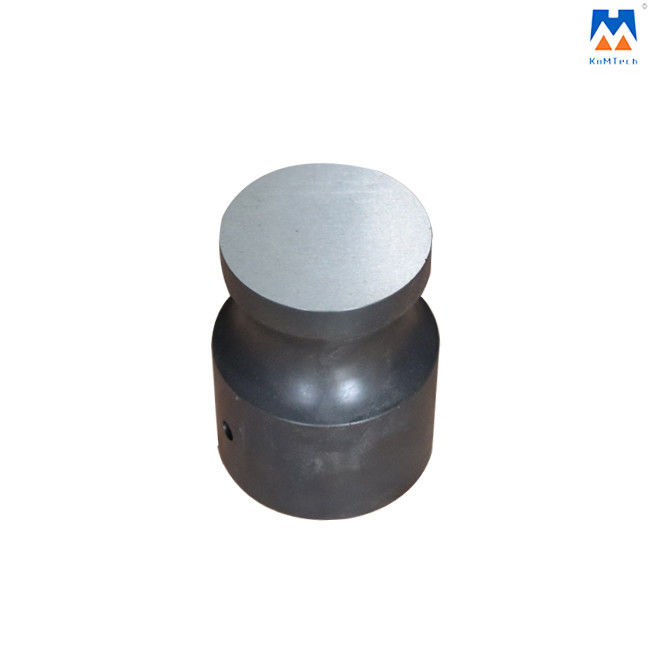

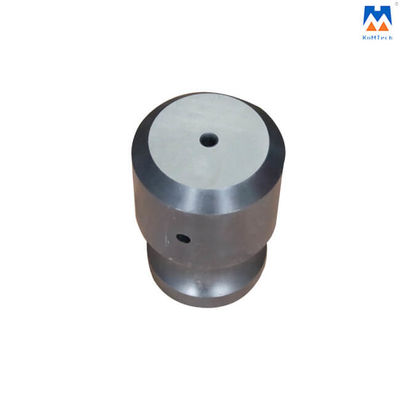

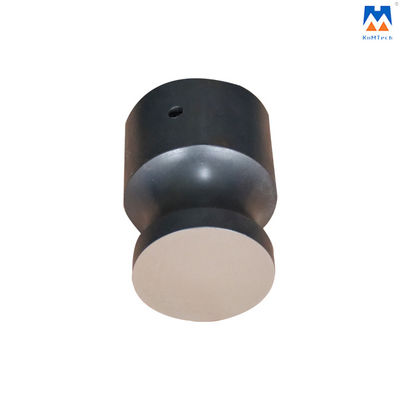

Detailed Photos:
