3600W ultrasonic converter for plastic welding great power

3600W ultrasonic converter for plastic welding great power
3600W ultrasonic converter for plastic welding great power 3600W ultrasonic converter for plastic welding great power

Large Image :  3600W ultrasonic converter for plastic welding great power

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-QDC15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/Month

3600W ultrasonic converter for plastic welding great power

Description
Product Name: High Power Ultrasonic Converter Power: 3600W
Frequency Range(khz): 14.7-14.9 Keyword: Ultrasonic Welding Machine
Resistance Range(Ω): <20 Transducer Shape: Inverted Horn
Material Of Booster: Steel Condition: New
Weight: 1.5KG Usage: Plastic Welding,match Welding Machine
High Light:

Inverted Horn Ultrasonic Welding Converter

,

3600W Ultrasonic Welding Converter

,

KnMTech Ultrasonic Converter





3600W ultrasonic converter for plastic welding great power



Ultrasonic welding is a kind of solid-phase welding method. The connection between the weldments is realized by the high-frequency elastic vibration of the acoustic system and the clamping action of the static pressure between the workpieces. Among them, the ultrasonic generator is a frequency conversion device, which changes the power frequency current into the oscillating current of the ultrasonic frequency, and the converter relies on the "piezoelectric effect" to convert the ultrasonic frequency electric energy fed by the generator into mechanical vibration energy.



The ultrasonic transducer transforms the ultrasonic frequency high-power oscillation signal into the corresponding frequency mechanical energy, which is applied to the interface of the workpiece to be welded so that the workpiece meets the instantaneous heat generation, then the particles in the workpiece are activated and melted into each other to finish the welding.



The performance of the converter is designed and realized during production, and the ultimate goal of design is to meet the requirements of the welding machine to the greatest extent under the working environment. Specifically speaking, the converter gets the best signal waveform at the working frequency point with relatively high and stable amplitude.







Technical parameters:





Product Name 15KHz Ultrasonic Welding Converter
Power 3600W
Frequency range(khz) 14.7-14.9
Resistance range(Ω) <20
Ceramic Color yellow ceramic
grey ceramic
black ceramic
Transducer shape inverted horn
Material of booster steel





Features:



1. Strong and stable output: the piezoelectric ceramic chip adopts imported parts;

2. High efficiency, high mechanical quality factor: obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.

3. Large amplitude: optimization design by computer, vibration speed ratio is high.

4. Large power: Under the action of the prestressed screw, the energy of the piezoelectric ceramic to get maximum play;

5. Good heat resistance, small harmonic impedance,  the converter uses a wide range temperature.





FAQ:


1. How about payment?
100% prepayment by T/T or Payal
2. Do you provide samples?
Yes, we could offer the sample but at a cost.
3. How long shall I receive my goods after payment?
Usually, the delivery time is 3-7 days for regular products, for bigger quantities and customized products, it takes a longer time.
4. How should I trust you?

We have been in the ultrasonic business since 2015, and we are a verified gold supplier on Made in China since 2018, we are trustworthy.





Detailed Photos:

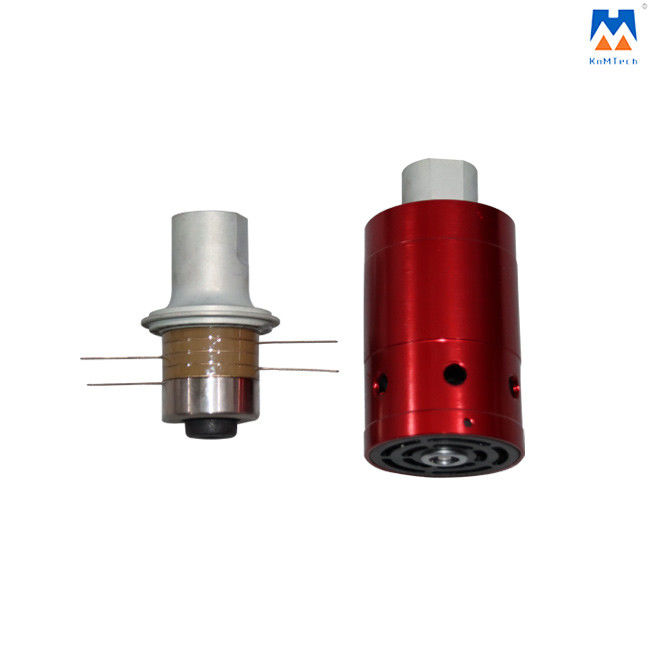

3600W ultrasonic converter for plastic welding great power 0

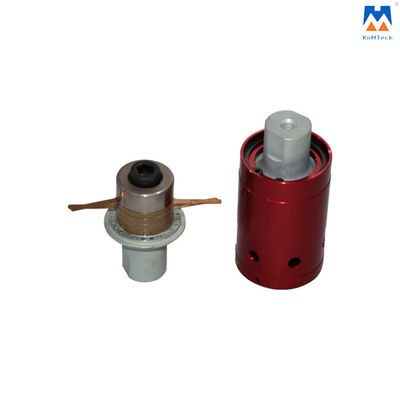

3600W ultrasonic converter for plastic welding great power 1
