Product Details:
|
| Product Name: | 20KHz 1:2 Ultrasonic Welding Boosters | Frequency: | 20KHz |
|---|---|---|---|
| Machine Type: | Ultrasonic Welding Booster | Voltage: | 220V 50Hz |
| Weight: | 1.5kg | Usage: | Booster For Ultrasonic Welding Machine |
| Operating Temperature: | -10ºC;~+500ºC; | ||
| High Light: | 20KHz Ultrasonic Boosters,20KHz Ultrasonic Welding Boosters,2kg Titanium Ultrasonic Boosters |
||
20KHz 1:2 Ultrasonic Welding Boosters
What is the ultrasonic booster?
Ultrasonic booster is a key part in the ultrasonic welding system, which is a one-half-wave length long resonant section made of aluminum or titanium.
How does the ultrasonic booster work?
To provide an amplitude change, the ultrasonic booster will have different diameters on either side of its center. A smaller diameter at the end attached to the horns means the ultrasonic amplitude increase. the ultrasonic booster will help enlarge the ultrasonic vibration amplitude and amplify the welding power during the vibration.
Technical parameters:
| Product Name | 20KHz 1:2 Ultrasonic Welding Boosters |
| Voltage | 220V 50Hz |
| Frequency | 20KHz |
| Material | Aluminum /Titanium |
| Booster gain | 1:2 |
| Screw size | 3/8 |
| Operating Temperature | -10ºC;~+500ºC; |
| Usage | Ultrasonic Welding Machine |
| Weight | 1.5kg |
Features:
1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

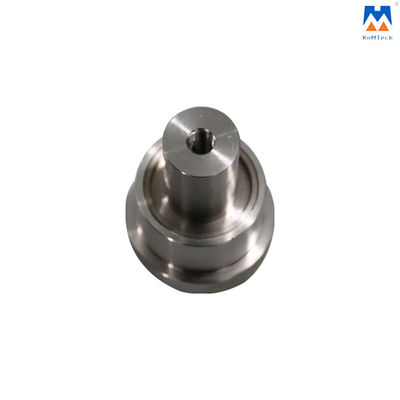

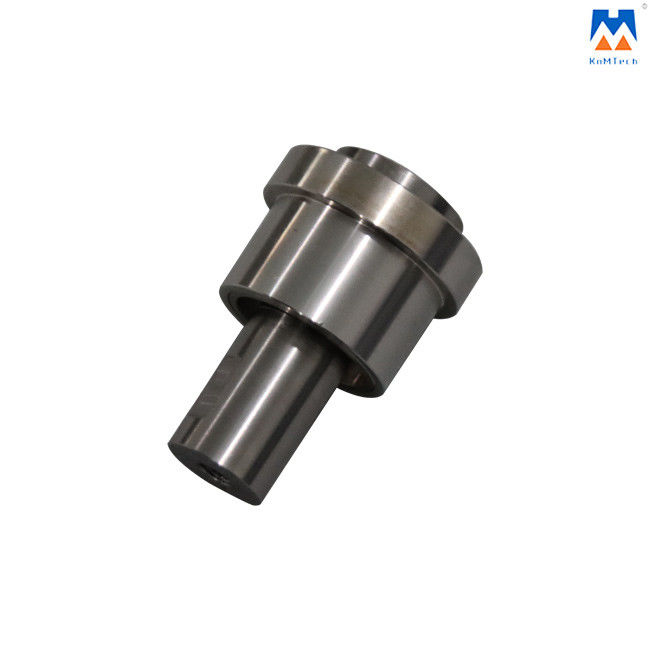

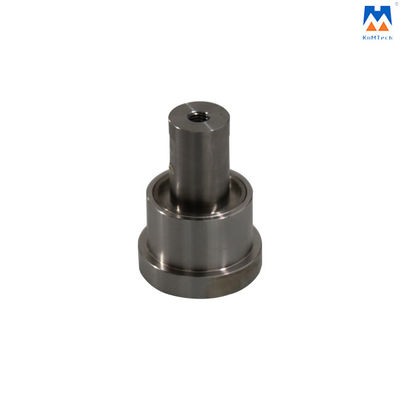

Detailed Photos:
