Product Details:
|
| Product Name: | Generator Box For Ultrasonic Cleaning Machine | Frequency: | 40Khz |
|---|---|---|---|
| Output Power: | 1500W | Dimension(mm): | 300 X 360 X 150 |
| Condition: | New | Hscode: | 8543909000 |
| Weight: | 5kg | Uasge: | For Ultrasonc Cleaning System |
| High Light: | Ultrasonic Piezoelectric Generator,Piezoelectric Generator 40kHz,piezoelectric ultrasonic generator 1500w |
||
40kHz 1500W Digital Ultrasonic Power Supply for Ultrasonic Cleaning Machine
An ultrasonic generator is a kind of equipment that converts the city electricity to the transducer with a high-frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. It can also be called the electronic box, the ultrasonic driving power supply, and the ultrasonic controller.
With more than 10 years of research and application experience, we explored this microprocessor-controlled, newly designed generator, especially for ultrasonic cleaning.
There are many elements that will affect generator current, at the high frequency working, choose the right frequency, and adjust the inductance core air gap, the generator's current working at the arrange.
Technical parameters:
| Dimension(L*W*H) | 300 x 360 x 150 |
| Time control | 0-59 minutes 59 seconds |
| Working volt | 220V 10% |
| Working current | 5.5A |
| Relative humidity | 40%--90% |
| Working frequency | 40KHz(28KHz,80 KHz,135KHz, etc)5% |
| Environment temperature | 0-40C° |
| Range of power control | 0-100% digital control and adjustment of 16 grades |
| Internal overtemperature protection | 65 C° |
| Attention | the appliance can not stay above the maximal current long time. |
Features:
1. Frequency display and adjusting
2. Current Display
3. Power adjusting
3. Remote control connector /PLC connecting
4. Output Power plug
5. High-frequency connector or CE connector (US, EU, or standard type)
Muti-Frequency Ultrasonic Generators Can be Provided :
| TYPE | POWER | FREQUENCY | SIZE |
| KM-28/40 | 300W-1200W | 28KHZ/40KHZ | 300x360x150 |
| KM-40/68 | 300W-1500W | 40KHZ/68KHZ | 300x360x150 |
| KM-38/80 | 300W-1200W | 38KHZ/80KHZ | 300x360x150 |
| KM-40/100 | 300W-1200W | 40KHZ/100KHZ | 300x360x150 |
| KM-40/130 | 300W-1200W | 40KHZ/130KHZ | 300x360x150 |
| KM-20/40/60 | 300W-1200W | 20KHz/40KHz/60KHz | 300x360x150 |
| KM-28/40/80 | 300W-1200W | 28KHz/40KHz/80KHz | 300x360x150 |
| KM-28/40/120 | 300W-1200W | 28KHz/40KHz/120KHz | 300x360x150 |
| KM-33/80/135 | 300W-1200W | 33KHz/80KHz/135KHz | 300x360x150 |
| KM-40/80/100 | 300W-1200W | 40KHz/80KHz/100KHz | 300x360x150 |
| KM-40/80/130 | 300W-1200W | 40KHz/80KHz/130KHz | 300x360x150 |
| KM-40/100/160 | 300W-1200W | 40KHz/100KHz/160KHz | 300x360x150 |
| KM-44/77/100 | 300W-1200W | 44K/Hz77KHz/100KHz | 300x360x150 |
| KM-40/77/100/170 | 300W-1200W | 40KHz/77KHz/100KHz/170KHz | 300x360x150 |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 7 days, while, 15-25 days for large orders and customized production line.
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS), heavyweight more than 50kg, we suggest to use sea freight LCL or by air
3. What's the warranty of your ultrasonic welding generators?
One year Warranty with none human damage.
In this period factory will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After the warranty time, the factory will repair it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your ultrasonic generators in our country or city?
Of course. We are looking for sole agents who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance before shipment.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it's not free.
8. Could you make it according to our special requirements?
Of course, please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.

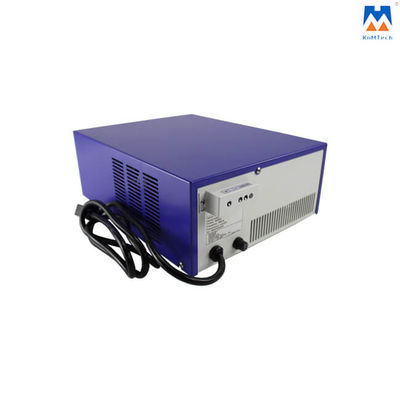

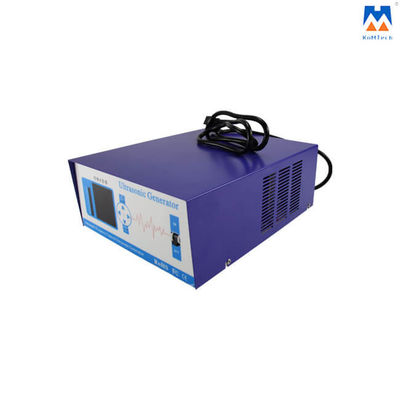

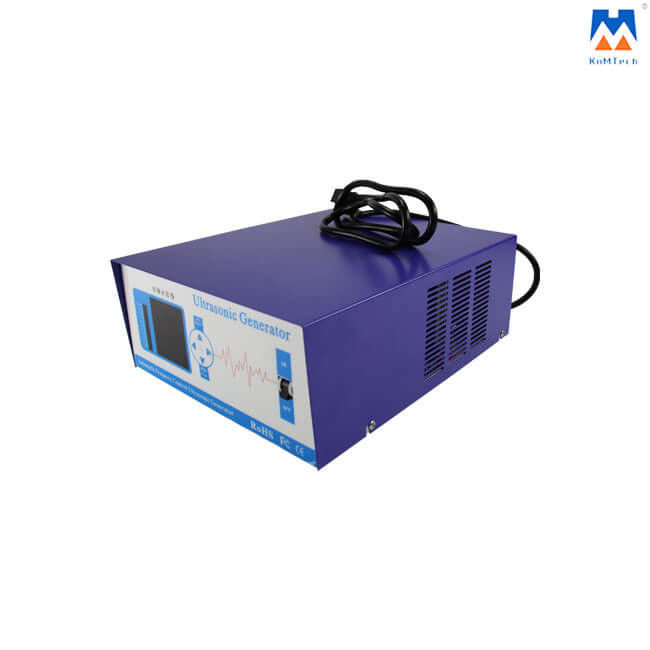

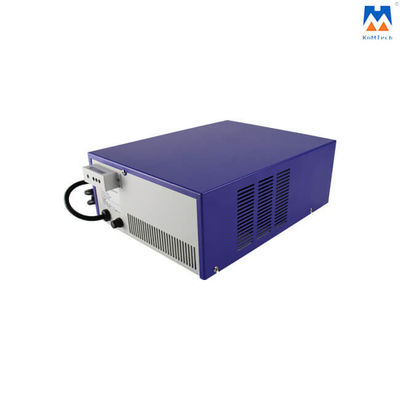

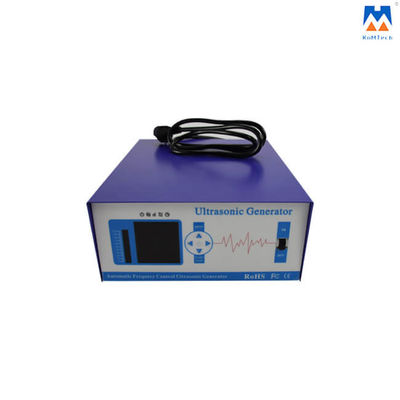

Detailed Photos:
