Product Details:
|
| Product Name: | 15KHz Standard Ultrasonic Plastic Welder | Output Power: | 4200W |
|---|---|---|---|
| Operating Frequency: | 15KHz | Working Stroke: | 100mm |
| Welding Time: | 0.01-9.99 SEC | Welding Area: | OD 150 Mm~350 Mm |
| High Light: | Ultrasonic Plastic Welding Machine 15KHz,Ultrasonic Plastic Welding Machine 4200W,4200 Watt Ultrasonic Welding Machine |
||
15KHz Standard Stable Performance Ultrasonic Welding Machine for Plastic Parts Welding
Ultrasonic welding is the use of ultrasonic vibration frequency, contact friction to produce heat energy and make two plastic parts in the welding interface fusion and fixed together. Ultrasonic welding is a fast, clean and effective assembly process, used to meet the requirements of high strength assembly of plastic parts, is a widely used advanced assembly technology, suitable for the assembly of various types of plastic parts. Under normal circumstances, ultrasonic welding parts have high tensile strength, can replace solvent adhesive and mechanical fastening, and other assembly methods, but also can have a waterproof, moisture-proof sealing effect.
The high-power ultrasonic welder is with stable performance and is suitable for welding large-sized products or multiple units products, which is quick, precise, and effective in welding.
Technical Parameters:
| Model: | KM-ME-P1542 |
| Output power: | 4200W |
| Operating frequency: | 15KHz |
| Working stroke: | 100mm |
| Welding time: | 0.01-9.99 SEC |
| Welding area: | OD 150 mm~350 mm |
| Weight: | 290 kg net |
| Working voltage: | 220 10V |
Features:
Micro-tuning, cylinder, and vibrator are three-in-one linear drives. Motor control for machine head movement, precise scale and mechanical stop device are equipped. A square steel pillar instead of a cylindrical tube makes more precise welding.

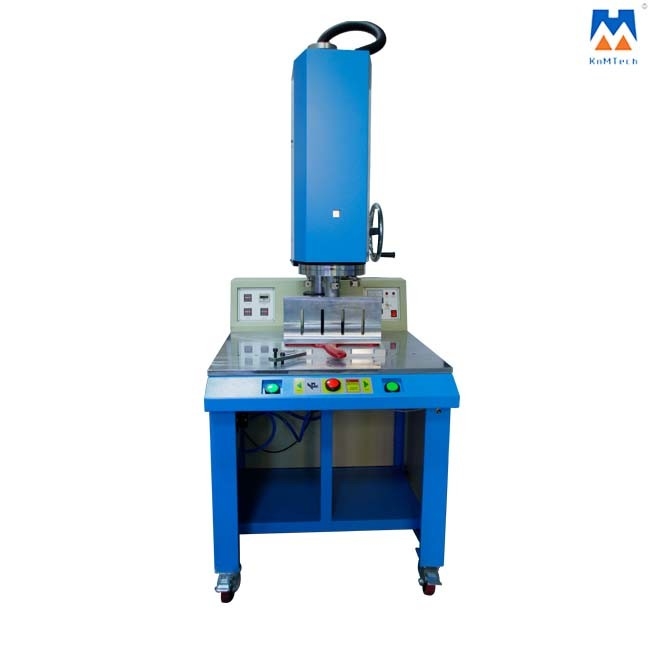

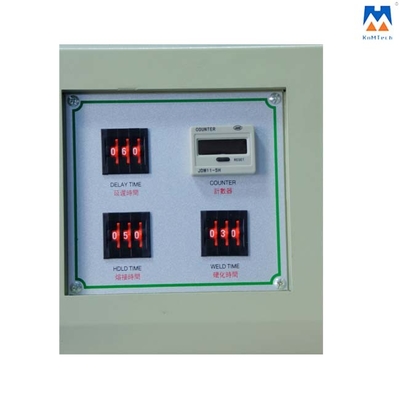

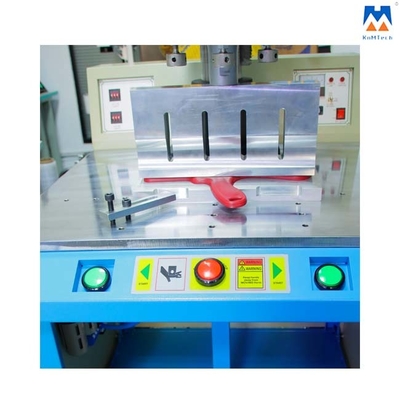

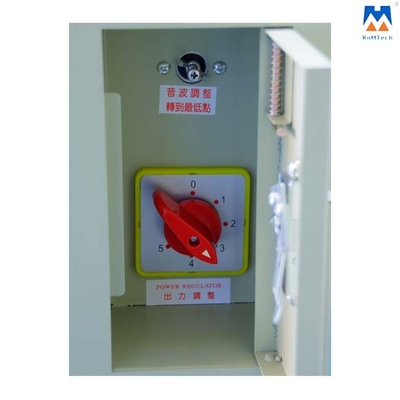

Detailed Photos:
