Product Details:
|
| Product Name: | 4200W 15kHz Ultrasonic Transducer | Frequency: | 15KHz |
|---|---|---|---|
| Input Power: | 4200W | Material: | Steel |
| Qty Of Ceramic: | 8 | Color: | Sliver |
| Usage: | Plastic Welding,match Welding Machine | After-sales Service Provided: | Video Technical Support |
| High Light: | Dual Vibrator Piezoelectric Transducer,15kHz Piezoelectric Transducer,4200W Ultrasonic Welding Transducer |
||
4200W ultrasonic transducer dual vibrator Piezoelectric ceramics high power
In the development and manufacture of ultrasonic converters, we strive for the highest quality and safety standards.
Technical parameters:
| Product Name: | 4200W 15KHz Dual Ultrasonic Transducer |
| Original: | China |
| high efficiency | low consumption |
| Qty of ceramic | 8 |
| Frequency | 15KHz |
| Output Power | 4200W |
| Color | Sliver |
| Application | Welding Machine |
The ultrasonic transducer is an energy conversion device, its function is to convert the input electrical power into mechanical power (namely ultrasonic) and then transfer it out, in the meanwhile, it only consumes a very small part of the power (less than 10%). Therefore, the most important thing to consider when using an ultrasonic transducer is to make sure that the input and output devices are well matched. The next thing to consider is its mechanical installation and size to the machine.
Due to the different processing methods and requirements, the working model of the transducer can be roughly divided into continuous work (lace machine, CD cover machine, zipper machine, metal welding, etc.) and pulse work (such as plastic welding machine). Different working modes have different requirements on the transducer. In general, continuous work almost has no pause time, but the working current is not very large, while pulse work is intermittent, there is a pause, but the instantaneous current is very large.
Features:
1. Low calorific value
2. Large output power
3. Small resonance impedance
4. Long working hours
5. High conversion efficiency
FAQ:
1. What's your MOQ?
Usually, it is one set, we do not limit the quantity.
2. How about your delivery time?
5-7 for the delivery of small quantities, 15-25 days for large orders or customized products.
3. How is the delivery method?
It is your choice, by Express such as DHL, UPS, FedEx, TNT or by Air or By Sea.
4. Can we agent your transducers in our country or city?
Yes, sure. We are looking for sole agents who are willing to represent our products.
5. How do I know if the product is sent out?
We will provide the tracking number to you once it's sent out, and each product is tested before delivery.

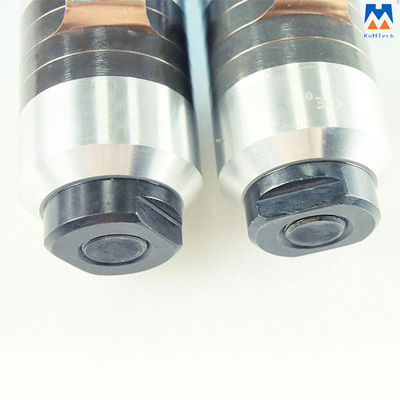

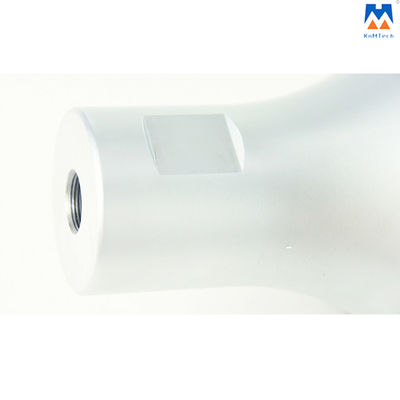

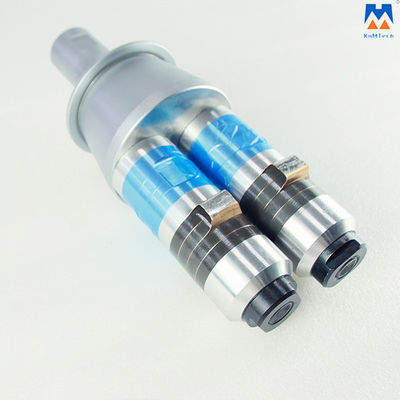

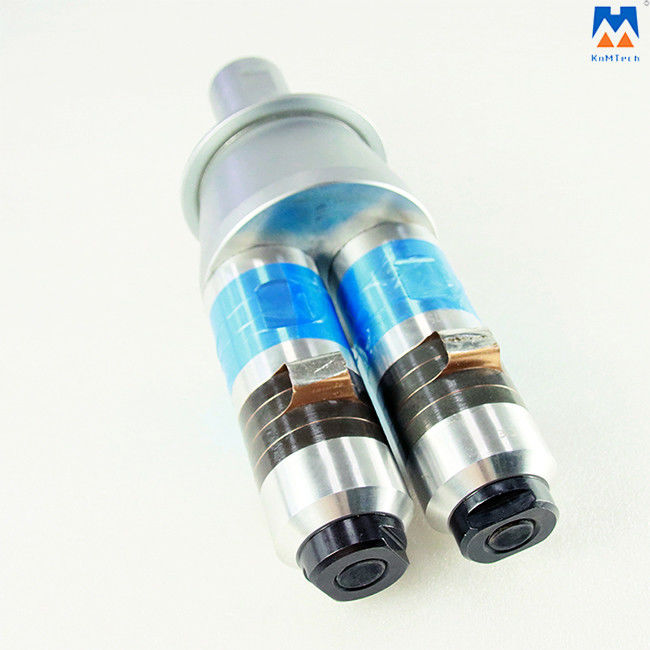

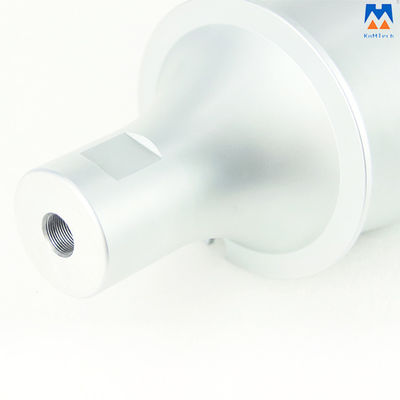

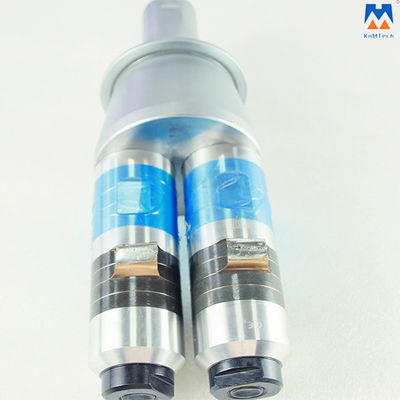

Detailed Photos:
