Product Details:
|
| Product Name: | 15kHz Ultrasonic Welding Generator | Frequency: | 15KHz |
|---|---|---|---|
| Output Voltage: | 0-3000VAC | Voltage: | 220V+-10% |
| Welding Type: | Continuous Welding | Weight: | 4KG |
| Application: | Fabric Non-woven Welding | ||
| High Light: | Ultrasonic Welding Generator 15KHz,Nonwoven Ultrasonic Generator,Fabric Ultrasonic Generator |
||
15KHz Vertical Plastic Ultrasonic Welding Generator for Ultrasonic Welding Machine Power Box
Using digital circuit to replace analog control, on the one hand, can reduce the number of components, greatly simplify the ultrasonic generator structure, thus improving the reliability of the ultrasonic system; on the other hand, it can also realize automatic fault diagnosis, which is helpful to realize the intelligent ultrasonic generator.
This ultrasonic generator has a scientifically reasonable structure, and features of easy operation, steady running, complete functions, and good appearance, which is designed for the productions of non-woven fabrics, the target market is the big volume fabric cutting and welding market. The generator is used to replace the traditional old model fabric welding generators used in the lace welders, the mask welders, non-woven clothes welders, etc. Economical but powerful and high adaptability.
Technical Parameters:
| Product Name | vertical plastic ultrasonic welding generator |

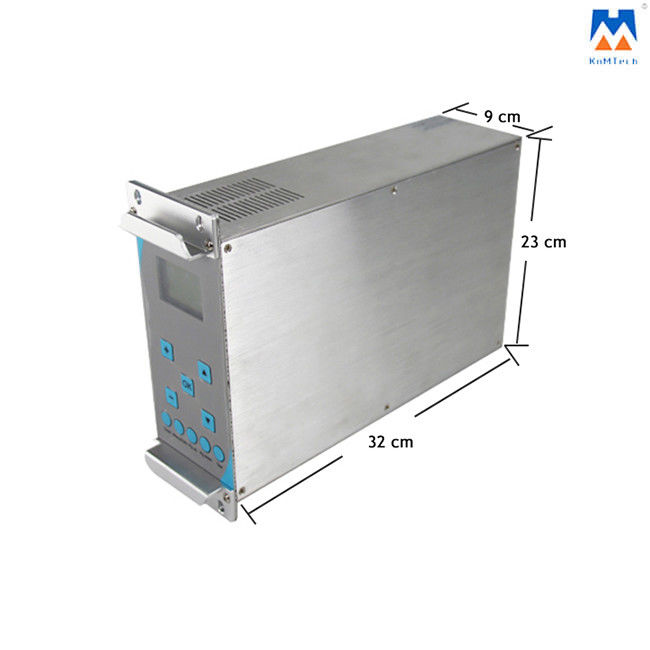

| Dimension: | L90mm×W320mm×H230mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 15 kHz/20kHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
1. Real-time frequency automatic tracking function ensures the ultrasonic transducer always works in the resonant state;
2. Welding modes of the ultrasonic generator: time, outer control, and spot welding;
3. Over-load circuit is equipped for protection (voltage, current, phase, temperature, and force) of the generator;
4. Auto-compensating amplitude function is also set in this ultrasonic generator to manage your welding quality in real-time.
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf

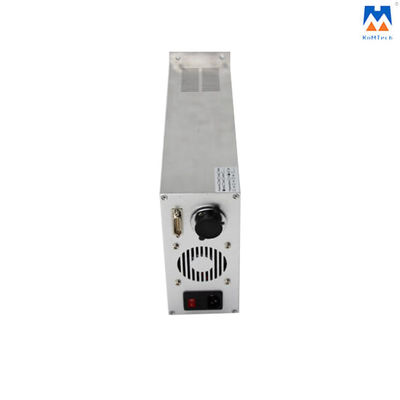

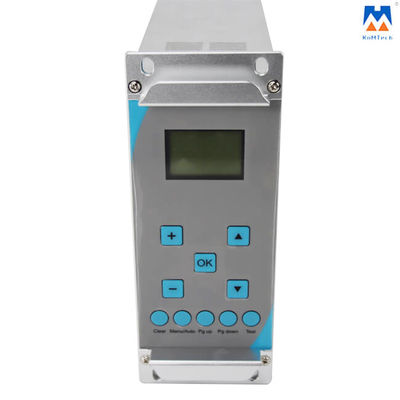

Detailed Photos:
Application Cases:
