Product Details:
|
| Product Name: | 15KHz Ultrasonic Plastic Welding Machine | Frequency: | 15KHz |
|---|---|---|---|
| Input Power: | 4200W | Working Stroke: | 100mm |
| Lift Mode: | By Crank Handle | Drive: | Pneumatic |
| Air Pressure Rate: | 0.2-0.7MPa | Weight: | <=150kg |
| High Light: | 15KHz Ultrasound Welder,4200W Ultrasound Welder,4200W Ultrasonic Plastic Welding Equipment |
||

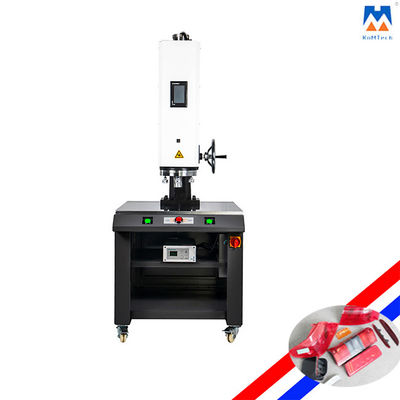

15khz 4200w Standard Ultrasonic Plastic Welding Machine
The ultrasonic welding machine is an ultrasonic welder designed for welding various plastics (PVC, PP, PE, ABS, etc.) and fabrics (nonwoven fabric, etc.). It is widely used in welding plastic products, which includes chargers, reflectors, plastic whistles, pillows, quilt, and other plastic/ fabric products. The ultrasonic welding machines have features such as high working efficiency and good welding performance features, etc. Ultrasonic welders can save your labor and time.

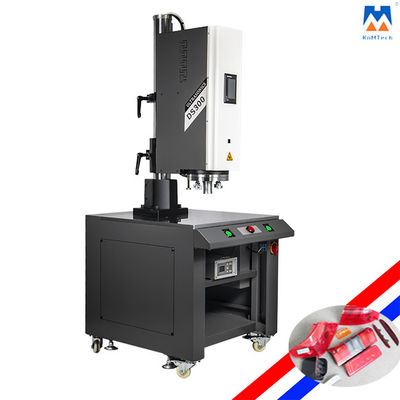

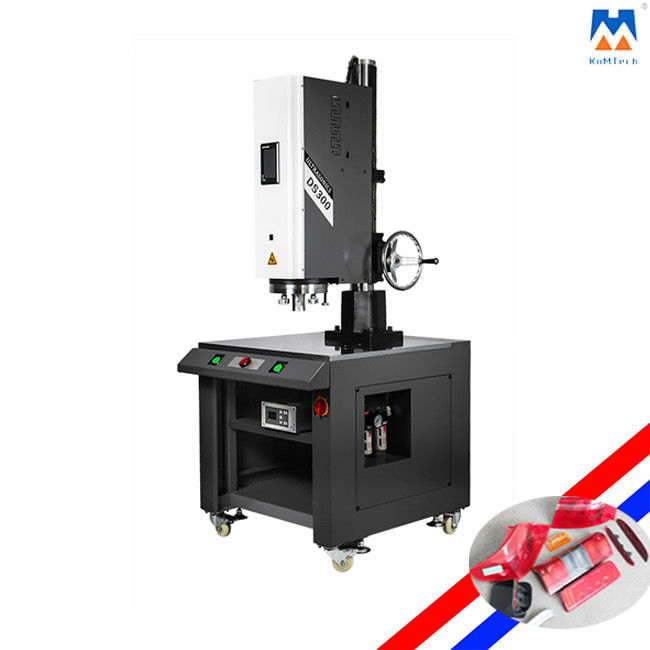

Our KM-DS300 series standard ultrasonic welding machine is the basic introduction series of plastic welding machines which is with three working modes(time, energy, grounding) and three safety managements(overload power protection, power voltage protection, transducer voltage protection). The ultrasonic welder also has two trigger modes: delay and amplitude stage, and the data such as welding records and data statics can be imported and exported easily.
Technical specifications
| Product Name | 15KHz 4200W Standard Ultrasound Welder | |
| Power supply | AC 220V 50/60Hz | |
| Dimensions (LxWxH) [mm] | 390*630*1050 | |
| Weight [kg] | 150KG | |
| Operating frequencies* [kHz] | 20kHz | 15kHz |
| Welding head operating stroke [mm] | 0-100mm | |
| Air pressure rate[MPa] | 0.2-0.7MPa | |
| Power [W] | 2500W | 4200W |
| Amplitude Internal | 60-100 at 5% steps | |
| Lift Mode | By crank handle | |
| Time Mode | 0.005-9.999 Seconds | |
| Input | 22-28V DC/7mA | |
| Output | 22-26V DC/250mA | |
| Energy Mode | Integrated | |
| Working temperature | -10ºC--40ºC | |
| Drive | Pneumatic control | |
Features
1. Stable workmanship
2. Auto frequency adjustment
3. Overload device for system protection
4. Environment-friendly and low impedance
5. 4.3 inches touch screen, easy to operate and control
6. Better control triggering and welding ability.
Applications
Plastics: ABS, PC, PVC, PE, PP, PS, HDPE, LDPE, acetal, acrylics, cellulosic, CYCOLOY-800, POLYSULFONE, SAN, POLYESTER, XT-POLYMER, etc.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
