Product Details:
|
| Product Name: | 1200W Ultrasonic Plastic Welder KM-DS400 | Frequency: | 30KHz |
|---|---|---|---|
| Working Trip: | 75mm | Lift Mode: | By Crank Handle |
| Welding Mode: | Time,energy | Weight: | 85kg |
| Air Pressure Rate: | 0.2-0.7MPa | Application: | Plastic Welding ABS,PVC |
| High Light: | 1200W Ultrasonic Plastic Welder,30KHz Ultrasonic Plastic Welder,30KHz Ultrasonic Plastic Welding Equipment |
||

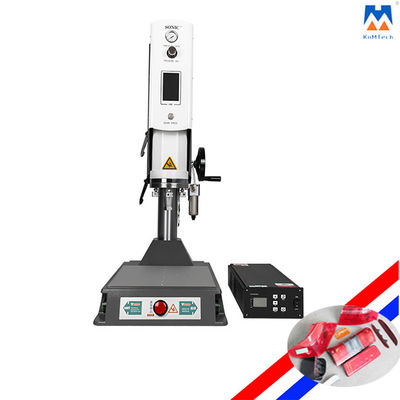

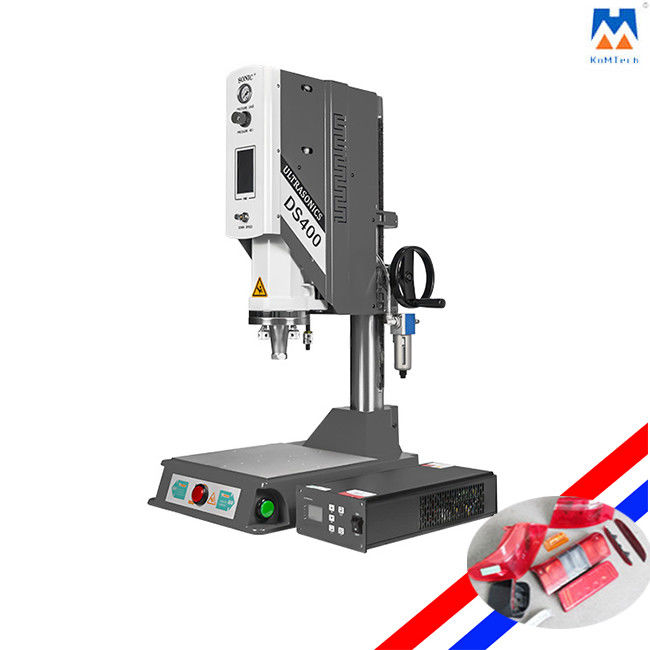

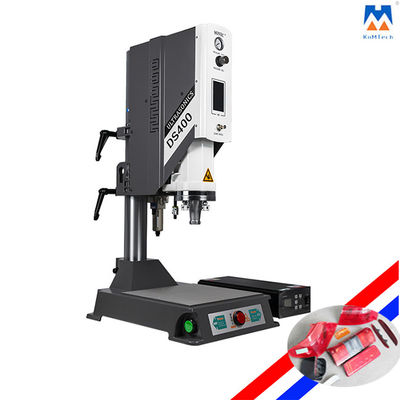

30KHz 1200W Ultrasonic Plastic Welder, Ultrasonic Welding Machine For Plastic Welding
How ultrasonic plastic welding machine works?
The plastic ultrasonic welder is an ultrasonic welder designed for welding various plastics (PVC, PP, PE, ABS, etc.).which use high-frequency ultrasonic vibration convert into heat energy to join the plastic parts together. It is widely used in welding plastic products, including chargers, reflectors, plastic whistles, pillows, quilt, and other plastic/ fabric products. The addition of the split design and level control system can meet the requirements of most on-site welding scenes. While maintaining the high efficiency, ease to use, stability, and economic characteristics of the original series of products, nearly 20 improvements have been made to the structure, material, safety, and color of the whole machine, casting a new generation of basic entry-level hot style products.
Technical specifications:
| Product name | 1200W Ultrasonic Plastic Welder |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.001-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 2600W | 75MM | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | ||
| 15khz | 4200W | 100MM | ||
| 20kHz | 2500w | 75MM | ||
| 20kHz | 3000w | 75MM | ||
| 28KHz | 1200W | 75MM | ||
| 30KHz | 1200W | 75MM | ||
| 35KHz | 1200W | 75MM | ||
| 40KHz | 800W | 75MM |
Features:
1. Digital circuit system: real-time frequency automatic tracking and locking display;
2. Three ultrasonic welding mode: Time mode; Energy mode; Grounding Mode;
3. Quadruple intelligent management: Amplitude management; quality management; data management; safety management;
4. Abundant models and accessories: Products cover 15K-40K frequencies and 800W-4200W powers.
Application:
| Toy industry | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Electronic products | core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Household appliances | electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Stationery | daily necessities stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container |
| Car industry | motorcycle battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding |
| Sports industry | table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, etc. |
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:
Warehouse:
Packing:
