Branson Style Ultrasound Boosters For Enlarging Welding Amplitude And Enhancing Welding Power Get Latest Price

The main components of a set of ultrasonic welding system include the ultrasonic generator, transducer(converter and booster), and horn. The Ultrasonic booster is a one-half-wavelength long resonant section that is made of aluminum or titanium. It is mounted between the ultrasonic converter and the ultrasonic horn, the ultrasonic booster would modify the amplitude of vibration applied to the ultrasonic horn.

The success of an ultrasonic plastics assembly application is dependent on the required force, time, and velocity factor to obtain the correct ultrasonic energy level. Using the correct ultrasonic horn and ultrasonic booster combination can obtain the ultrasonic velocity factor, provide the optimum amplitude for the type of plastic, size of the part, and type of assembly to be performed. Since it may be technically impractical to design the correct amplitude into the ultrasonic horn because of its shape, we can use the ultrasonic booster to increase or decrease the amplitude, primarily to amplify the mechanical vibrations produced at the tip of the transducer and transfer them to the welding horn. Its secondary purpose is to provide a location for mounting the stack on the welding press.

Technical parameters:

Features:

1. High output power

2. Different transformations ( transformation ratios of 1:1, 1:1.5, 1:2, 1:2.5, 1:3) 2. Rigid or rubber-mounted design

3. High-quality

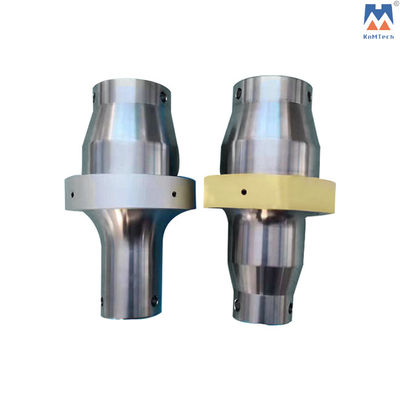

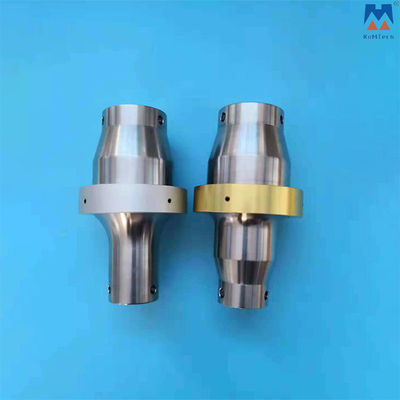

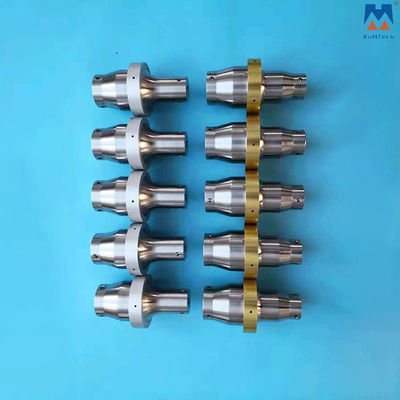

Detailed Photos:
