Product Details:
|
| Product Name: | Piezoelectric Ceramic Discs | Dimention: | D60*30*10 |
|---|---|---|---|
| Thickness: | 10mm | Pieces Of One Package: | 64 Pieces |
| Dimension Of The Package: | 30*30*26 Cm | Measuring Medium: | Solid |
| Usage: | Ceramic Discs For Ultrasonic Welding Convertor | ||
| High Light: | OD 60mm Piezoelectric Ceramic Disc,Thickness 10mm Piezoelectric Ceramic Disc,OD 60mm Piezo Ceramic Disc |
||
Piezoelectric Disc Pzt Material 60*30*10 Ultrasound Ceramic Piezo Elements
The working principle of an ultrasonic transducer is to effectively convert electrical energy into mechanical motion through a set of specially designed piezoelectric ceramics. The ceramics' size, shape, and type will influence the frequency at which conversion happens and the amplitude of the generated mechanical vibrations.
As the piezoelectric ceramic transducer material, the performance of the PZT series is more stable and the piezoelectric effect is significant in a larger temperature range. PZT series has good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields, which is widely used for ultrasonic welding and cleaning.
Our piezoelectric ceramic discs use PZT8 materials which are proved to be with high mechanical strength, high sensitivity, high vibration efficiency, high coercive field, and low dielectric loss.
Technical parameters:
| Product Name | PZT8 Piezoelectric Ceramic Discs |
| Weight(one package) | 11.5kg |
| Pieces of one package | 64 pieces |
| The dimension of the package | 30*30*26cm |
| Outer Dimension | 60mm |
| Inner Dimension | 30mm |
| Thickness | 10mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage |
ceramic discs for ultrasonic welding convertor |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:

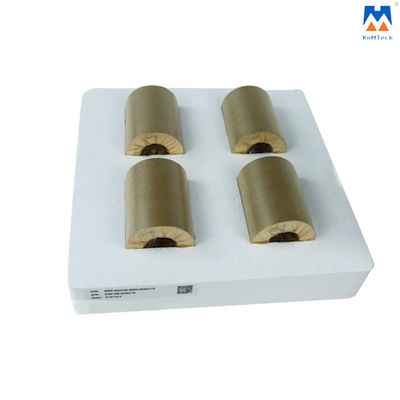

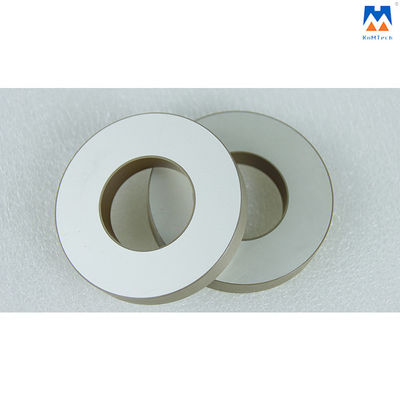

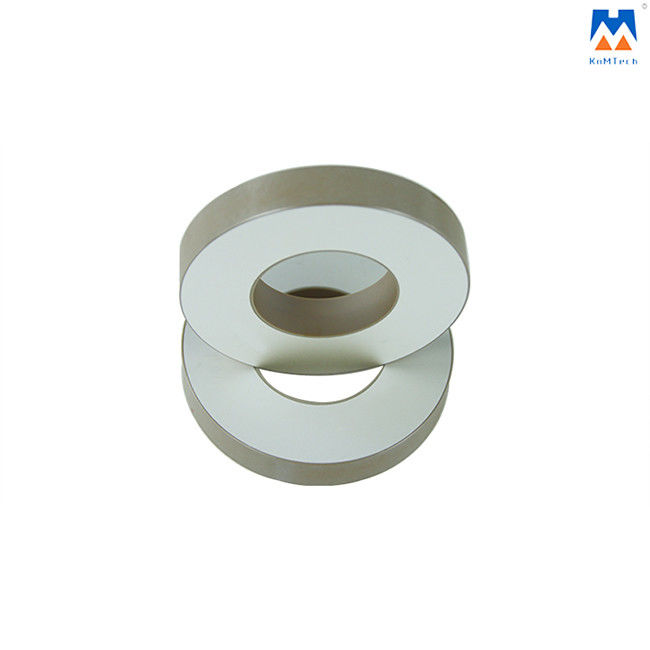

Detailed Photos:
