Product Details:
|
| Product Name: | Ultrasonic Piezoelectric Ceramic Discs | Dimention: | D60*30*10 |
|---|---|---|---|
| Thickness: | 10mm | Pieces Of One Package: | 64 Pieces |
| Weight(one Package): | 11.5kg | Measuring Medium: | Solid |
| Usage: | Ceramic Discs For Ultrasonic Welding Convertor | ||
| High Light: | PZT Piezoceramic Disc,Ultrasonic Piezoceramic Disc,Ultrasonic Piezoelectric Ceramic Disc |
||

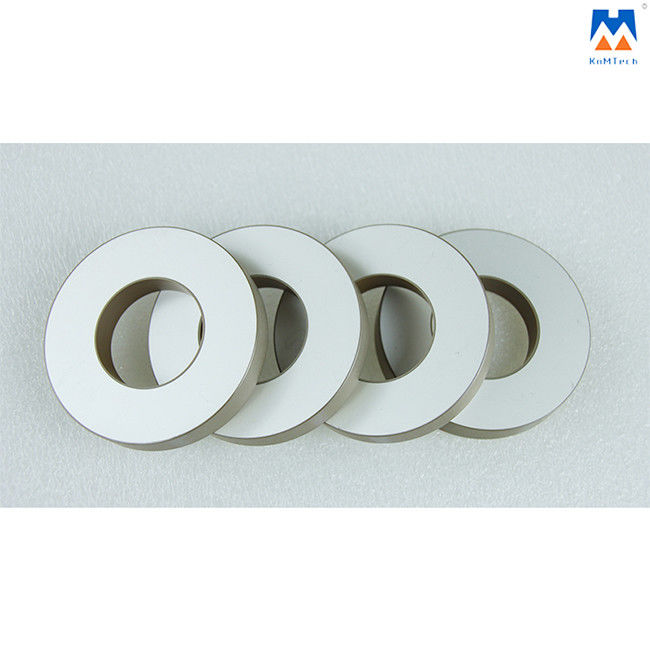

Rsp60 Piezoelectric Disc Pzt Material 60*30*10 Ultrasonic Ceramic Piezo Elements
How do piezoelectric ceramics work?
1. Place a piezoelectric ceramic between two different metal materials plates. The ceramic’s structure stays in balance.
2. Apply AC electrical energy to the ceramics, which shrinks and expands the ceramic’s structure.
3. As the ceramic’s structure expands and contracts, it converts the received electrical energy and releases mechanical energy in the form of a sound wave.
The ultrasonic transducer consists of piezoelectric ceramic discs backed with a shell matching layer and a Cymbal array receiver, which converts the input electrical power into mechanical power (i.e., ultrasound) and transmits to the horn/mold, consuming a small fraction of the power itself.
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Technical parameters:
| Product Name | PZT8 Piezoelectric Ceramic Discs |
| Weight(one package) | 11.5kg |
| Pieces of one package | 64 pieces |
| The dimension of the package | 30*30*26cm |
| Outer Dimension | 60mm |
| Inner Dimension | 30mm |
| Thickness | 10mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage |
ceramic discs for ultrasonic welding convertor |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:

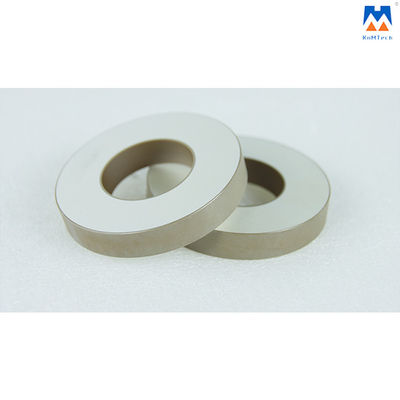

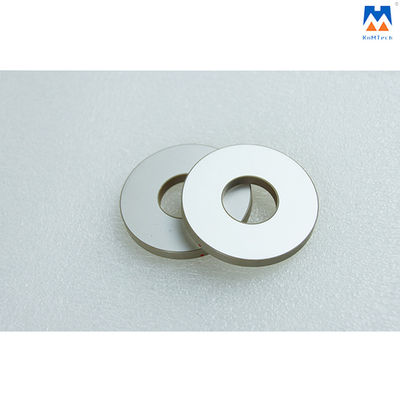

Detailed Photos:
