Product Details:
|
| Product Name: | Piezoelectric Ceramic Ring | Dimention: | 50*20*5mm |
|---|---|---|---|
| Thickness: | 5mm | Weight(1 Package): | 7.5kg |
| Pieces Of One Package: | 108 Pieces | Sensitivity: | High |
| Usage: | Ceramic Discs For Ultrasonic Welding Convertor | Dimension Of The Package: | 30*30*26 Cm |
| High Light: | PZT Piezoelectric Ceramic Plate,Ultrasonic Transducer Piezoelectric Ceramic Plate,Thickness 5mm Piezoelectric Ceramic Sheet |
||

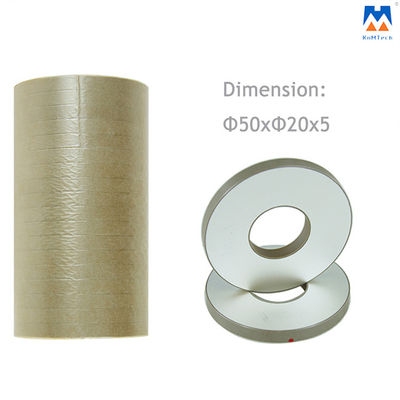

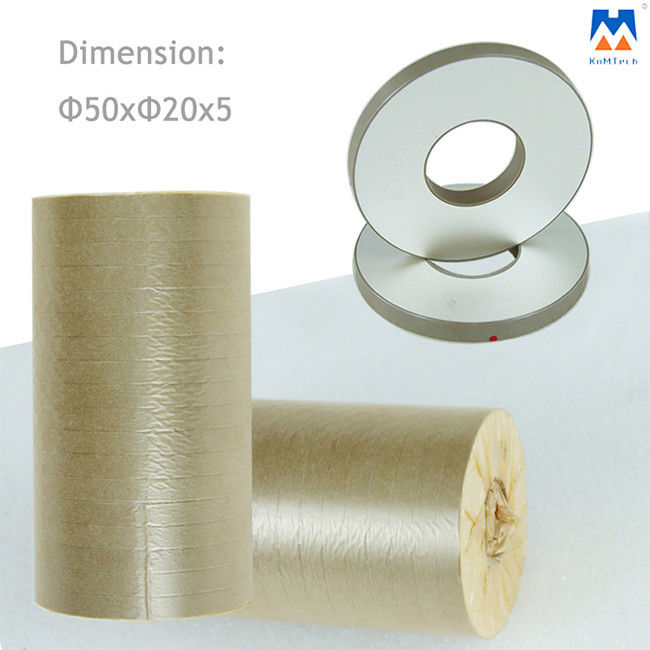

Rsp50 Pzt8 50*20*5 Piezoelectric Ceramic Ring 50mm for Ultrasonic Welding
What is the piezoelectric ceramic?
The characteristic of converting mechanical energy to electrical energy, and from electric energy to mechanical energy is called piezoelectric. That is to say, when the piezoelectric ceramics are subjected to a voltage, they will expand or contract.
Generally, ceramics consist of crystals. Each crystal is made up of atoms with a positive or negative electrical charge. Most ceramics have positive and negative electric charges. But even under natural conditions, some dielectric ceramics in the crystals have unbalanced positive and negative electric charges, resulting in biased electric charges (spontaneous polarization).
If the polarizing process is applied to ferroelectric ceramics, piezoelectric ceramics are produced. When applying an AC voltage to the piezoelectric ceramics, the external electric charges will attract or repel the centers of the positive and negative electrical charges in the ceramics, causing the ceramics to expand or contract.
Technical parameters:
| Product Name | PZT8 Piezoelectric Ceramic Discs |
| Capacitance | ±2950 |
| Outer Dimension | 50mm |
| Inner Dimension | 20mm |
| Thickness | 5mm |
| Sensitivity | High |
| Weight(1 package) | 7.5kg |
| Pieces of one package | 108 pieces |
| Measuring Medium | Solid |
| Usage | ceramic discs for ultrasonic welding convertor |
Other Sizes are available:
| Model | Capacitance | Loss | Resonant Frequency |
Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm | |
| RSP-82-Φ10×Φ5×2 | 265 | 0.3 | 154.7 | 53 | 800 |
| RSP-82-Φ13×Φ5.3×2.2 | 455 | 0.3 | 126.8 | 53 | 800 |
| RSP-82-Φ15×Φ6×2 | 670 | 0.3 | 110 | 53 | 800 |
| RSP-82-Φ18×Φ8×7 | 265 | 0.3 | 89 | 53 | 800 |
| RSP-82-Φ20×Φ8×6 | 400 | 0.3 | 82.9 | 53 | 800 |
| RSP-82-Φ20×Φ10×5 | 425 | 0.3 | 77.3 | 53 | 800 |
| RSP-82-Φ25×Φ10×5 | 750 | 0.3 | 66.3 | 53 | 800 |
| RSP-82-Φ25×Φ12×5 | 690 | 0.3 | 62.7 | 53 | 800 |
| RSP-82-Φ30×Φ10×5 | 1140 | 0.3 | 58 | 53 | 800 |
| RSP-82-Φ30×Φ12×5 | 1075 | 0.3 | 55 | 53 | 800 |
| RSP-82-Φ32×Φ12×5 | 1255 | 0.3 | 52.7 | 53 | 800 |
| RSP-82-Φ35×Φ15×5 | 1425 | 0.3 | 46.4 | 53 | 800 |
| RSP-82-Φ38×Φ15×5 | 1735 | 0.3 | 43.8 | 53 | 800 |
| RSP-82-Φ40×Φ12×5 | 2075 | 0.3 | 44.6 | 53 | 800 |
| RSP-82-Φ40×Φ15×5 | 1960 | 0.3 | 42.2 | 53 | 800 |
| RSP-82-Φ45×Φ15×5 | 2565 | 0.3 | 38.7 | 53 | 800 |
| Model | Capacitance | Loss | Resonant Frequency |
Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm | |
| RSP-82-Φ45×Φ17×5 | 2475 | 0.3 | 37.4 | 53 | 800 |
| RSP-82-Φ49×Φ23×6 | 2225 | 0.3 | 32.2 | 53 | 800 |
| RSP-82-Φ50×Φ17×5 | 3150 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×6.5 | 2425 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×7.5 | 2100 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ20×6 | 2495 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ20×7 | 2135 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ23×6 | 2340 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×6.5 | 2170 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×7 | 2005 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ55×Φ20×8 | 2340 | 0.3 | 30.9 | 53 | 800 |
| RSP-82-Φ55×Φ26×7 | 2390 | 0.3 | 28.6 | 53 | 800 |
| RSP-82-Φ60×Φ30×10 | 1925 | 0.3 | 25.8 | 53 | 800 |
| RSP-82-Φ69×Φ33×11 | 2380 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ70×Φ30×10 | 2850 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ100×1.4-200 | 52000 | 0.3 | 23 | 53 | 800 |
Features:
* Good stability
* High sensitivity
* Low heat
* Low power consumption
* High vibration efficiency
* Clear sound/high sound pressure
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:
Piezoelectric ceramic discs can be used for ultrasonic welding transducers and ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
If you need other sizes of piezoelectric ceramic discs, feel free to contact us.
