Product Details:
|
| Product Name: | PZT8 Piezoelectric Ceramic Discs | Dimention: | D50x20x6mm/D50x20x5mm |
|---|---|---|---|
| Cone: | Rubber-edge | Thickness: | 6mm/5mm |
| Style: | In-ear | Measuring Medium: | Solid |
| Sensitivity: | High | Usage: | Ceramic Discs For Ultrasonic Welding Convertor |
| High Light: | Ultrasonic Convertor Piezoelectric Ceramic Discs,PZT8 Piezoelectric Ceramic Discs,RSP50 Piezo Ceramic Disc |
||
Piezo-electricity Effect And Inverse Piezo Effect
The piezo-electricity effect is based on the ability of certain crystals of the piezoelectric ceramic to generate an electrical charge by mechanical pressure or tension. And, these crystals will contract or expand when exposed to an electric field – which is called the inverse piezo effect. The polarity of the charge depends on the orientation of the crystal relative to the direction of the pressure.

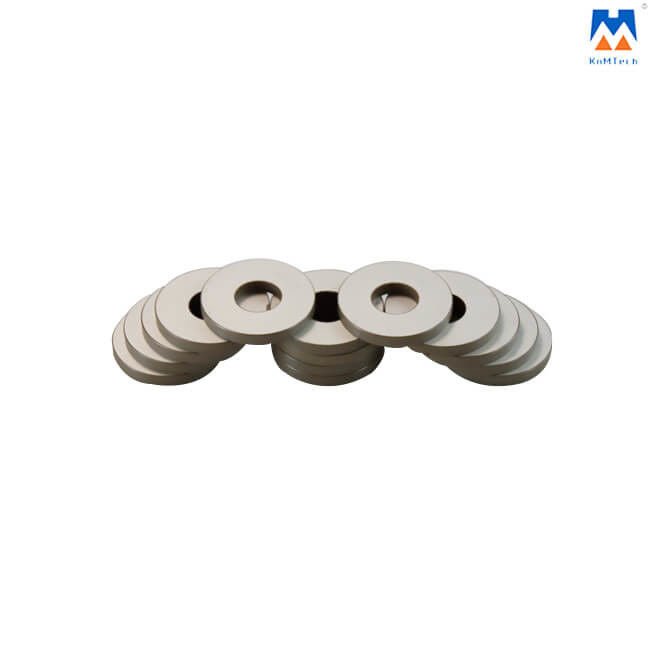

Piezoelectric Ceramic Discs For Ultrasonic Converter RSP50 PZT8
Piezoelectric ceramic is the core element of the vibration of the ultrasonic transducer. Its performance will directly affect the output performance of the ultrasonic system. We can supply a wide selection of high-quality ceramic elements with goos dielectric temperature stability, low dielectric loss, and good consistency. This is the RSP50 pzt8 piezoelectric ceramic discs series for ultrasonic welding.
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Technical parameters:
| Product Name | 20KHz PZT8 Piezoelectric Ceramic Discs |
| Frequency | 20KHz |
| Outer Dimension | 50mm |
| Inner Dimension | 20mm |
| Thickness | 6mm/5mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage |
ceramic discs for ultrasonic welding convertor |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:
Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.
If you need other sizes of the piezoelectric ceramic discs, feel free to contact us.

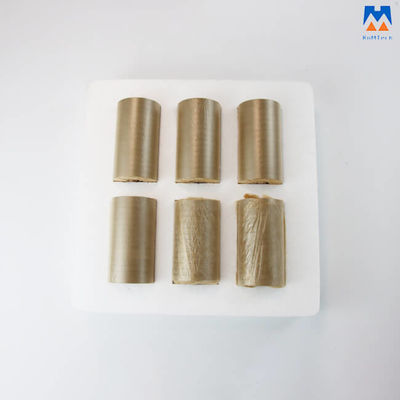

Detailed Photos:
