Product Details:
|
| Product Name: | 15kHz Ultrasonic Plastic Welding | Frequency Accuracy: | 14.80KHz-15.200KHz |
|---|---|---|---|
| Power: | 6000W | Triggering Method: | Time |
| Welding Method: | Time/Energy | Max Working Stroke(mm): | 100mm±1mm |
| Max Welding Time: | 5s | Voltage(V): | AC220V±5% 50/60Hz |
| High Light: | 15kHz ultrasonic plastic welding,6000W ultrasonic plastic welder,6000W plastic welding machine |
||

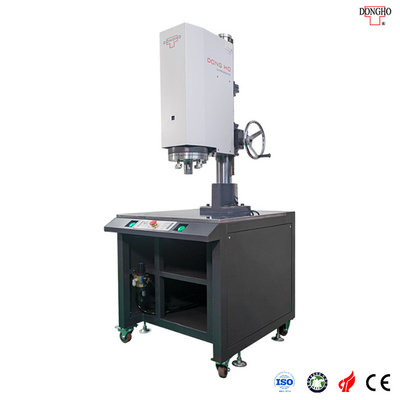

6000W Ultrasonic Plastic Welding Machine For Large Plastic Parts
Technical Parameters:
| Model | iBA-THF1560 |
| Frequency accuracy | 14.80KHz-15.200KHz |
| Power | 6000W |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | 100mm±1mm |
| Max Welding Time | 5s |
| Booster Amplification ratio | 1:4.0 |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Amplitude control | Single-stage amplitude |
| Air pressure control | pressure regulating valve |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Weld area | Per material/shapes, not more than 350mm |
Features:
● With the 6th generation iQS operation system
● Mounted lifting motor for structural adjustment, easy to use;
● Built-in scanning gun for data tracing
● USB-saved welding parameters and QA quality control
● Auto tuning frequency tracking, overload protection
Advantages:
Ultrasonic plastic welding machine because of its unique advantages:
① By ultrasonic, plastic welding has become an indispensable plastic products processing technology hand in the use of organic adhesives, safe and healthy.
② From one of the paragraphs. Digestion introduction and promotion of this advanced technology means to improve their own fusion, so the strength is particularly high.
③ High production efficiency, product quality to reduce labor intensity, reduce costs, speed up production turnover.
Application:
The ultrasonic welding technology has been used in various industries, such as automobile, packaging, electronics, the medical, communications industries and so on.
Our Quality Control:
1. After the customer confirms the demand, we will strictly control each link of the product production;
2. At the same time, as the company sales team will follow up every link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal, and we will provide continuous services for new and old customers for the long run.
Our Services:
1. Response within 24 hours! All the contacts and emails will be nicely responded to within 30 minutes;
2. From the perspective of customers to help customers analyze and choose suitable products for customers;
3. All after-sales service information will get feedback within 24 hours;
4. On-line technical training and online service are available;
