Product Details:
|
| Product Name: | Ultrasonic Welding Machine For Plastic Bag | Frequency Accuracy: | 14.70~15.20KHz |
|---|---|---|---|
| Power: | 5000W | Triggering Method: | Time |
| Welding Method: | Time/Energy | Max Working Stroke(mm): | Φ100*100mm±1mm |
| Max Welding Time: | 5s | Voltage(V): | AC220V±5% 50/60Hz |
| Air Pressure: | ≥0.05Mpa ≤0.65Mpa | Application: | Ultrasonic Plastic Welder |
| High Light: | Ultrasonic Welding Machine 15kHz,15kHz Ultrasonic Plastic Welding Machine,Large Plastic Parts Ultrasonic Welding Machine |
||

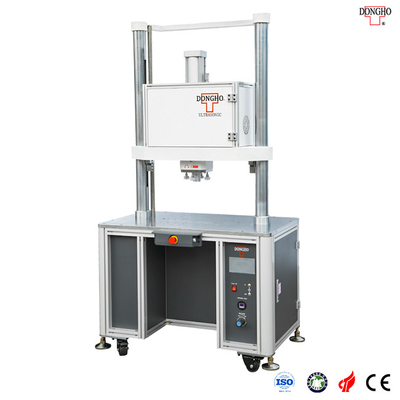

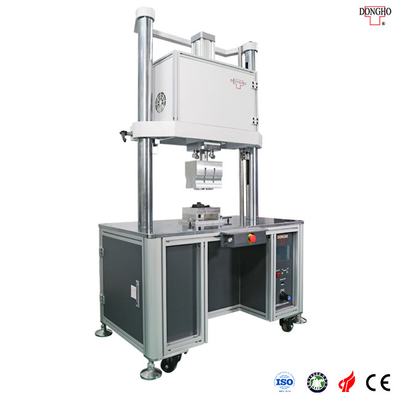

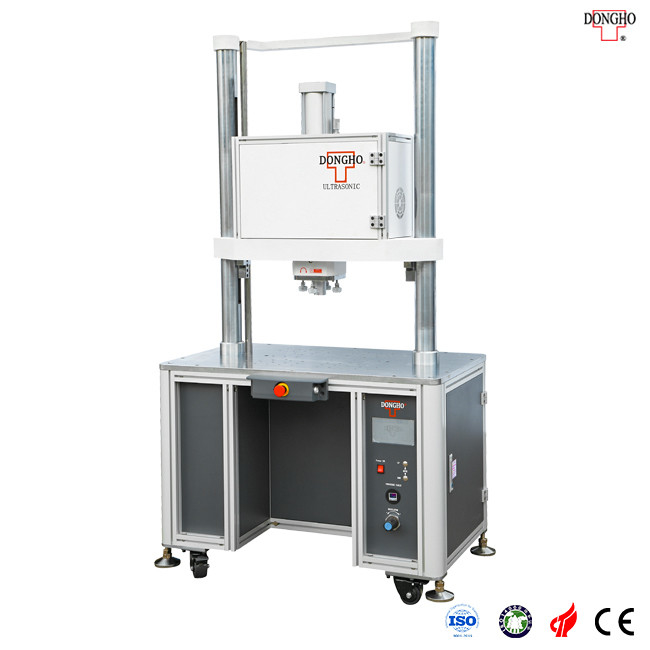

High Precision Ultrasonic welding Machine 15kHz 5000W For large plastic parts
Features:
* The 6th generation iQS operating system
* 100% digital amplitude setting
* Clearance offset function and double-feedback control framework
* Auto frequency tracking and locking system
* Safe and convenient sensing switch of new touch mode for easier usage
* Welding parameters record and QA diagnosis and control
Technical Parameters:
| Model | iAL S1550 |
| Frequency accuracy | 14.70~15.20KHz |
| Power | 5000W |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | Φ100*100mm±1mm |
| Max Welding Time | 5s |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Cooling system | 12x12 cooling fan |
| Operating air method | Standard |
| Dimension(L*W*H)mm | 1200*1150*1950mm |
| Weight(kg) | 350kg |
How does ultrasonic welding plastic works?

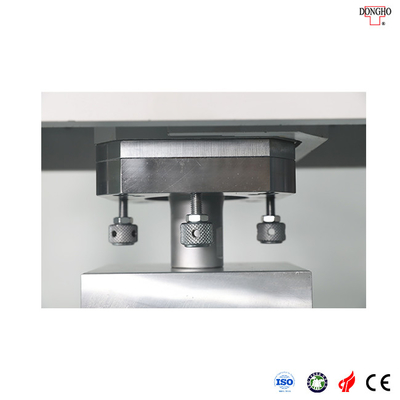

The ultrasonic plastic welding device converts the current 50/60Hz electrical frequency into 20KHz or 40KHz high-frequency electrical energy through a transistor function device, which is supplied to the converter. The converter converts electrical energy into mechanical vibration energy for ultrasonic, and the pressure regulator transmits the converted mechanical energy to the welding head of the ultrasonic welder. The welding head is an acoustic device that transmits mechanical vibration energy directly to the product to be pressed. Vibration generated by vibration friction welding workpieces to the bonding surface heat melt plastic, vibrations in the molten state matter stops when it reaches its interface, the transient pressure maintenance can make the melt adhesive surface curing generated when a strong molecular bonds, the entire cycle is usually less than one second is complete, but the welding strength is close to a row material!
Application:
iAL series ultrasonic plastic welding machine is suitable for welding larger, difficult to weld, more complex plastic products.
The ultrasonic plastic welding machine is used for ABS, PE, PC, PS, PVC, PP, SAN, PA, acrylic, nylon, ABS, and PC synthetic materials welding, riveting, embedding molding, as long as the welding head is changed, Can do a variety of applications, widely used in electronics, electrical appliances, auto parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics, and other industries.
Our Advantages:
1. More than 25 years ultrasonic plastic welding machine manufacture experience;
2. Our company has passed ISO9001 quality management system, ISO1400 environmental management system, CE certification;
3. Technical staffs have more than 25-year experience in ultrasonic devices research, development, and manufacture;
4. First-class sales team, providing customers with valuable products and services;
5. High-quality promise, At least one-year Warranty for machines and 3 months warranty for tooling;
6. Professional after-sales service team, lifelong technical support.
