Product Details:
|
| Product Name: | 220v 20 Khz 3000w Ultrasonic Plastic Welding Equipment | Pneumatic Control: | Proportional Valve |
|---|---|---|---|
| Ultrasonic Power: | 3000W | Keyword: | Ultrasonic Welding Thermoplastics |
| Frequency Accuracy: | 19.80KHz-20.20KHz | Triggering Method: | Time/Pressure/Position/Power |
| Max Working Stroke(mm): | Φ63*100mm≤2mm | Max Welding Time: | 5 S |
| Voltage(V): | AC220V±5% 50/60Hz | Application: | Polyester Ultrasonic Welding,polymer Ultrasonic Welding,polyurethane Ultrasonic Welding |
| High Light: | 20khz 3000w ultrasonic plastic welding equipment,polystyrene ultrasonic welder,Super Precision Ultrasonic Welding Machine |
||

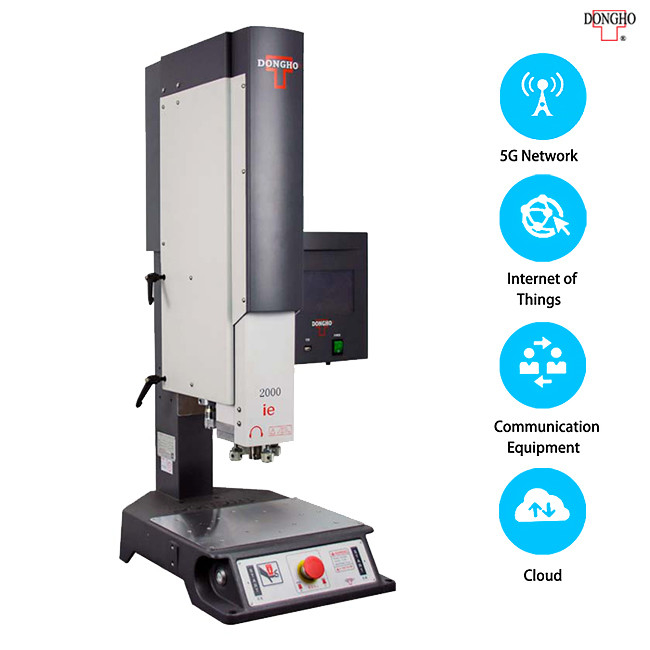

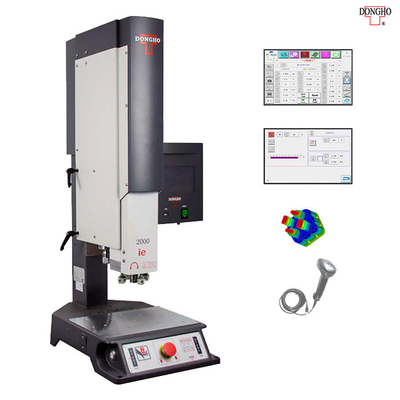

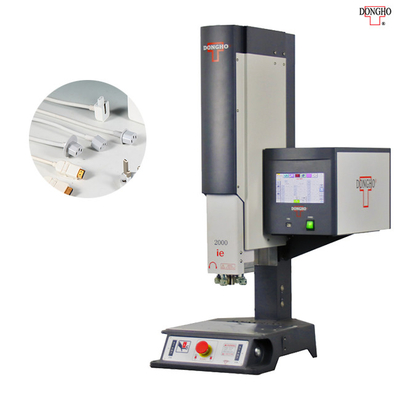

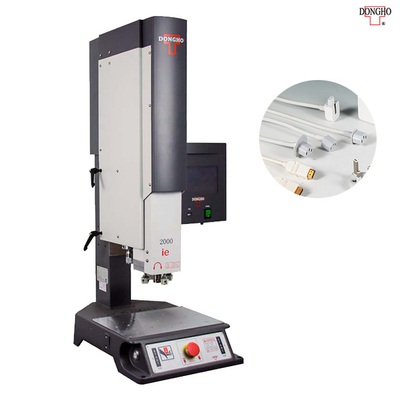

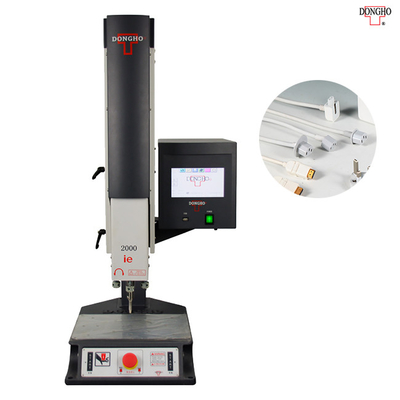

Ultrasonic Welding Machine Super Precision 20kHz 3000W With Powerful Welding Control
Description:
Ultrasonic plastic welding is a new kind of plastics processing technology, in the welding of plastics, ultrasonic welding technology does not add any glue, packing, or solvent, high efficiency, high quality, beautiful, energy saving, Ultrasonic welding machine has those advantages such as simple operation, high welding speed, welding strength, high production efficiency, etc. As a result, the application of ultrasonic welding technology is more and more widely, Not all plastics can be ultrasonic welded Most materials suitable for ultrasonic welding are thermoplastic. It is a polymer that can soften and flow when heated, solidify when cold, and does not change its chemical structure repeatedly. Thermosetting plastics cannot be welded by ultrasonic.
The iAG series is the complete required configuration of DONGHO pneumatic product series. Pneumatic drive mode, all with DONGHO ultrasonic verified Proportion Valve technology. Highly sensitive: diverse welding modes, configurable control system. Control panel functions can be used with the desired menu. Thus available worldwide, the different cipher levels prevent the processing of welding parameters. Perfect control function: welding quality monitoring, statistical process control, welding process picture description for users in production to find parameters and quality records to provide support, and license management, user behavior and welding results log recording, data output.
Technical Parameters:
| Model | iAG2030e |
| Frequency accuracy | 19.80KHz-20.20KHz |
| Brand | DONGHO |
| Power | 3000W |
| Triggering Method | Time/Pressure/Position/Power |
| Welding Method | Weld time/Relative position/Absolute position/Weld energy/Peak power/Max.pressure/Ground detect |
| Max working Stroke(mm) | Φ63*100mm≤2mm |
| Max Welding Time | 5 S |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Pneumatic control | Proportional valve |
| Amplitude control | Single amplitude/stepping amplitude /distance amplitude |
| Operation pressure method | standard/multiple stages |
| Piling function | time/position/energy/pressure |
| Weld area | Not more than 170mm as per materials/shapes, etc. |
| Dimension(L*W*H)mm | 500*750*1100mm |
| Weight(kg) | 106kg |
