Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine For Metal | Frequency: | 40KHz |
|---|---|---|---|
| Power: | 800W | Welding Force: | 380N Max. |
| Control Voltage: | 24V | Welding Stroke: | 20mm |
| Welding Range: | 5-30 Mm2 | Keyword: | Ultrasonic Welding Machine For Metal |
| High Light: | 40kHz Ultrasonic Spot Welder,800W Ultrasonic Metal Welding Machine,40kHz Ultrasonic Spot Welding Machine |
||

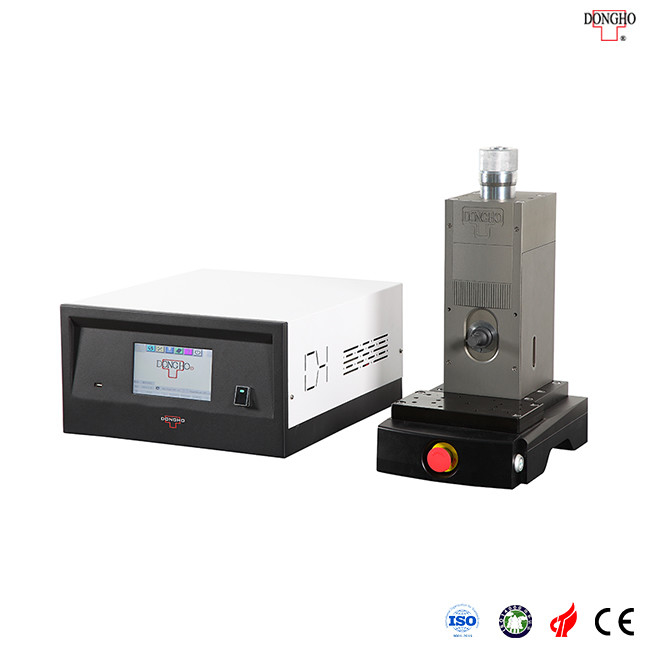

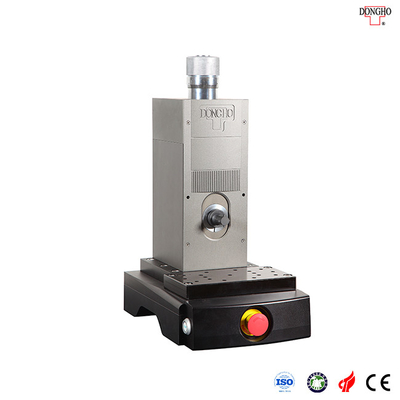

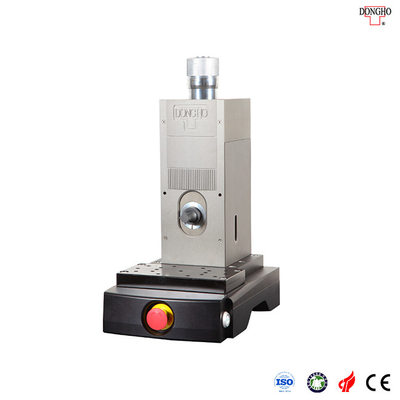

40kHz 800W Ultrasonic Spot Welding Machine for Metal Welding
Technical Parameters:
| Model | MPS-20 |
| Frequency | 40KHz |
| Power | 800W |
| Welding Force | 380N Max. |
| Control Voltage | 24V |
| Welding Stroke | 20mm |
| Welding Range | 5-30 mm2 |
Description:
The MPS series ultrasonic metal welder is designed with the excellent structure of mechanics, as well as equipped with reliable distance and pressure drive system and pneumatic system of the precise proportional valve to stably and reliably output. Six welding results can be online and offline monitored to control welding quality. Data storage on the network provides intelligent quality management for customers.
Features:
1. High fusion strength; Close to cold processing; The workpiece is not annealed, no oxidation trace;
2. After welding, the electrical conductivity is good, and the resistivity is very low or close to 0;
3. Low requirements for welding metal outside, oxidation or electroplating can be welded;
4. Short welding time, without any flux, gas, solder;
5. Welding without spark, environmental protection, and safety.
Application:
Wire harness welding, wire electronic components welding, household appliances, automotive supplies, relays, electromagnetic switch, and other welding.
