Product Details:
|
| Product Name: | Cheap High Efficiency Ultrasonic Welder | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2500W | Working Trip: | 75mm |
| Lift Mode: | By Crank Handle | Welding Mode: | Time,energy |
| Weight: | 85kg | Air Pressure Rate: | 0.2-0.7MPa |
| High Light: | Crank Handle Ultrasound Welder,Simple Process Ultrasonic Plastic Welder,High Efficiency Ultrasonic Welder |
||

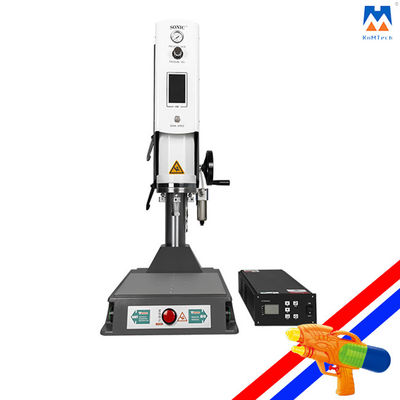

Cheap High-Efficiency Ultrasonic Welder For Plastic Toy Gun
Technical specifications:
| Product name | Cheap Ultrasonic Welder |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Welding head operating stroke [mm] | 75mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.001-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Different models are available:
| Frequency | Power | Work Stroke | Voltage | Air Source |
| 15kHz | 2600W | 75MM | 220V±10% | 2kgf-8kgf |
| 15khz | 3200W | 75MM | ||
| 15khz | 4200W | 100MM | ||
| 20kHz | 2500w | 75MM | ||
| 20kHz | 3000w | 75MM | ||
| 28KHz | 1200W | 75MM | ||
| 30KHz | 1200W | 75MM | ||
| 35KHz | 1200W | 75MM | ||
| 40KHz | 800W | 75MM |
Advantages of Ultrasonic Welding Machine
1, Energy-saving and environmental protection; 2, Do not need to be equipped with smoke dissipation ventilation device; 3, Low cost, high efficiency; 4, Easy to realize automatic production; 5, For the body welding, high strength, good air tightness; 6, Mechanical welding parameter setting, the operation is very convenient; 7, The process is simple, do not need preheating, cleaning and other processes.
Application:
The ultrasonic welding machine can be used in different industries such as the toy industry, electronic products, household appliances, stationery, car industry, sports industry, etc. The product involves but is not limited to plastic toys, water guns, aquatic life video games, children's dolls, plastic gifts, wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-Hsiang, computer, daily necessities stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container,motorcycle battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding,table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, etc.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf

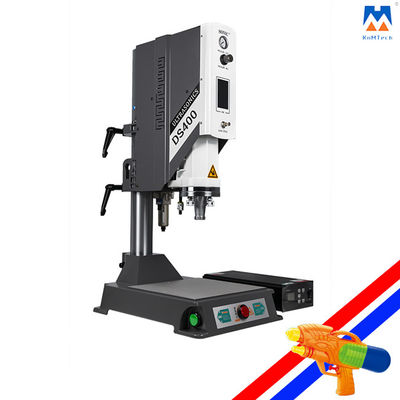

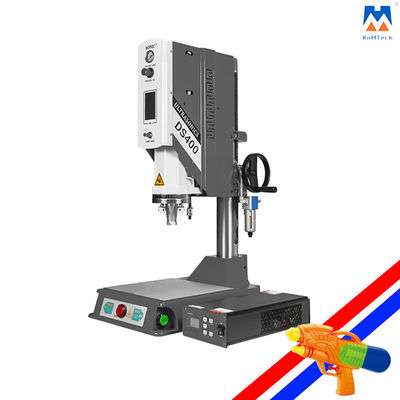

Detailed Photos:
