Product Details:
|
Product Name: | Plastic Ultrasonic Welding Equipment For Stationery Albums | Frequency: | 15KHz/20KHz/30KHz/35KHz/40KHz |
---|---|---|---|
Air Pressure Rate: | 0.2-0.7MPa | Power: | 800~4200W |
Cooling Way: | Air Cooling | Lift Mode: | Electrical Control |
Horizontal Adjustment Board: | L800*W900 | Welding Mode: | Time ,energy,grounding |
Highlight: | 30KHz Ultrasonic Welding Equipment,Stationery Albums Ultrasonic Welding Equipment,Stationery Albums Ultrasound Welder |

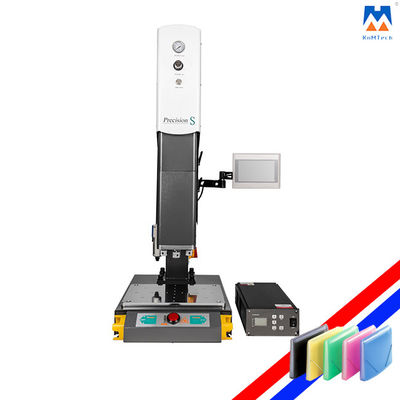

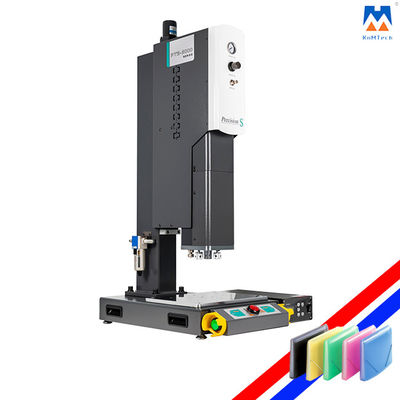

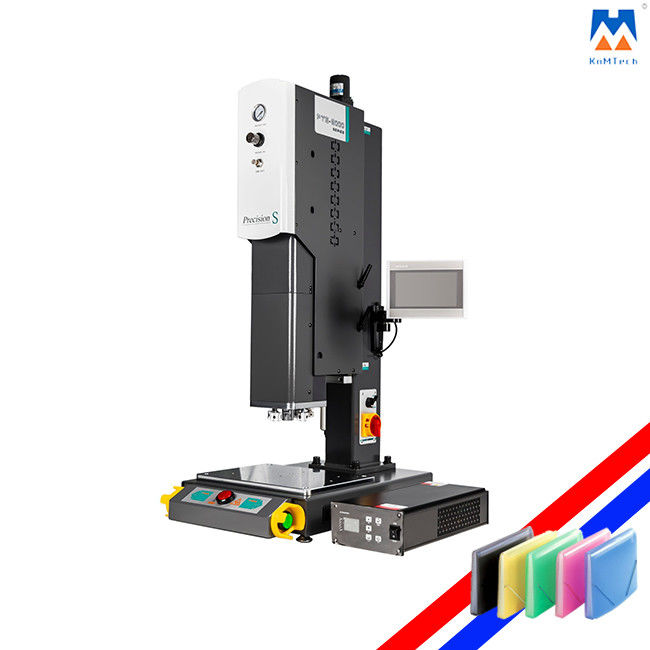

Plastic Ultrasonic Welding Equipment For Stationery Albums
As the backbone of the ultrasonic welding machine products, this series of products integrate a variety of precision control techniques, including welding machine balancing system/Horizontal adjustment system, linear slide rail lifting system, micrometer positioning system, mechanical pressure sensors, to meet the requirements of the complex welding work environment and diverse needs of customers.
Product Name | Plastic Ultrasonic Welding Equipment PTS2000 |
Voltage |
AC 220V 50/60HZ |
Dimensions (WxHxD) [mm] |
700*880*2000 |
Weight [kg] |
280KG |
Welding head operating stroke [mm] |
100mm |
Air pressure rate[MPa] |
0.2-0.7MPa |
Processor |
4-core, 32-bit processor |
Time Mode |
0.001-9.999 Seconds |
Welding amplitude |
10%-100% adjustable(1% accuracy) |
Welding mode |
Time, Energy, grounding |
Energy Mode |
Integrated |
Temperature |
-10ºC--40ºC |
Different models are available:
Frequency | Power | Work Stroke | Lifting Mode | Voltage | Air Source |
15kHz | 2600W | 75MM | electric control | 220V±10% | 2kgf-8kgf |
15khz | 3200W | 75MM | |||
15khz | 4200W | 100MM | |||
20kHz | 2500w | 75MM | |||
20kHz | 3000w | 75MM | |||
30KHz | 1200W | 75MM | |||
35KHz | 1200W | 75MM | |||
40KHz | 800W | 75MM | |||
Operation interface:7 inches touch screen |
1. The ultrasound welding machine has three welding modes: time, energy, grounding;
2. With two trigger modes: delay, pressure;
3. Three amplitude managements: staged amplitude, adjusted amplitude, compensated amplitude;
4. Quality management: time, energy;
5. Safety managements: power overload protection, supply voltage protection, transducer voltage protection;
6. This ultrasonic plastic welding machine is stable with high performance.
Application:
1. Electronics plastic parts
Prepaid water meter, SD Card, CF Card, USB Connector, Communication equipment, Cordless phone, USB flash disk, Bluetooth Device, Phone accessories, Phone shell, Battery case, Charger, Repair valve adjustable Lead Acid battery, 3-inch Floppy Disk, etc.
2. Car industry
Plastic car body components, bumpers, cables, plastic filters for motorcycles, car door, automotive instruments, car lights; mirror, sun shield, decoration pieces, filters, reflecting materials, brake fluid header, oil cup, water tank, fuel tank, air hose, exhaust purifier, trays, etc.
3. Stationery
Folders, albums, folding box, PP hollow plate, pen ring, ink cartridge, ink cartridge, etc.
4. Health care products
Children's supplies, air mattresses, clothing hangers, gardening supplies, shower, shower nozzles, etc.
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
