Product Details:
|
| Product Name: | 35KHz Ultrasonic Generator | Frequency: | 35KHz |
|---|---|---|---|
| Power: | 1000W | Triggering Method: | Time |
| Dimension(L*W*H)mm: | 245mm*410mm*140mm | Voltage(V): | AC220V±5% 50/60Hz |
| Weight(kg): | 6.7kg | Keyword: | 1000W Ultrasonic Generator |
| High Light: | 1kW Ultrasound Power Supply,Ultrasonic Power Supply 35kHz,35kHz Ultrasound Power Supply |
||

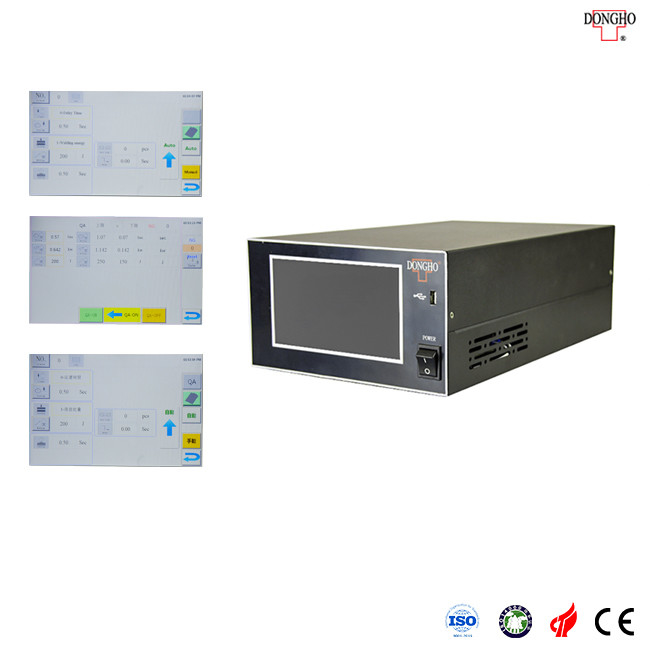

35kHz 1000W Digital Ultrasonic Generator Ultrasound Power Supply
The digital ultrasonic welding generator has a compact structure, simple and elegant appearance, support for scanning gun record welding data tracing. Functions of different modules can be clearly identified, making parameter setting more convenient.
Technical Parameters:
| Product Name | Digital Ultrasonic Generator |
| Frequency | 35KHz |
| Power | 1000W |
| Triggering Method | Time |
| Welding Method | Time/Energy/Power |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension(L*W*H)mm | 245mm*410mm*140mm |
| Weight(kg) | 6.7kg |
Features:
* Real-time frequency automatic tracking
* Welding amplitude 10%-100% adjustable (1% accuracy)
* Mold impedance analysis + protection
* Overload protection
* Voltage and transducer voltage protection
More models are available:
| Model | GW-AG1530 | GW-SG1530 | GW-AG2020 | GW-SG2020 | GW-AG3510 | GW-SG3510 |
| Specification | ||||||
| Frequency | 15KHz | 15KHz | 20KHz | 20KHz | 35KHz | 35KHz |
| Power | 3000W | 3000W | 2000W | 2000W | 1000W | 1000W |
| Triggering Method | Time |
Time, position |
Time |
Time, position |
Time |
Time, position |
| Welding Method |
Time/Energy /Power |
Time/Energy /Absolute Position |
Time/Energy /Power |
Time/Energy /Absolute Position |
Time/Energy /Power |
Time/Energy /Absolute Position |
| Voltage(V) | AC220V±5% 50/60Hz | |||||
|
Dimension (L*W*H) |
245mm*410mm*140mm | |||||
| Weight(kg) | 6.7kg | |||||
