Product Details:
|
| Product Name: | Portable Ultrasonic Plastic Welder | Output Interface: | 7" Color Touch Screen |
|---|---|---|---|
| Parameter Management: | 99 Sets | Frequency(KHz): | 35KHz |
| Power Range(W): | ≤1000W | Max Welding Time(S): | ≤6S |
| Cooling System: | Vortex Cooling | Quality Control: | Time/Energy |
| Relative Humidity: | 30% - 95%, Condensate Free | Voltage(V): | AC220V±5% 50/60Hz |
| Tranduction Ratio: | 90% < Real Ratio < 100% | Welding Area(φmm): | Depends On Material/shape, Usually Within 30mm |
| High Light: | 7" Touch Screen Ultrasonic Spot Welder,35kHz Ultrasonic Spot Welder,Vortex Cooling Ultrasonic Spot Welder |
||

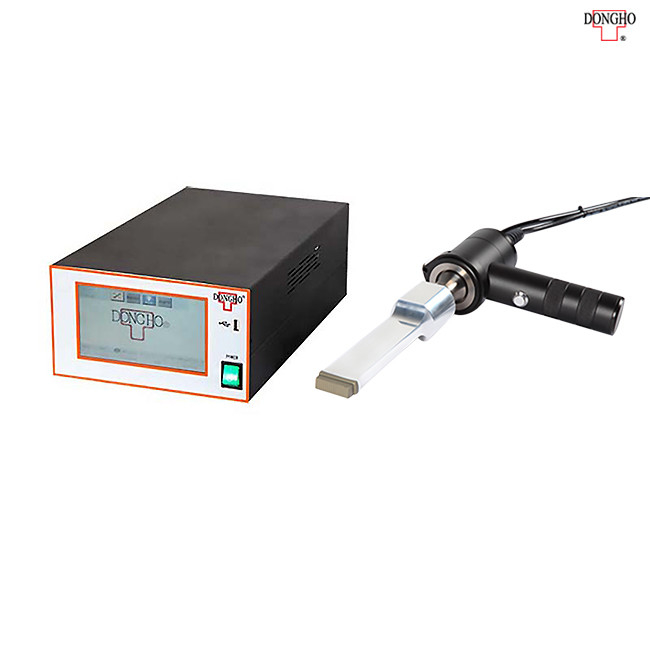

35khz Digital Ultrasonic Handheld Spot Welding Machine For Plastic Welding
The GSH series of DONGHO is a manual handheld ultrasonic spot welding machine designed for flexible deployment in the plastic welding field.
The digital generator has a very intuitive 7-inch colored touch screen, and the ultrasound generator GSH has the built-in time, energy mode, which could freely program the beginning and end of ultrasonic welding. Its intelligence technology could produce higher quality and repeatable welding effect, the use of system provides excellent performance, precision, and reliability, easy to use and reduces the fatigue by reducing the operations.
Technical Parameters:
| Hardware | |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Frequency(kHz) | 35KHz |
| Power(W) | 1000W |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Max Welding time(S) | ≤6S |
| Cooling system | Vortex cooling |
| Generator alert | Frequency Error/Over current/Power overload |
| Relative humidity | 30% - 95%, condensate free |
| Operation temperature | +5℃ - +55℃ |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension(L*W*H)mm | 55*110*160mm |
| Weight(kg) | 6KG |
| Controller | |
| Language(icon) | 1) Chinese 2) English |
| Welding method | Time/Energy |
| Power range(W) | ≤1000W |
| Amplitude control | Single-stage amplitude(10~100%) |
| Quality control | Time/Energy |
| Parameter management | 99 sets |
| Transducer | |
| Warranty | 1 year |
| Brand | DONGHO |
| Transduction ratio | 90% < real ratio < 100% |
| Horn | |
| Frequency precision(kHz) | 34.80KHz-35.20KHz |
| Welding area(φmm) | Depends on material/shape, usually within 30mm |
| Product size | Depends on material/shape, usually within 30mm |
| Data collection | |
| System data display | welding data section |
| Product identification | Barcode/QR code |
| Barcode scanner supported | Honewell/Code Reader/Datalogic/Infoscan |
| Memory capacity | 1500strokes/cycle |
| Transfer memory data | USB saving/reading |
Features:
* Portable, compact design;
* With digital ultrasonic generator technology;
* Low weight, ergonomically designed handle;
* 20kHz,35kHz available;
* Easy to use by reducing the operations.
Application:
| Field | Specific Application |
| Apparel | Clothing fabric, underwear spot welding, etc. |
| Label | Logo, woven labels, marks welding or spot welding, etc. |
| Shoe material | TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc. |
| Poultry | Chicken manure belt, egg conveyor belt welding, etc. |
| Automobile | Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc. |
| Electronic | Plastic parts, rubber column riveting, soundbox covering cloth welding, etc. |
| Packaging | PVC spot welding, plastic box sealing welding, etc. |
| Non-woven | Face mask, non-woven bag welding, etc. |
| Ribbon | Ribbon, elastic belt welding |
| Filter net or bag | Velcro welding, film welding, etc. |
