Product Details:
|
| Product Name: | Portable Ultrasonic Plastic Welding Machine | Frequency(KHz): | 35KHz |
|---|---|---|---|
| Power Range(W): | ≤1000W | Max Welding Time(S): | ≤6S |
| Voltage(V): | AC220V±5% 50/60Hz | Tranduction Ratio: | 90% < Real Ratio < 100% |
| Cooling System: | Vortex Cooling | Quality Control: | Time/Energy |
| High Light: | 35KHz Handheld Ultrasonic Welding Machine,Straight Handle Handgun Ultrasonic Spot Welder,35KHz Portable Ultrasonic Welding Machine |
||

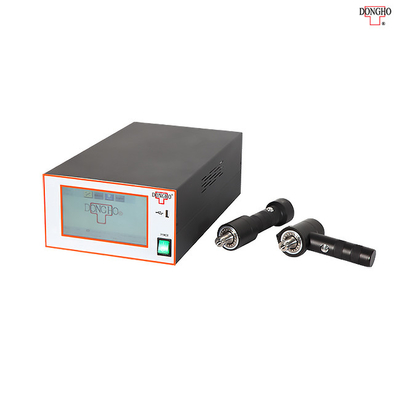

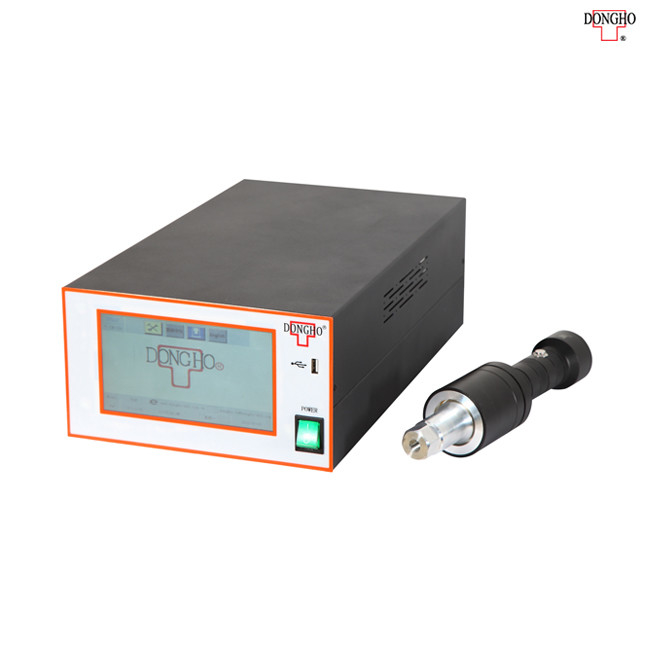

35KHz Ultrasonic Spot Welding Machine For Plastic Welding With Straight Handle Handgun
35khz Digital Ultrasonic Handheld Spot Welding Machine With Straight Handle Handgun
The GSH series of DONGHO is a manual handheld ultrasonic spot welding machine designed for flexible deployment in the plastic welding field.
The digital generator has a very intuitive 7-inch colored touch screen, and the ultrasound generator GSH has the built-in time, energy mode, which could freely program the beginning and end of ultrasonic welding. The Straight Handle Handgun of the spot welder is easy to operate, the demission of the handgun welder is φ50 220mm, and we can also choose a gun-type ultrasonic spot welder, just according to user preference.
The ultrasonic spot welding machine can be equipped with different versions for specific applications with extremely low weight and ergonomically designed handles, including compressed air cooling in the converter, suitable for applications requiring standard or customized machines with maximum physical flexibility, it can be used in combination with digital generator technology, the commonly used frequency is 20 and 35kHz with 1000W, 2000W power output.
Technical Parameters:
| Hardware | |
| Output interface | 7" color touch screen |
| Control System | iQS operating system |
| Frequency(kHz) | 35KHz |
| Power(W) | 1000W |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Max Welding time(S) | ≤6S |
| Cooling system | Vortex cooling |
| Generator alert | Frequency Error/Over current/Power overload |
| Relative humidity | 30% - 95%, condensate free |
| Operation temperature | +5℃ - +55℃ |
| Voltage(V) | AC220V±5% 50/60Hz |
| Dimension(L*W*H)mm | φ50 220mm |
| Weight(kg) | 6KG |
| Controller | |
| Language(icon) | 1) Chinese 2) English |
| Welding method | Time/Energy |
| Power range(W) | ≤1000W |
| Amplitude control | Single-stage amplitude |
| Quality control | Time/Energy |
| Parameter management | 99 sets |
| Transducer | |
| Warranty | 1 year |
| Brand | DONGHO |
| Transduction ratio | 90% < real ratio < 100% |
| Horn | |
| Frequency precision(kHz) | 34.80KHz-35.20KHz |
| Welding area(φmm) | Depends on material/shape, usually within 30mm |
| Product size | Depends on material/shape, usually within 30mm |
| Data collection | |
| System data display | welding data section |
| Product identification | Barcode/QR code |
| Barcode scanner supported | Honeywell/Code Reader/Datalogic/Infoscan |
| Memory capacity | 1500strokes/cycle |
| Transfer memory data | USB saving/reading |
Features:
* Portable, compact design;
* With digital ultrasonic generator technology;
* Low weight, ergonomically designed handle;
* 20kHz,35kHz available;
* Easy to use by reducing the operations.
Application:
| Field | Specific Application |
| Apparel | Clothing fabric, underwear spot welding, etc. |
| Label | Logo, woven labels, marks welding or spot welding, etc. |
| Shoe material | TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc. |
| Poultry | Chicken manure belt, egg conveyor belt welding, etc. |
| Automobile | Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc. |
| Electronic | Plastic parts, rubber column riveting, soundbox covering cloth welding, etc. |
| Packaging | PVC spot welding, plastic box sealing welding, etc. |
| Non-woven | Face mask, non-woven bag welding, etc. |
| Ribbon | Ribbon, elastic belt welding |
| Filter net or bag | Velcro welding, film welding, etc. |
Our Advantages:
1. More than 25 years ultrasonic welding machine manufacture experience;
2. Our company has passed ISO9001 quality management system, ISO1400 environmental management system, CE certification;
3. Technical staffs have more than 25-year experience in ultrasonic devices research, development, and manufacture;
4. First-class sales team, providing customers with valuable products and services;
5. High-quality promise, At least one-year Warranty for machines and 3 months warranty for tooling;
6. Professional after-sales service team, lifelong technical support.
