Product Details:
|
| Product Name: | Handheld Ultrasonic Welding Machine | Frequency: | 30khz |
|---|---|---|---|
| Power: | 1200W | Voltage: | 220V+-10% |
| Key Word: | Ultrasonic Hand Held Welding Machine | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 30kHz Portable Ultrasonic Welding Machine,1200W Handheld Ultrasonic Welding Machine,1.2kW Portable Ultrasonic Welding Machine |
||

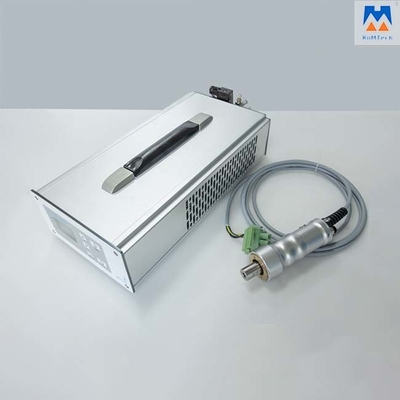

30kHz Portable Ultrasonic Handheld Welding Machine
30KHz Ultrasonic Hand Welder For Plastic ABS PP PVC Welding
Ultrasonic technologies are not only quick and efficient but also extremely eco-friendly for processing thermoplastics, films, and fabrics. The principle of the technology is based on the generation of internal heat (molecular friction) by ultrasound and the boundary friction in the join or separation zones of thermoplastics.

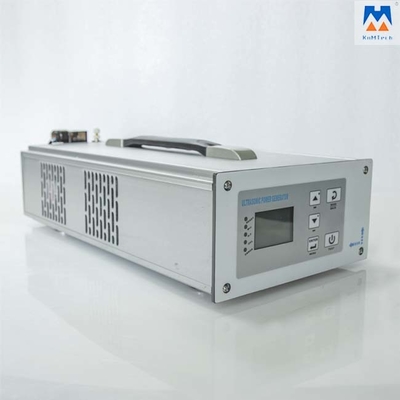

The ultrasonic spot welder has a digital ultrasonic power supply that has auto-tuning frequency tracking and overload voltage protection, transducer voltage protection function. The Spot Welding machine can be used for welding apparel, Label, shoe material, Poultry, Automobile, Electronic, Packaging, Non-woven, Ribbon, Filter net or bag, etc.
Technical parameters:
| Frequency | Power | Frequency | Voltage | Air Source |
| 30kHz | 1000w | 29.30-30.30Khz | 220V+-10% | compressed air |
| 35kHz | 1000w | 34.20-35.40Khz | 220V+-10% | |
| 40kHz | 800w | 49.20-40.40Khz | 220V+-10% |
Application:
Our 30KHz auto-tuning ultrasonic hand welder can be used for Welding, Joint, Embedding, Spot-welding, Cutting. Welding materials such as acrylonitrile-butadiene-styrene (ABS), polystyrene(PS), SNA, non-woven fabrics, nylon, polyester, paper, leather, PVC, pp, etc.
