Product Details:
|
| Product Name: | Handheld Ultrasonic Welding Machine | Frequency: | 30khz |
|---|---|---|---|
| Power Range: | <=1200W | Cooling Way: | Air Cooling |
| Key Word: | Ultrasonic Welding Machine | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | Air Cooling Handheld Ultrasonic Welding Machine,1200W Handheld Ultrasonic Welding Machine,Air Cooling Ultrasonic Spot Welding Machine |
||

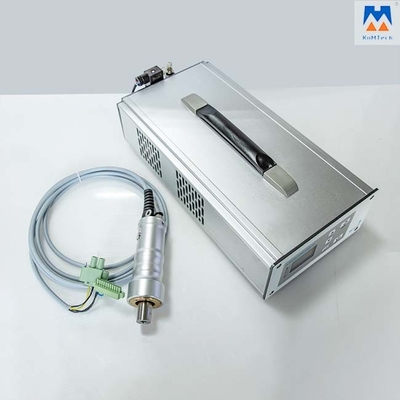

1200W Handheld Ultrasonic Welding Machine For Plastic Welding
30kHz 1200W Ultrasonic Spot Welding Machine For Plastic Parts
Ultrasonic technologies are not only quick and efficient but also extremely eco-friendly for processing thermoplastics, films, and fabrics. The principle of the technology is based on the generation of internal heat (molecular friction) by ultrasound and the boundary friction in the join or separation zones of thermoplastics.

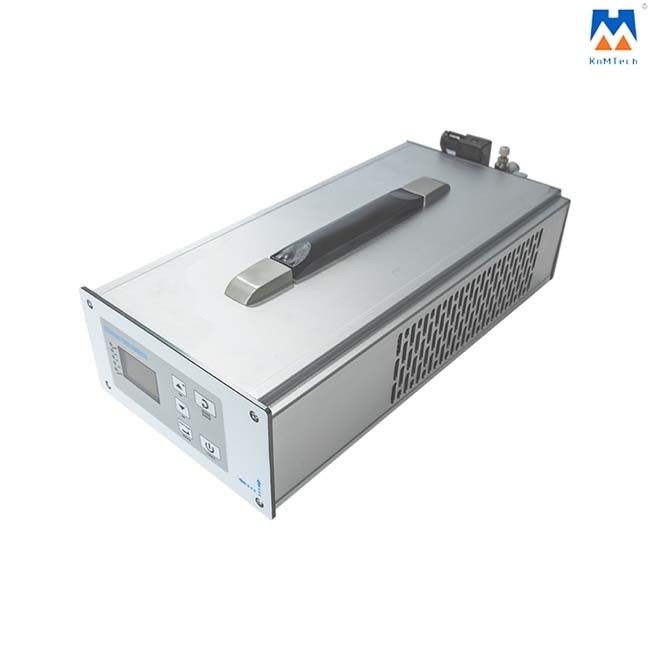

This digital ultrasonic spot welding machine has a digital power supply that is easy to use with many functions for you to use. The ultrasonic generator has a real-time frequency tracking function, and the welding time is adjustable, cooling time is adjustable, can be used in different areas such as the automotive industry, electronic industry, packaging industry, and so on.
Technical parameters:
| Frequency | Power | Frequency | Voltage | Air Source |
| 30kHz | 1200w | 29.30-30.30Khz | 220V+-10% | compressed air |
| 35kHz | 1000w | 34.20-35.40Khz | 220V+-10% | |
| 40kHz | 800w | 49.20-40.40Khz | 220V+-10% |
Features:
* Welding time is adjustable
* Cooling time is adjustable
* Amplitude compensation
* Overload protection
* Voltage protection
* Transducer voltage protection
* Welding electrode impedance analysis +protection
* Welding amplitude adjustable 10%-100% (1% accuracy)
* Real-time frequency automatic tracking function.
Application:
| Field | Specific Application |
| Apparel | Clothing fabric, underwear spot welding, etc. |
| Label | Logo, woven labels, marks welding or spot welding, etc. |
| Shoe material | TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc. |
| Poultry | Chicken manure belt, egg conveyor belt welding, etc. |
| Automobile | Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc. |
| Electronic | Plastic parts, rubber column riveting, soundbox covering cloth welding, etc. |
| Packaging | PVC spot welding, plastic box sealing welding, etc. |
| Non-woven | Face mask, non-woven bag welding, etc. |
| Ribbon | Ribbon, elastic belt welding |
| Filter net or bag | Velcro welding, film welding, etc. |
