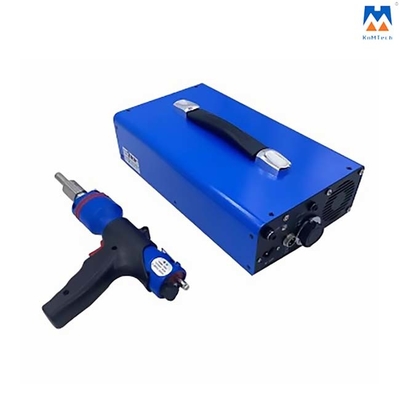

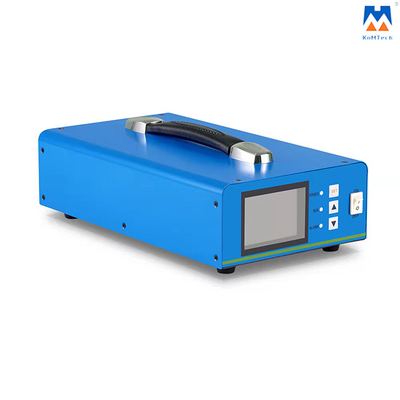

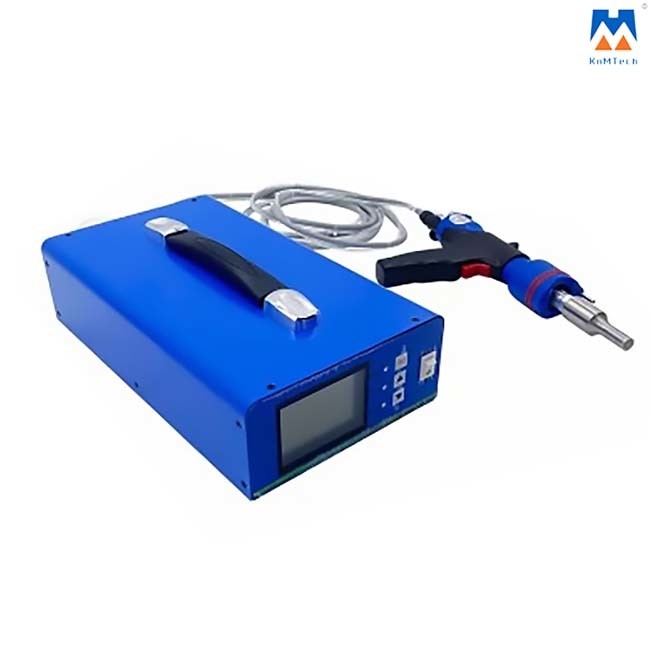

Alu Alloy Supersonic Ultrasonic Spot Welding Machine 35KHz

35KHz China Supersonic Welder Ultrasonic Spot Welding Machine With Good Price

China Supersonic Welder Ultrasonic Spot Welding Machine With Good Price

The ultrasonic plastic spot welding machine is produced using the characteristics and principles of ultrasonic, with small volume, light, and widely used. The ultrasonic plastic spot welding machine is often used in industrial production. It emits ultrasonic waves of a certain frequency to raise the surface temperature of the two parts that need to be combined, and quickly melt. Then stop sending out ultrasonic waves to lower the surface temperature of the parts and bind them together; It not only improves the efficiency of industrial production but also provides convenience for workers.

The welding principle of the ultrasonic plastic welding machine is to transform the electric energy into a high-frequency current through the ultrasonic generator, and then use the transducer to transform the current into the same frequency mechanical movement, and then pass to the ultrasonic welding head through the amplitude booster.

Technical parameters:

Features:

1. Large LCD display, more comprehensive parameters;
2. External control, spot welding, dual-mode switch;
3. Unique three-stage frequency tracking, range up to 2K width;
4. Built-in blowing device, effectively reduce the temperature rise of the transducer, mold, prolong the service life;
5. The core of the machine adopts STM32 high-performance processor to achieve high-speed communication, high efficiency, and stability;
6. Reduce the power output delay, improve the stability of ultrasonic work;
7. Dual-use hand-held welding gun, gun/straight handle can be switched at will

Application:
