Product Details:
|
| Product Name: | Ultrasonic Power Supply For Ultrasound Cleaning Machine | Frequency: | 20-40K(Conventional Models) 40-120K(High Frequency) |
|---|---|---|---|
| Dimension(mm): | L323*W214*H117 | Gross Weight: | 7kg |
| Power Range: | 0-3000W | Current: | 0-10A |
| Uasge: | Ultrasonic Cleaning Machine | Keyword: | Ultrasonic Power Supply For Ultrasonic Cleaner |
| High Light: | digital ultrasonic generator 3000W,Jewelry Cleaning Ultrasonic Power Supply |
||

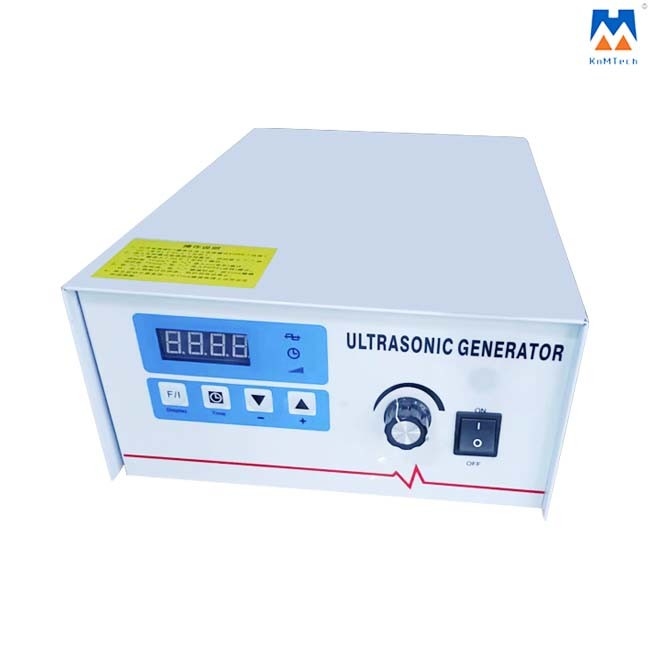

Digital Ultrasonic Generator 3000W Available For Electronic Watch Jewelry Ultrasonic Cleaning
Digital Ultrasonic Cleaning Machine Power Supply For Electronic Watch Jewelry Cleaning
An ultrasonic generator is a kind of equipment that converts the city electricity to the transducer with a high-frequency alternating current to drive the transducer. It is an important part of the high-power ultrasonic system. This is an automatic frequency sweeping ultrasonic cleaning generator for ultrasonic cleaners, power with infinite precision and adjustable, supports standard MODBUS protocol 485 communication;
Technical parameters:
| Product name | Ultrasonic Power Supply for Cleaning |
| Input Voltage | 220V AC,50/60HZ 110V optional |
| Input Power | 0-3000W available |
| Input Current | 0-10A |
| Frequency | 20-40KHz(Conventional models) 40-160KHz(High Frequency) |
| Working Temperature | 0-45°C |
| Dimension(mm) | 370*280*150 |
| Weight | 7kg |
Features of the ultrasonic power supply:
1. Frequency tracking: when the frequency deviation of the transducer is within the range of plus or minus 1.5khz, the generator can automatically adapt to the frequency change of the transducer without adjusting the frequency.
2. Current stable loop: this machine is equipped with a loop stable circuit, no matter the generator in the load or water temperature and supply voltage changes, the current can be stable to the specified parameters within 0.1a. It is very critical for the quality stability of cleaning products.
3. Equipped with EMI circuit, and USES the phase-shifting full-bridge technology to adjust the power, can make the generator is to minimize the interference of the outside world, compared with the traditional thyristor adjustable power circuit, which can be completely rid of silicon controlled rectifier circuit in the 90 s and 270-degree phase produced during the opening near serious surge current and its derivative of conduction and radiation harassment. And minimize the interference to PLC and other electrical appliances.
Application:
The digital ultrasonic cleaning generator has a high frequency and has a wide range of applications such as resistors, capacitors, electronic equipment, magnetic equipment, low voltage electrical products, watches, glasses, jewelry, plastic ceramics, pipes, air conditioners, refrigerator accessories, water heaters, cookers, electric cookers, induction cookers, electric fans, juicers, electric irons cleaning, etc.
