Product Details:
|
| Product Name: | High Power Ultrasonic Plastic Welder | Frequency Accuracy: | 14.80KHz-15.200KHz |
|---|---|---|---|
| Power: | 6000W | Triggering Method: | Time |
| Welding Method: | Time/Energy | Max Working Stroke(mm): | 100mm±1mm |
| Max Welding Time: | 5s | Voltage(V): | AC220V±5% 50/60Hz |
| Highlight: | High Power Ultrasonic plastic welder,high power pvc welder,6000W ultrasonic plastic welder |
||

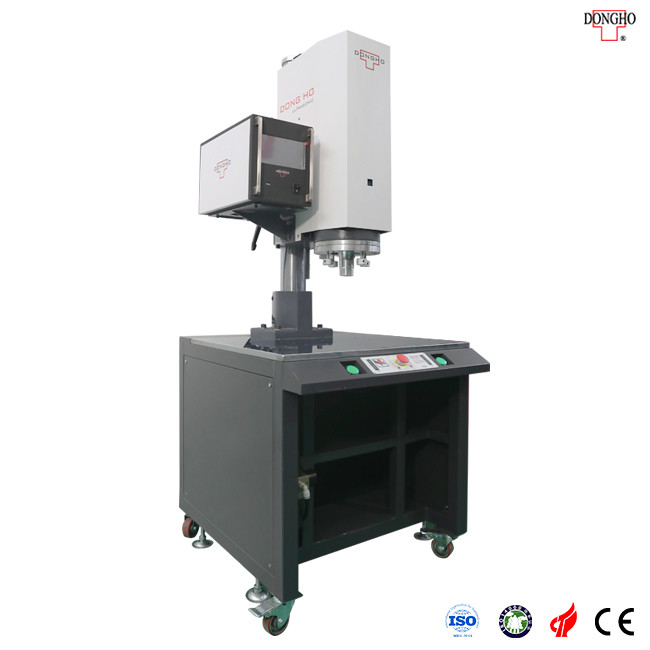

High Power 6000W Ultrasonic Plastic Welder PVC Welding Machine For Large Plastic Parts
Technical Parameters:
| Model | iBA-THF1560 |
| Frequency accuracy | 14.80KHz-15.200KHz |
| Power | 6000W |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | 100mm±1mm |
| Max Welding Time | 5s |
| Booster Amplification ratio | 1:4.0 |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Amplitude control | Single-stage amplitude |
| Air pressure control | pressure regulating valve |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Weld area | Per material/shapes, not more than 350mm |
| Controler | |
| Language(icon) | 1) Chinese 2) English |
| Unit of force | Kgf |
| Triggering method | Time |
| Welding method | Time/Energy |
| Power range(W) | ≤6000W |
| Max Welding time(S) | 5S |
| Amplitude control | Single-stage amplitude |
| Quality control | Time/Energy/Power |
| Pre-press vibration | - |
| Welding curve | - |
| Operating air method | Standard |
| Air pressure range(kgf) | 0.5kgf ≤ 8kgf |
| Holding method | Static pressure holding |
| Parameter management | 99 sets |
| Accessory expanaion (optional) | 1. Automatic film winding function 2. Raster protection function 3. Sound-proof shield function |
Description:
Ultrasonic plastic welding technology is very good and with wide future, the modern manufacturing technology is developing rapidly, all kinds of arts and crafts, plastic in everyone daily life of all walks of life, and the ultrasonic welding can be widely used in medical, aviation, ships, automobiles, telecommunications, printing consumables, electrical appliances, packaging, toys, stationery, electronics, textile, and other industries.
Advantages of Ultrasonic welding:
Ultrasonic welding is a fast, clean, high-reliability assembly process, that has the following advantages:
1) Fast welding speed and high efficiency. Most ultrasonic welding can be completed within 0.1 ~ 0.5 s;
2) Low cost. Ultrasonic welding is a very economical way to assemble plastic parts because of its high efficiency, low labor cost, and the use of a lot of fixtures, adhesives, or mechanical fasteners are eliminated.
3) High strength. Ultrasonic welding can almost reach more than 80% of the strength of plastic parts;
4) Reasonable plastic parts design can make ultrasonic welding to achieve waterproof effect;
5) Good surface quality, beautiful solder joints, can achieve seamless welding;
6) Simple process, simple operation, can realize automatic welding;
7) Stable quality, stable and reliable product quality, suitable for mass production;
8) Ultrasonic welding process is clean, stable, reliable, and low energy consumption.
