Product Details:
|
| Product Name: | 20KHz 2500W Stainless Ultrasonic Transducer | Frequency: | 20KHz |
|---|---|---|---|
| Input Power: | 2500W | Material: | Stainless Steel |
| Weight: | 5kg | Working Environment Temperature: | -10 ~ 60 ºC |
| Usage: | Plastic Welding,match Welding Machine | After-sales Service Provided: | Video Technical Support |
| High Light: | 2.5KW Ultrasonic Piezo Transducer,Fabric Welding Ultrasonic Piezo Transducer,KnMTech Ultrasonic Transducer |
||
High-performance ultrasonic transducer piezoelectric Ceramic Converter
The transducer converts the high-frequency electrical energy into mechanical vibration. The characteristics of the transducer depend on the selection of materials and the production process, so the performance and service life could be infinitely different even the transducers are of the same size and same shape. The commonly used high-power ultrasonic transducer is used in ultrasonic plastic welding machines, ultrasonic metal welding machines, various hand-held ultrasonic tools, continuous ultrasonic emulsification homogenizers, atomizers, ultrasonic engraving machine, and many other types of equipment. The commonly used frequencies are 15kHz 20kHz, 28kHz, 35kHz, 40kHz,55kHz,70kHz, etc.
There are many parameters in a transducer, among them, some are mostly attention-driven:
Resonance frequency Fs: the resonance frequency of series branch in the equivalent circuit of a piezoelectric transducer, under this frequency, the impedance of the piezoelectric transducer is minimal. Refer to the frequency value at “Fs” in the below graph.
Half-power point F1 & F2: per the admittance circle graph, the real part is the frequency at Gmax/2, there are two frequencies like this: F1 & F2, F1 <Fs, F2>Fs.
Anti-resonance frequency Fp: the resonance frequency of parallel branch of a piezoelectric transducer, under this frequency, the impedance of the piezoelectric transducer is maximum. Refer to frequency value at “Fp” in the above graph.
Mechanical quality factor Qm: Qm=F2/F2-F1, Fs is resonance frequency, F1 and F2 are the half-power points.
Technical parameters:
| Product Name | 2500w Stainless Ultrasonic Transducer |
| Frequency | 20KHz |
| Input Power | 2500W |
| Material | Stainless Steel |
| Quantity of Ceramic discs | 4 |
| Sound Pressure Level | >95 dB |
| Decay Time | <1.3 Ms |
| Weight | 5kg |
| Working Environment Temperature | -10 ~ 60 ºC |
Features:
1. The piezoelectric ceramic chip adopts imported parts, which can give a strong and stable output.
2. Obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: vibration speed ratio is high.
4. Under the action of the prestressed screw, the piezoelectric ceramic energy get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value
FAQ:
1. What are your delivery terms?
EXW, FOB, CFR, CIF
2. How about payment?
100% in T/T or Paypal prepayment
3. Do you provide samples? Is it free or extra?
Yes, but it has a cost.
4. Could you make it according to our special requirements?
Of course, please offer us your design.
4. What are the delivery methods?
By express, such as DHL, FedEx, TNT, or by air or by sea, per your needs.

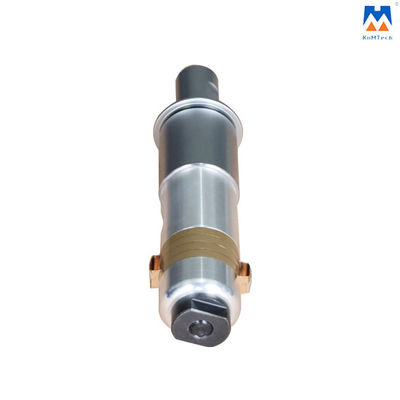

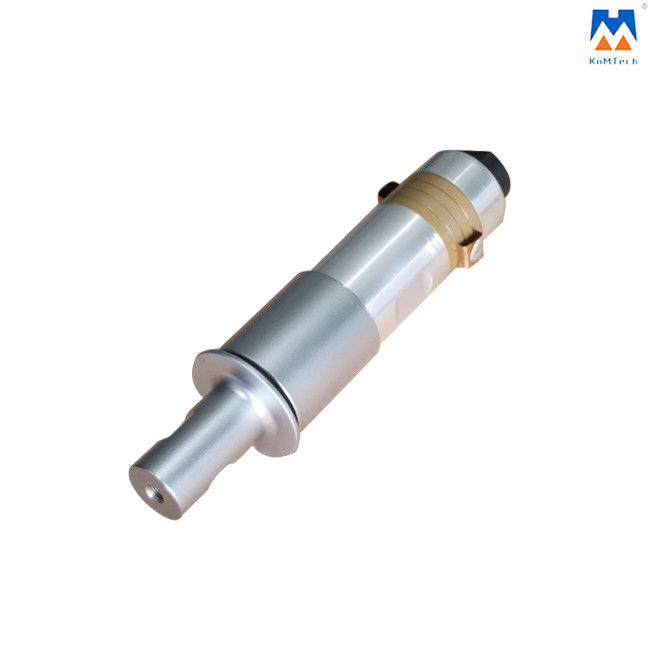

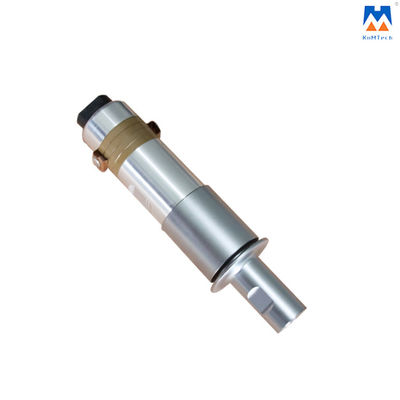

Detailed Photos:
