Product Details:
|
| Product Name: | 3000W Ultrasonic Welding Booster | Power: | 1500W/2000W/3000W |
|---|---|---|---|
| Current: | Alternating Current | Transport Package: | Wood /Paper Carton |
| Application: | Ultrasonic Plastic Welding,Toy,Mobile Power Welding,PP Cup,U Disk | After-sales Service Provided: | Online Support |
| Material: | Titanium/Aluminum | ||
| High Light: | 3000W Ultrasonic Welding Booster,CE Plastic Welding Ultrasonic Booster,3KW Ultrasonic Welding Booster |
||

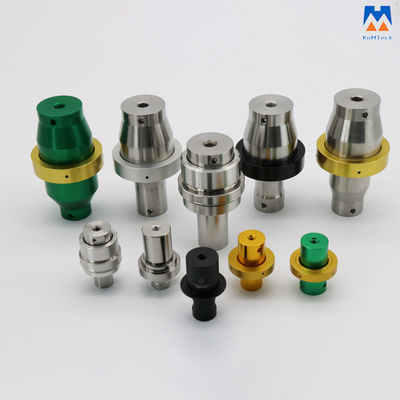

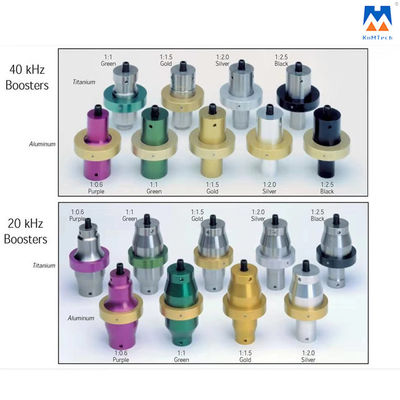

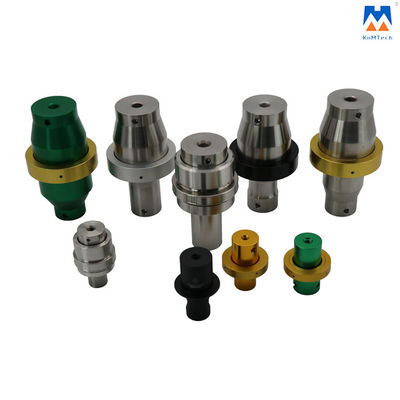

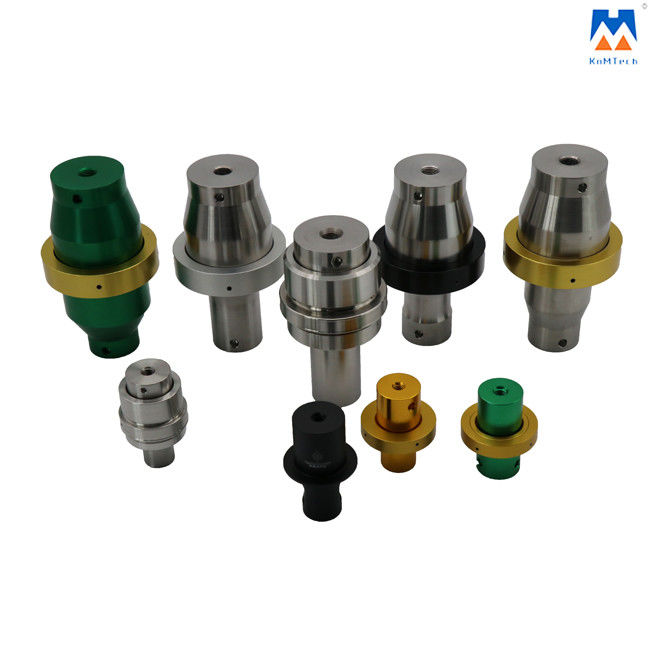

Ultrasonic Booster for Ultrasonic Welding Machine
What is a booster?
A booster is a one-half-wave length long resonant section made of aluminum or titanium. It modifies the amplitude of vibration applied to the horn.
Where is it located?
The booster is mounted between the converter and horn.
How does it work?
To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point.
A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing.
A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing.
Clamped at their nodal point, the booster provides rigid support for the converter/horn assembly.
Technical parameters:
| Precision | Precision | Certification | CE |
| Demoulding | Automatic | Heating System | Ultrasonic Plastic Welder |
| Mould Life | <300,000 shots | Automatic Grade | Semi-automatic |
| Condition | New | Customized | Customized |
| Warranty | 12 Months | Frequency | 20kHz |
| Power | 1500W/2000W/3000W | Horn Material | Customized |
| Current | Alternating Current | Model | Ultrasonic Plastic Welder |
| Application | Plastic/Fabric Welding | Trademark | KnmTech |
| Transport Package | Wood or paper carton | Quality Check | Visual and by test device |
Detailed Photos:
