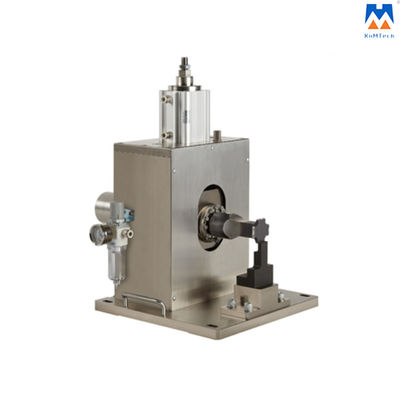

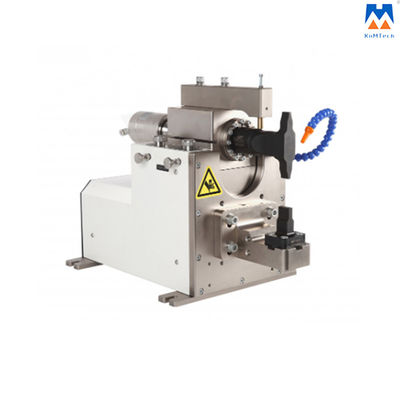

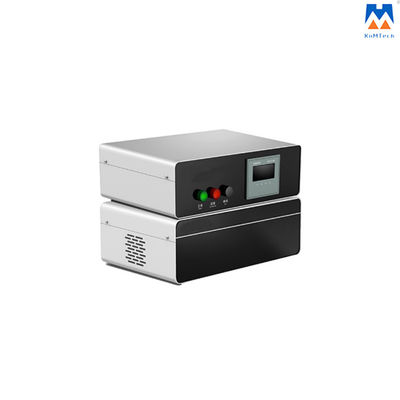

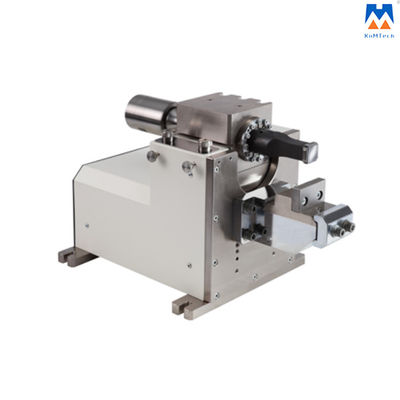

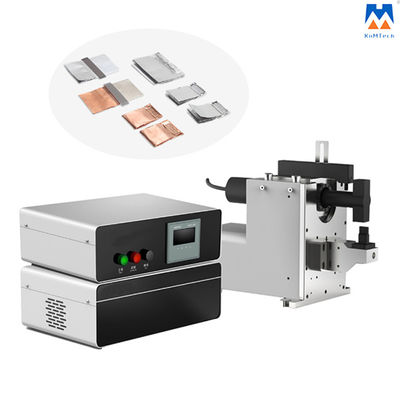

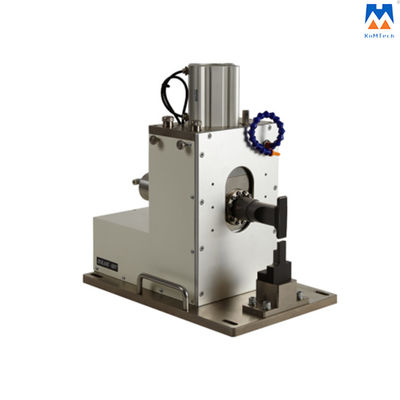

High Quality Ultrasonic Metal Welding Machine Wire Harness Welder

High Quality Ultrasonic Metal Welding Machine Wire Harness Welder
High Quality Ultrasonic Metal Welding Machine Wire Harness Welder
High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder High Quality Ultrasonic Metal Welding Machine Wire Harness Welder

Large Image :  High Quality Ultrasonic Metal Welding Machine Wire Harness Welder

Product Details:
Place of Origin: China
Brand Name: KnMTech
Model Number: KM-2ES-SWS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: paper/wood carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets per month

High Quality Ultrasonic Metal Welding Machine Wire Harness Welder

Description
Product Name: Ultrasonic Metal Wire Harness Welder Frequency: 20KHz
Control mode: Timing/energy Pressure range: 0.05Mpa~0.5Mpa
Air supply: >0.6Mpa Dry And Clean Air Welding power: 4kW~5.5kW
Highlight:

1000W Ultrasonic Metal Wire Harness Welder

,

3.6Kg Ultrasonic Metal Wire Harness Welder

,

20KHz Ultrasonic Metal Wire Harness Welder

20kHz High-Quality Ultrasonic Metal Welding Machine Wire Harness Welder



The digital ultrasonic metal welding machine can be used in welding fields such as PACK welding, flexible connection sheets, solar panels, wire terminals, IGBT power modules, transformers, capacitors, connectors, heat sinks, copper tube sealing, battery coils, etc.



Technical parameters:



Item 20KHz Ultrasonic Metal Welder
Model KM-2ES-SWS9710, KM-2ES-SWS9810
Welding frequency 20kHz±300Hz
Welding power 4kW~5.5kW
Control mode Timing/energy
Amplitude adjustment range 50%~100%
Cooling type air cooling
Pressure range 0.05Mpa~0.5Mpa
Welding time range 0.05~9.99s
Air supply >0.6Mpa dry and clean air
Power supply Three-phase, five lines 380V 50/60Hz
Operating temperature 10ºC~45ºC
Operating humidity 10%~85% RH
RS232 communication interface DB9 interfaces, communication with host computer
Ethernet interface Communication with host computer



Features:



1. The ascending and descending speed can be precisely controlled and adjusted.
2. Accurate positioning of upper and lower positions of welding mechanism.
3. When the voltage fluctuates, the ultrasonic generator can automatically compensate the output voltage value to ensure stable amplitude output of the welding horn section.
4. The automatic cooling device can reduce the accumulation of heat when the equipment is operated at high speed.
5. Precise energy control method can ensure the stability of each welding and reduce the influence of external factors.
6. Unique ultrasonic welding unit design can maximize the conversion of ultrasonic energy to the welded product.
7. Available with multiple optional models, optional welding quality monitoring system.





FAQ:



1. Your MOQ of the ultrasonic metal welding machines?
We don't set MOQ, just depends on your needs.
2. How about your delivery time of the ultrasonic
metal welding machines?
From 3 to 15 days depending on the material to be used and the processing technologies.
3. Can we be your agent for ultrasonic
metal welding machines in our country or city?
Of course. We are looking for agents and distributors around the world who have the willingness to cooperate with us for a long business term.
4. How do you guarantee your quality?
We have exported to many other customers from all over the world, the feedback is good, quality is the first of our company.
