Product Details:
|
| Product Name: | 15KHz Ultrasonic Plastic Welding Machine | Power: | 2200W |
|---|---|---|---|
| Frequency: | 15KHz | Welding Time: | 0-9.99s Adjustable |
| Voltage: | 220V/50HZ | Warranty: | One Year For The Machine |
| Size: | L1120mm*W8600mm*H2060mm | Usage: | Single Phase Meterboxes Backplate |
| High Light: | PLC HMI Ultrasonic Welding Machines,220V 50HZ Ultrasonic Welding Machines,650KG ultrasonic plastic welding machine |
||
15KHz Ultrasonic Plastic Welding Machine Meter box Welding
Technical parameters:
| Product Name: | 2200W Ultrasonic Welding Machines |
| Ultrasonic systems : | 15Khz, 2200W |
| Control : | HMI+PLC |
| Input power : | R+S+T+N+PE AC380V |
| Input current : | 16A |
| Control power : | DC24V |
| Depth control : | cylinder |
| limitation bolt | |
| Size : | L1120mm*W8600mm*H2060mm |
| Weight : | 650KG |
Features:
* Each staking head can be controlled separately.
* Pneumatic control for the fixture movement.
* Quick change of the fixtures for different product staking.
* High-quality components are used for stable operation and long service life.
The ultrasonic plastic welding process is a clean, fast, more convenient, and effective technology, the equipment is mainly used to deal with thermoplastic plastic parts and some synthetic components of the processing.
Advantages of ultrasonic plastic welding machine: more energy-saving and environmental protection, welding plastic smokeless, will not affect the overall welding effect. Lower cost, high efficiency, easy to achieve most of the enterprise pursuit of automatic production, for the body welding, high strength, better airtightness, more mechanical welding parameters set, the operation is very convenient. Work steps are shortened, there is no need for preheating, cleaning, and other processes before and after.
This ultrasonic plastic welding machine for meter box welding is customized for meter box back case welding. The power is 2600W, we use 2-horn and 2-generator for welding the four sides of the single-phase meter box backplates.
Application:
This 2200W Ultrasonic Plastic Welding Machine can be used for meter box backplate welding.
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. What's the warranty of your ultrasonic welding machines?
One-year Warranty with no human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
3. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
4. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.

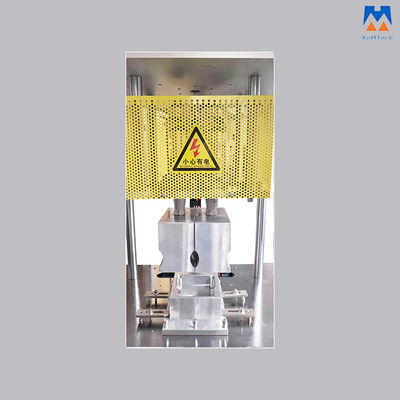

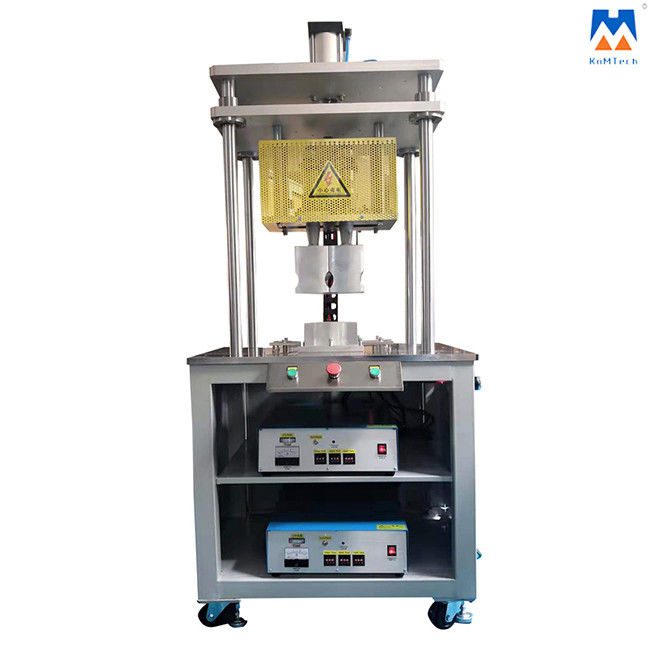

Detailed Photos:
