Product Details:
|
| Product Name: | 20KHz Ultrasonic Metal Welder | Frequency: | 20KHz |
|---|---|---|---|
| Power: | 2000-6000W | Voltage: | AC220V |
| Welding Time: | 0.01-9.99 Sec | Warranty: | 1 Year |
| Key Word: | Ultrasonic Metal Welding | After-sales Service Provided: | Video Technical Support,Online Support |
| High Light: | 20KHz ultra welding machine,6000W Ultrasonic Metal Welder,4000W Metal Ultrasound Welder |
||

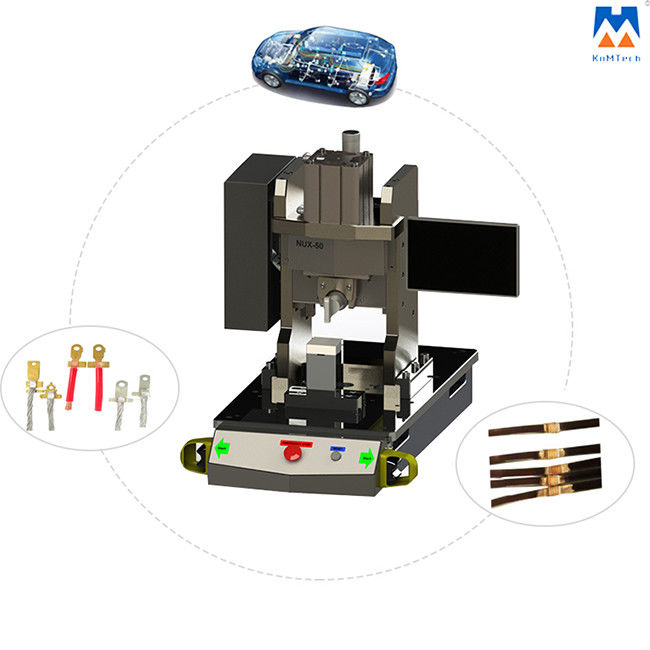

20KHz Digital Auto-Tuning Ultrasonic Metal Welder Ultrasound Welder
Ultrasonic can produce high-frequency vibration, and we use this 20KHz digital auto-tuning ultrasonic metal welder to weld non-ferrous metal easily. When the high-frequency vibration wave is transmitted to the surface of the two metal parts to be welded, with a certain pressure, the two parts' surfaces will have friction on each other which leads to the joint of the molecular layers. The advantage is quick, energy-saving, high joint strength, good conductivity, and no sparkles, which is nearly cold status processing.
Compared with common electrical motors, the transducer has two advantages: firstly, the transducer can convert the electrical energy to linear vibration, not rotation; secondly, it has very high work efficiency, that is, it can convert 95% of the electrical energy. After converting through the transducer, mechanical energy starts to work on the welding horn. Ultrasonic welding horn is made from alloy material, which is made into a certain shape according to acoustic principle.
Technical parameters:
| Product name | Frequency | Power | HMI Size | Voltage |
| Ultrasonic Metal Welder | 20khz |
2000W | 12 | AC220V±5% 50/60Hz |
| 4000W | 10.1 |
3x400V /230 V 3PNE, ±10%;50-60Hz
|
||
| 6000W | 10.1 | 3x400V /230 V 3PNE,±10%;50-60Hz |
Features:
| * Real time frequency auto tracking display |
| * Welding modes: Time, Energy, Grounding, Relative Position, Absolute Position, Maximum Power, Peak Pressure |
|
* Triggering method:Time,Pressure,Position
|
| * Relative humidity: 30%-95% |
| * Position accuracy(mm): Precision ±0.02mm |
| * Generator alert: Abnormal frequency/Over Current/Overloading voltage/Over temperature |
| * Operation temperature:+5ºC-+55ºC |
| * Max. air pressure(mpa): 0.8mpa |
| * Max Welding time(S): 5S |
| * Control System: SIT Smart Control System |
| * Quality control: Time, Energy,Power,Relative Position,Absolute Position |
Application:

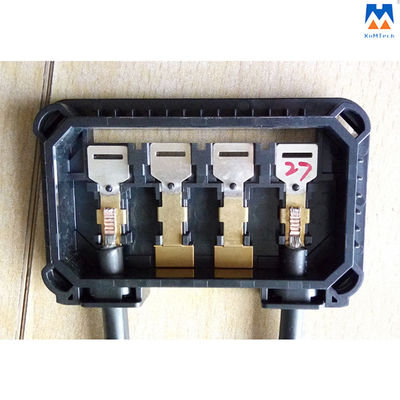

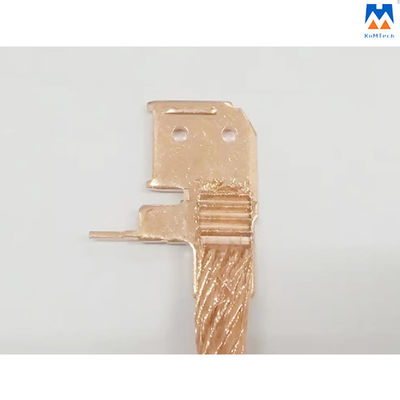

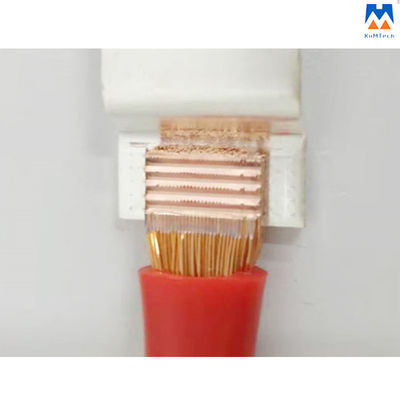

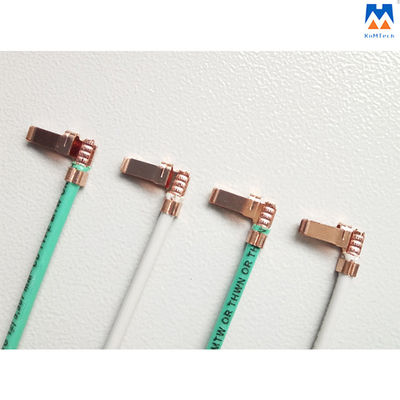

This 20KHz digital auto-tuning ultrasonic metal welder can be used in metal wares, battery, electronics, automobile, motor, and electrical appliance industries, to weld aluminum strip to aluminum cover, nickel strip to copper foil (multiple spots), aluminum strip to aluminum foil (strip shape), aluminum strip to aluminum foil (multiple spots), nickel strip to aluminum strip, nickel strip to copper foil, nickel strip to multiple-layer copper foil, aluminum strip to multiple-layer aluminum foil, aluminum case to alu-nickel strip, nickel strip to multiple-layer copper foil, aluminum strip to multiple-layer aluminum.
FAQ:
1. How can I get your price and catalog of the ultrasonic metal welders?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
2. Can we agent your metal welders in our country or city?
Of course. We are looking for sole agents who are willing to cooperate with us for the long business term.
3. What is your payment method?
100%T/T in advance before shipment.
4. Could you make the metal welding machine according to our special requirements?
Of course, please tell us your idea or your application.
Detailed Photos:
