Product Details:
|
| Product Name: | Hot Plate Welding Machine For Filter End Cap | Power Supply: | 380V 50HZ |
|---|---|---|---|
| Heating Accurary: | ±2ºC | Welding Speed: | 2pcs/min |
| Power: | 3000W | Weight: | About 800Kg |
| Air Pressure: | 5Kg/cm2 | Dimession: | L2000*W1000*H1800 |
| Heating Method: | Electric Heating Tubes | ||
| High Light: | 2pcs/Min Hot Plate Welding Machine,3000W Filter End Cap Welding Machine,2pcs/Min Hot Plate Welding Machine |
||
Hot Plate Welding Machine for Filter End Caps Welding
The filter end cap hot plate welding machine is a pleated microporous membrane filter connector welder, one of the machines in the production line for pleated filters. The welder is used to weld the connectors/spears on both ends of the filter, and after welding, the filter gets good water-tightness. Normally there are triangle connectors, fin connectors,s 222 sealing ring type connectors, 226 sealing ring type connectors, etc. This machine also can be used to weld two kinds of connectors at the same time to increase productivity.
Technical parameters:
| Product Name: | 3000W Touch Screen Hot Plate Welding Machine |
| Model: | KM-AY1640 |
| Power: | 3KW |
| Power supply: | 380V 50HZ |
| Air pressure: | 5Kg/cm2 |
| Heating accuracy: | ±2ºC |
| Temperature scope: | room temperature ~ 400ºC |
| Welding speed: | 2pcs/min |
| Size: | L2000*W1000*H1800 |
| Weight: | about 800Kg |
Details of the components:
| Touch screen +PLC: | Delta from Taiwan |
| Electrical components: | LG from Korea |
| Temperature controller: | Omron from Japan |
| Solid-state relay: | Shimada from Japan |
| Guide rail, guide block: | Hiwin from Taiwan |
| Auxiliary electrical components: | IDEC from Taiwan or Schneider |
| Pneumatic components: | Airtac from Taiwan |
| Protection case: | Europe standard aluminum profile+transparent organic glass |
| Spare parts: | 45# steel (nickel-plated) |
| Filter fixture: | 6061 aluminum sheet (anodized with original color) |
Application:
Filter End Caps, Filter Welding Lines.
FAQ:
1. What's the warranty of your hot plate welding machines?
One year.
2. Can we agent your welding machines in our country or city?
Of course. We are looking for a sole agent in the country who have willing to cooperate with us for a long business term.
3. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
4. Can I have my logo design on the hot plate welding machine?
Sure, OEM is accepted, feel free to send us the artwork.
5. Could you make the welding machine according to our special needs?
Of course, we can do that. Please tell us your idea or your application.

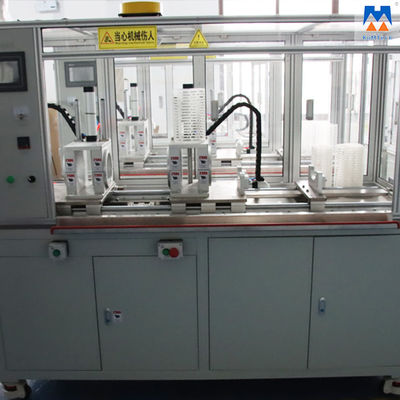

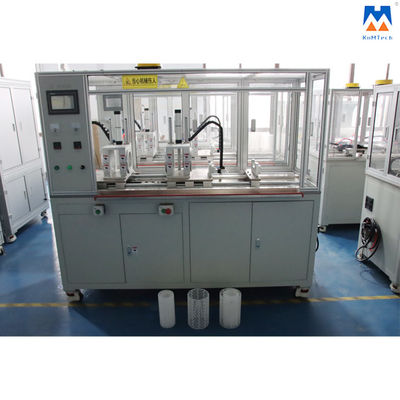

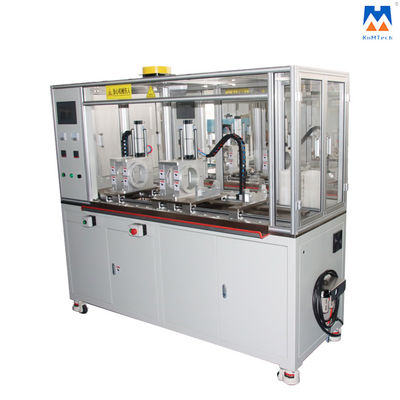

Detailed Photos:
