Product Details:
|
| Product Name: | Hot Plate Welding Machine | Power: | 6000W |
|---|---|---|---|
| Power Supply: | 380V 50HZ | Welding Speed: | About 1 Pcs/30s |
| Size: | L2000*W1000*H1800 | Weight: | About 800Kg |
| Key Words: | Hot Plate Welding | Heating Method: | Electric Heating Tubes |
| High Light: | 30s/Pcs Hot Plate Welding Machine,800KG Hot Plate Welding Machine,380V 50HZ Hot Plate Welder |
||
6000w Large Flow Filter End Cap Welding Machine Hot Plate Welding Machine
Hot-plate welding machine welds plastic parts through a temperature-controlled heating plate. During welding, the heating plate is placed between two plastic parts. When the workpiece is pressed against the heating plate, the plastic begins to melt. After a period of preset heating time, the surface of plastic melt will reach a certain degree, the workpiece separates both sides, the heating plate leaves, then two pieces of workpiece combination together, after the hot plate stops function, let the pressure on for a few seconds, make its solidification molding, forming a strong chain, then achieve the purpose of welding, The welding strength can exceed the strength of raw materials, and the whole welding process is completed.
This is a 6000W large flow filter core end cap welding machine, one machine of the large flow filter core production line, mainly used for the welding of plastic end caps at both ends of the filter core. After welding, the sealing and firmness of the skeleton, membrane, and filter core end cover are effectively guaranteed.
Technical parameters:
| Product Name | Hot Plate Welding Machine For Filter End Cap Welding |
| Power | 6KW |
| Power Supply | 380V 50HZ |
| Air Pressure | 6Kg/c㎡ |
| Heating Accuracy | ±2℃ |
| Temperature | Room ~ 400℃ |
| Welding Speed | About 1 pcs/30s |
| Size | L2000*W1000*H1800 |
| Weight | about 800Kg |
Details of the components:

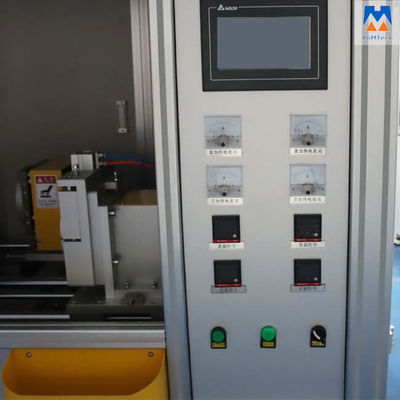

| Touch screen + PLC | Delta from Taiwan |
| Electrical components | LG |
| Temperature controller | Huibang. Omron from Japan |
| Solid-state relay | Ximaden from Japan |
| Guide rail, guide block | Highwin |
| Auxiliary electrical components | Idec from Taiwan or Schneider |
| Pneumatic components | Airtac from Taiwan |
| Protection case | Europe standard aluminum profile and transparent organic glass |
| Spare parts | 45# steel (nickel-plated) |
| Filter core fixture |
#6061 aluminum board (anodized with original color) |
Application:
Applicable products of hot plate welding machine are Musical instrument box, electrical products, auto radiator, kettle, plastic fuel tanks, fuel tanks, and oil pot special welding, bumpers, car dashboard, storage battery, battery, car tail lights, car air inlet pipe, washing machine drum plastic balance ring, laundry, dishwasher, water tank, plastic doors, and Windows, medicine containers and other plastic products and plastic packaging, PP toilet cover, PP plastic tray, PP plastic Material pallet, nut embedding, hot melt riveting point, LED lamp, plastic hot riveting, toy hole ball, deodorant ball, aromatic agent, carburetor, round container, medical container, medical pipe fittings, plastic cardboard, steam iron, foot bath, building template, and other large and complex plastic products.
FAQ:
1. How about the delivery time of the hot plate welder?
15 days, 30-60 days for the customized production line.
2. What's the warranty of the hot plate welder?
One year.
3. Can we agent your hot plate welding machine in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
4. How about payment?
100%T/T in advance for small orders;
5. could you make the hot plate welding machine according to our special application needs?
Of course, we can do that. feel free to tell us your application.

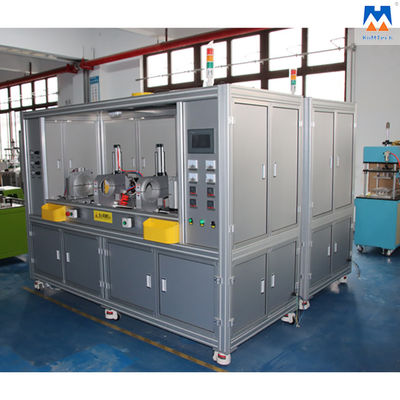

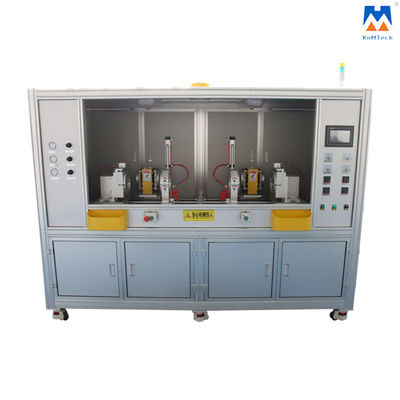

Detailed Photos:
