Product Details:
|
| Product Name: | High Precision Digital Ultrasonic Plastic Welding Machine 15KHz | Frequency: | 15KHz/20KHz/30KHz/35KHz/40KHz |
|---|---|---|---|
| Power: | 3000W,2000W,2500W,1500W,1200W,800W | Triggering Method: | Time |
| Welding Method: | Weld Time/Weld Energy/Grounding Detect | Air Pressure Control: | Proportional Valve |
| Operating Air Method: | Standard | Amplitude Control: | Single Stage Amplitude |
| Pre-press Vibration: | 1) OFF, 2) Pre-vibration Time | Max Working Stroke(mm): | 80mm±1mm |
| High Light: | Ultrasonic Plastic Welder 15KHz,Pneumatic Control Ultrasonic Welding Machine,3kW Ultrasonic Welding Machine |
||

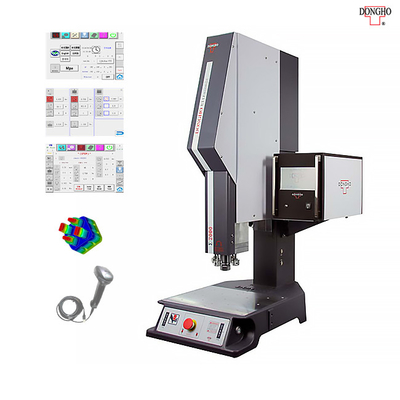

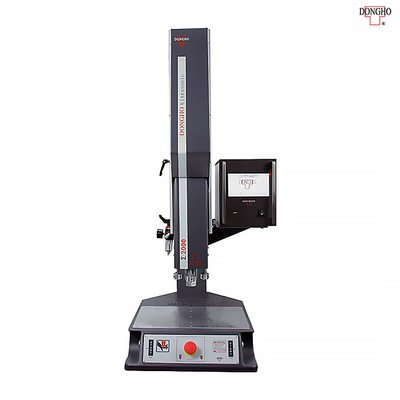

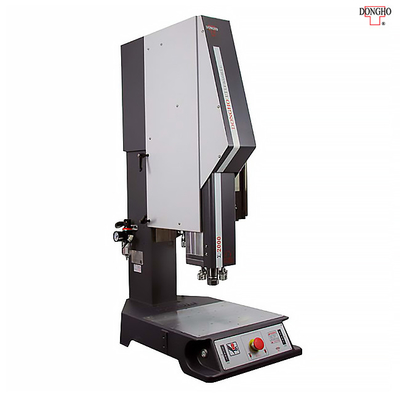

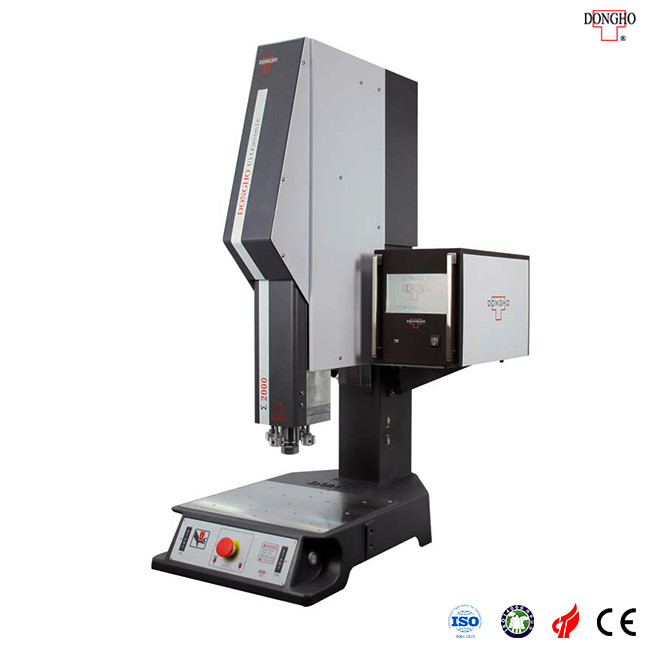

High Precision Digital Ultrasonic Plastic Welding Machine 15KHz With Pneumatic Control
iBA series ultrasonic welding machine is a cost-effective welding machine, which is equipped with the 6 generation iQS operating system, with multi-level password protection, hierarchical authorization function, and a variety of welding modes, digital amplitude setting and amplitude segmentation function, full digital automatic tuning function with storage, welding parameter storage, quality QA diagnostic control. Each iBA welder includes DONGHO proven PROPORTION Valve technology and electronic high performance generators. Rugged equipment with precise guides and mature drive components ensures high quality and repeat welds. Ethernet connectivity, data support for industry 4.0 applications and connectivity to MES systems.
Technical Parameters:
| Model | iBA-F1530e | iBA-F2020e | iBA-F2025e | iBA-F3015e | iBA-F3512e | iBA-F4008e |
| Specification | ||||||
| Frequency | 15KHz | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 3000W | 2000W | 2500W | 1500W | 1200W | 800W |
| Triggering Method | Time | |||||
| Welding Method | Weld time/Weld energy/Grounding detect | |||||
| Air pressure control | proportional valve | |||||
| Operating air method | Standard | |||||
| Amplitude control | Single stage amplitude | |||||
| Pre-press vibration | 1) OFF, 2) pre-vibration time | |||||
| Max Working Stroke(mm) | 80mm±1mm | |||||
| Max Welding Time | 5 seconds | |||||
| Voltage(V) | AC220V±5% 50/60Hz | |||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection
|
|||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | ||||
| Weight(kg) | 106kg | 75kg | ||||
Features:

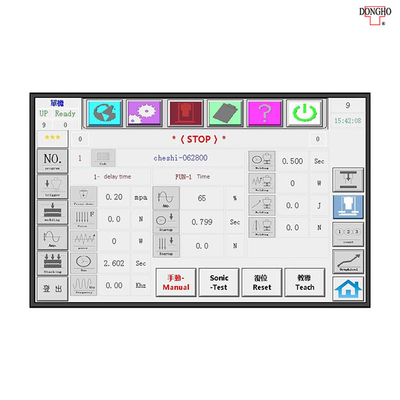

* The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
* New type electronic pressure-measuring device
* Welding parameters saving in USB, QA quality diagnosis and control
* Digital amplitude setting and amplitude segmentation
* Clearance offset function, and double-feedback control structure
* PropControl (Proportion Valve Technology)
* UTC220 high-speed control for enhancement of track precision, real-time data application with MES system
* Fully digital and auto tuning functions with saving function
* Built-in scanning gun port ( supporting four brands) is equipped for data tracing.
