Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine 20KHz | Frequency: | 15KHz,20KHz,30KHz,35KHz,40KHz |
|---|---|---|---|
| Power: | 3000W,2000W,2500W,1500W,1200W,800W | Triggering Method: | Time |
| Welding Method: | Weld Time/Weld Energy/Grounding Detect | Air Pressure Control: | Proportional Valve |
| Operating Air Method: | Standard | Amplitude Control: | Single Stage Amplitude |
| Pre-press Vibration: | 1) OFF, 2) Pre-vibration Time | Max Working Stroke(mm): | 80mm±1mm |
| High Light: | Pneumatic 20khz Ultrasonic Welding Machine,Ultrasonic Plastic Welding Machine Pneumatic Control,Plastic 20khz Ultrasonic Welding Machine |
||

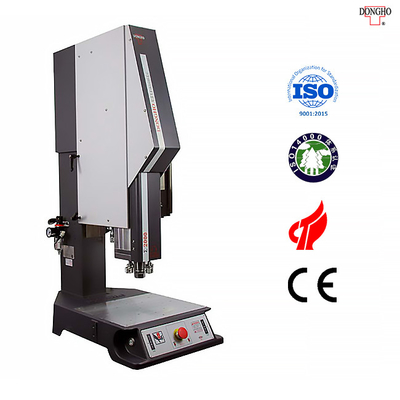

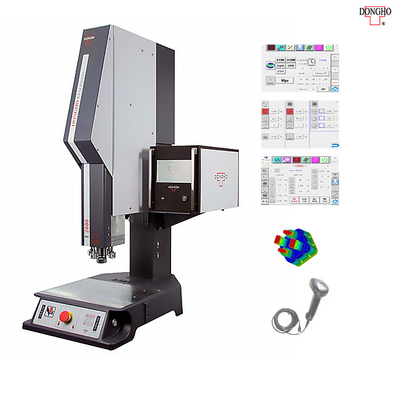

Ultrasonic Plastic Welding Machine 20KHz High Precision With Pneumatic Control System

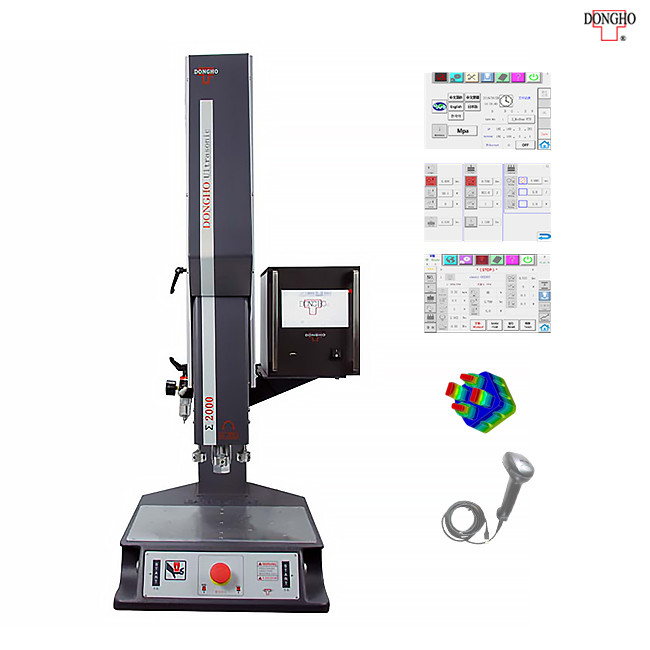

iBA series ultrasonic welding machine sets ultrasonic digital generator and controller, complete ultrasonic welding equipment for welding press. Each machine contains DONGHO verified PROPORTION Valve technology, robust equipment with accurate guide rails, and mature driving components, to ensure high quality and repeat welding. UTC220 high-speed control, real-time data application to improve trajectory accuracy, MES system, built-in support for four brands of scanning guns, data traceability.
Technical parameters:
| Model | iBA-F1530e | iBA-F2020e | iBA-F2025e | iBA-F3015e | iBA-F3512e | iBA-F4008e |
| Specification | ||||||
| Frequency | 15KHz | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 3000W | 2000W | 2500W | 1500W | 1200W | 800W |
| Triggering Method | Time | |||||
| Welding Method | Weld time/Weld energy/Grounding detect | |||||
| Air pressure control | proportional valve | |||||
| Operating air method | Standard | |||||
| Amplitude control | Single-stage amplitude | |||||
| Pre-press vibration | 1) off, 2) pre-vibration time | |||||
| Max Working Stroke(mm) | 80mm±1mm | |||||
| Max Welding Time | 5 seconds | |||||
| Voltage(V) | AC220V±5% 50/60Hz | |||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection
|
|||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | ||||
| Weight(kg) | 106kg | 75kg | ||||
Accessory Expansion of The Ultrasonic Welding Machine:
● Noise insulation shield
● Automatic film winding device
● Auxiliary fixture *2
● Safety curtain for protection
FAQ:
1. What's your MOQ?
One Unit
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 10 days, while for big orders, 30-60 days is needed.
3. What's the warranty of your products?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by the wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with the charge at the cost price.
