Product Details:
|
| Product Name: | Ultrasonic Plastic Vibration Welding Machine | Air Pressure Control: | Proportional Valve |
|---|---|---|---|
| Operating Air Method: | Standard/Multi-stage | Amplitude Control: | Single Stage Amplitude/stepping Amplitude |
| Welding Stacking Function: | Time/Energy/Pressure | Max Welding Time: | 5 Seconds |
| Triggering Method: | Time,Pressure,Power | Welding Method: | Welding Time/Welding Energy/Peak Power/Grounding Detect |
| Frequency: | 20KHz,30KHz,35KHz,40KHz Available | Power: | 800W-3000W |
| High Light: | Vibration Welding Machine,Ultrasonic Welding For Plastic Parts,Ultrasonic Welding Machine 30kHz |
||

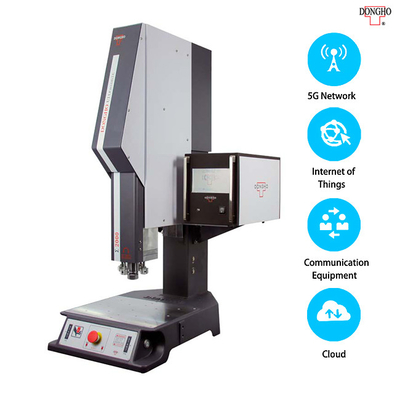

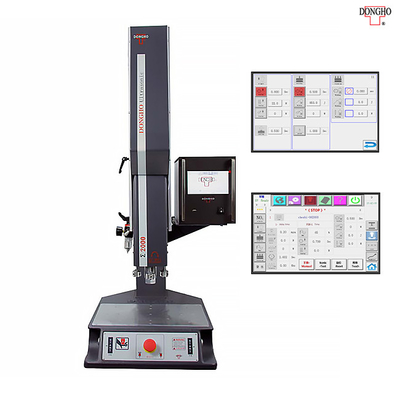

Each equipment of iBA series ultrasonic welding machine includes Dongho verified PROPORTION Valve technology and digital electronic high-performance generator, 20KHz,35KHz,40KHz optional, Digital ultrasonic generator can accurately adjust parameters with stable output.
Digital amplitude setting and amplitude segmentalized control and various welding mode requirements, standard with four types of scanning gun drive, RS485/RS232 data real-time communication. With automation 4.0. IBA series rack is a full series of modular design, gravity manufacturing. High strength steel structure, motor lift frame, electronic program control setting pressure. The iBA series ultrasonic plastic welders have powerful functions to obtain a unique effect, meet the needs of various products and promote the user's production efficiency.
Technical parameters:
| Model | iBA-A2025e | iBA-A2030e | iBA-A3015e | iBA-A3512e | iBA-A4008e |
| Specification | |||||
| Frequency | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 2500W | 3000W | 1500W | 1200W | 800W |
| Triggering Method | Time, Pressure, Power | ||||
| Welding Method | Welding time/Welding energy/Peak power/Grounding detect | ||||
| Air pressure control | proportional valve | ||||
| Operating air method | Standard/multi-stage | ||||
| Amplitude control | Single-stage amplitude/stepping amplitude | ||||
| Pre-press vibration | 1) OFF, 2) pre-vibration time | ||||
| Welding stacking function | Time/Energy/Pressure | ||||
| Max Working Stroke(mm) | Φ63*80mm±1mm | Φ50*80mm±1mm | Φ40*80mm±1mm | ||
| Max Welding Time | 5 seconds | ||||
| Voltage(V) | AC220V±5% 50/60Hz | ||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection |
||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | |||
| Weight(kg) | 106kg | 75kg | |||
* PropControl(proportion valve):Proportion valve technology;
* UTC220 high-speed control, for enhancement of track precision and real-time data application, and MES system.

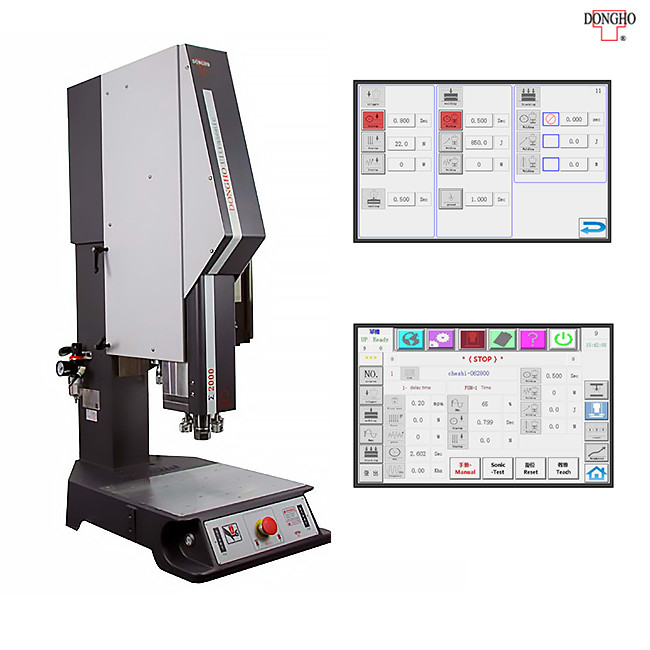

* The 6th generation iQS operating system, multi-level password protection for hierarchical authorizations
* New type electronic pressure-measuring device
* Welding parameters saving in USB, QA quality diagnosis, and control
* Digital amplitude setting and amplitude segmentation
* Clearance offset function, and double-feedback control structure
* Fully digital and auto-tuning functions with saving function
* Built-in scanning gun port ( supporting four brands) is equipped for data tracing.
