Product Details:
|
| Product Name: | Meterbox Welding Machine With Ultrasonic System | Power: | 4000W |
|---|---|---|---|
| Frequency: | 15KHz | Work Stroke: | 100MM |
| Voltage: | 220V+-10% | Air Source: | 2kgf-8kgf |
| After-sales Service Provided: | Video Technical Support,Online Support | Warranty: | One Year For The Machine |
| High Light: | 8kgf Ultrasonic Welding Machines,4000W Ultrasonic Welding Machines,15khz ultrasonic welding system |
||

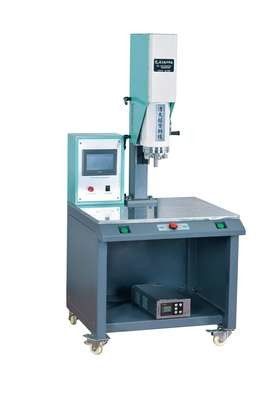

15khz Meterbox Backcover Welding Machine With Ultrasonic System

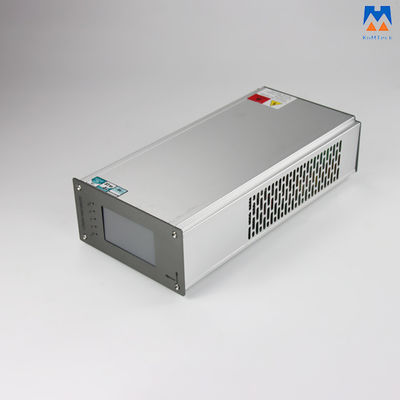

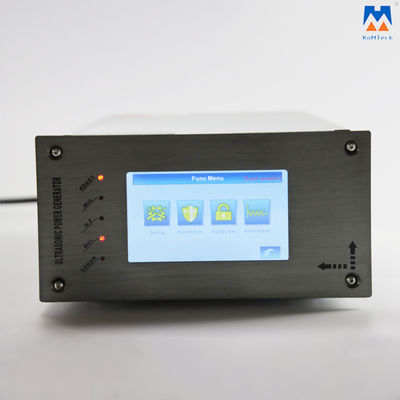

The 15khz meter box back-cover welding machine is a heavy, rigid press with a square pillar for precise and stable welding of plastic parts. The 15khz meter box back-cover welding machine is easy to operate. It has a digital ultrasonic system with PLC control.
The principle of ultrasonic plastic welding:
The ultrasonic energy is transferred to the welding area through the upper welding parts, and the interface of the two welding plastic produces high-speed friction heat generation, and the local temperature rises. And because of the poor thermal conductivity of plastic, the plastic can not timely heat dissipation, gathered in the welding area, resulting in the rapid melting of the contact surface of the two plastics, under a certain pressure, so that fusion into one. When the ultrasonic wave of the plastic box welding machine stops acting, let the pressure continue, there is some pressure holding time so that the welded plastic part solidifies and forms.
Technical parameters:
| Frequency | Power | Work Stroke | Voltage | Air source |
| 15kHz | 4000w | 100MM | 220V+-10% | 2kgf-8kgf |
| 20kHz | 3000w | 75MM | 220V+-10% |
Features:
| Real-time frequency automatic tracking function. |
| Welding modes: time, energy, and grounding. |
| Amplitude division function. |
| Welding amplitude 10-100% adjustable (1% accuracy) |
| Amplitude compensation function. |
| Mold impedance analysis+protection |
| Overload protection. |
| Voltage protection (input) |
| Transducer voltage protection |
| Quality management (time and energy) |
| Welding record (operation statistics) |
| Powerful, high quality, stable welding results. |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. Can we agent your ultrasonic welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for the long business term.
